LC1D09BL

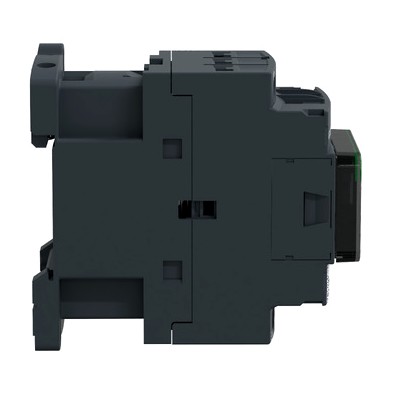

Schneider Electric LC1D09BL TeSys Deca contactor 9 A AC-3/3e 3P with 24 V DC low consumption coil. The Schneider Electric LC1D09BL TeSys Deca contactor is a robust and efficient solution for reliable motor and load switching within industrial control panels. This three-pole (3P) IEC power contactor features a rated operational current of 9 A for AC-3 applications up to 440 V, making it ideal for controlling motors up to 4 kW at 380/400 V AC. It is equipped with a 24 V DC low consumption coil, complete with a built-in bidirectional peak limiting diode suppressor, ensuring precise and energy-efficient control. The LC1D09BL offers versatile usage across AC-1, AC-3, AC-3e, and AC-4 utilisation categories, with secure screw clamp terminals for both power and control circuits. Its IP20 front face protection and wide ambient operating temperature range of -40 to 60 °C ensure dependable performance in diverse environments. With 3 NO main poles and an integrated 1 NO + 1 NC auxiliary contact, this Schneider Electric contactor provides essential signalling capabilities. This unit is perfectly suited for critical applications in various Egyptian and Gulf industries, including cement production, oil and gas, water treatment, food and beverage processing, textiles, and building services. For comprehensive project support and competitive pricing, please request a quote.
Details
- Brand: Schneider Electric
- Part number: LC1D09BL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09E7 Contactor, 9A AC-3, 3P, 48V AC 50/60Hz Coil
- TeSys Deca LC1D09ED contactor 9A AC-3 3P with 48V DC coil
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
- TeSys Deca LC1D12BD contactor 12A AC-3 3P 24V DC coil
Specifications
- Terminals
- Screw clamp terminals
- Net Weight
- 0.48 Kg
- Coil Technology
- Built-in bidirectional peak limiting diode suppressor
- Poles description
- 3P
- Control Circuit Type
- DC low consumption
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Mechanical Durability
- 30 Mcycles
- Dimensions (H x W x D)
- 77 x 45 x 95 Mm
- Control Circuit Voltage
- 24 V DC
- IP Degree of Protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D09BL
- Pole Contact Composition
- 3 NO
- Electrical Durability (AC-3)
- 2 Mcycles 9 A at Ue <= 440 V
- Motor Power (AC-3, 380/400V)
- 4 KW at 380/400 V AC 50/60 Hz
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Rated Operational Current (AC-1)
- 25 A (at <60 °C) at <= 440 V AC
- Rated Operational Current (AC-3)
- 9 A (at <60 °C) at <= 440 V AC
- Permissible Ambient Air Temperature
- -40…60 °C
- Rated Operational Voltage (Power Circuit)
- <= 690 V AC 25...400 Hz, <= 300 V DC
