LC1D09F7

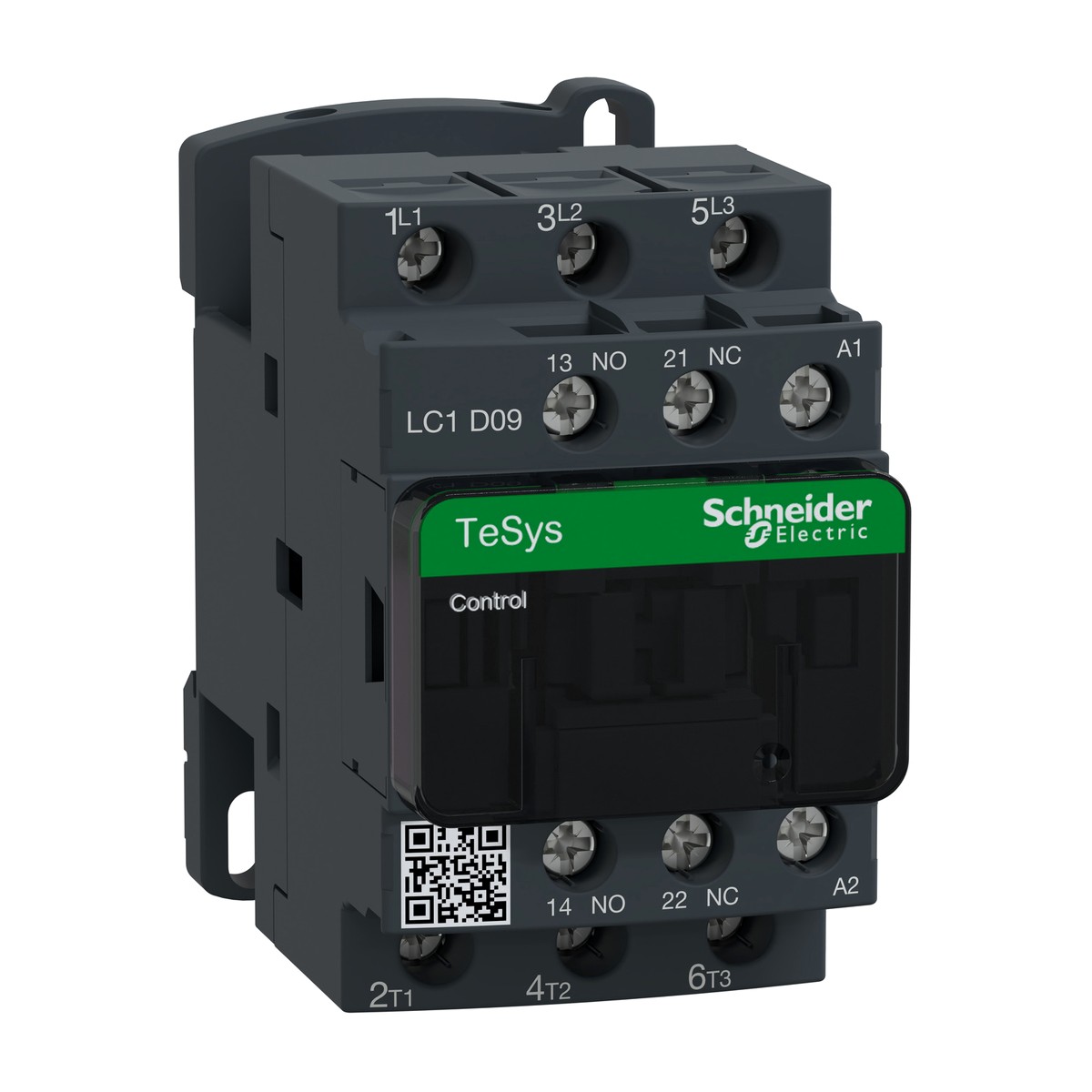

Schneider Electric LC1D09F7 TeSys D contactor 9 A AC-3 3P with 110 V AC coil. The Schneider Electric LC1D09F7 is a robust TeSys D series 3-pole IEC power contactor, engineered for reliable motor control and switching of resistive loads in industrial panels. Featuring a 9 A AC-3 rated operational current at <= 440 V AC, this contactor is ideally suited for applications requiring up to 4 kW motor power at 380-400 V AC 50/60 Hz. Its control circuit operates on a 110 V AC 50/60 Hz coil, making it versatile for various control system designs. The LC1D09F7 comes equipped with 1 NO + 1 NC auxiliary contacts, offering flexibility for signalling and interlocking circuits. Built to international standards including IEC 60947-4-1 and UL 508, and holding certifications from CCC, UL, and CSA, it assures global quality and compliance. This contactor is frequently deployed in demanding environments across Egypt and the Gulf, including cement production, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and critical building services. Its compact design, suitable for both rail and plate mounting, ensures easy integration into new or existing electrical enclosures. For precise power switching solutions, request a quote for the Schneider Electric LC1D09F7.
Details
- Brand: Schneider Electric
- Part number: LC1D09F7
- Series: TeSys D
- Category: Contactor
Related Schneider Electric parts
- TeSys D contactor LC1D09FE7 9 A AC-3 3P with 115 V AC coil
- Schneider Electric LC1D115M7 — TeSys D Contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC coil
- Schneider Electric LC1D65M7 — TeSys D Contactor LC1D 600VAC 65AMP IEC +OPTIONS
- Schneider Electric LC1D12M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 220 V AC coil
- Schneider Electric LC1D18M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 220 V AC coil
- Schneider Electric LC1D25M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 220 V AC coil
- TeSys D LC1D09M7 3-pole contactor 9 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LC1D40AM7 3-pole contactor 40 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LC1D65AM7 3-pole contactor 65 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LRD22 thermal overload relay 16-24 A class 10A, 1 NO + 1 NC
- TeSys D LRD32 thermal overload relay 23-32 A class 10A, 1 NO + 1 NC
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
Specifications
- Depth
- 86 mm
- Width
- 45 mm
- Height
- 77 mm
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Motor power kW
- 4 kW at 380...400 V AC 50/60 Hz AC-3
- Product weight
- 0.32 kg
- Mounting support
- Rail, Plate
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-4, AC-1, AC-3
- Product certifications
- CCC, RINA, LROS (Lloyds register of shipping), CSA, UL, DNV, GL, GOST, BV
- Rated breaking capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D09F7
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 110 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- <= 690 V AC 25...400 Hz for power circuit
- Ambient air temperature for operation
- -5...60 °C
- [Ith] conventional free air thermal current
- 25 A at <= 60 °C for power circuit
