LC1D25M7

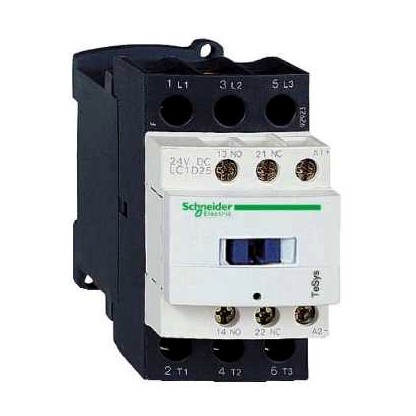

Schneider Electric LC1D25M7 TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 220 V AC coil. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Details
- Brand: Schneider Electric
- Part number: LC1D25M7
- Series: TeSys D
- Category: Contactor
Related Schneider Electric parts
- TeSys D LC1D09M7 3-pole contactor 9 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LC1D40AM7 3-pole contactor 40 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LC1D65AM7 3-pole contactor 65 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LRD22 thermal overload relay 16-24 A class 10A, 1 NO + 1 NC
- TeSys D LRD32 thermal overload relay 23-32 A class 10A, 1 NO + 1 NC
- Schneider Electric LC1D09F7 — TeSys D contactor 9 A AC-3 3P with 110 V AC coil
- TeSys D contactor LC1D09FE7 9 A AC-3 3P with 115 V AC coil
- Schneider Electric LC1D115M7 — TeSys D Contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC coil
- Schneider Electric LC1D65M7 — TeSys D Contactor LC1D 600VAC 65AMP IEC +OPTIONS
- Schneider Electric LC1D12M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 220 V AC coil
- Schneider Electric LC1D18M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 220 V AC coil
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
Specifications
- Poles
- 3P
- Control circuit voltage
- 220 V AC
- Manufacturer part number
- LC1D25M7
- Rated operational voltage
- <= 690 V AC
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current (AC-3)
- 25 A
