LC1D65AM7

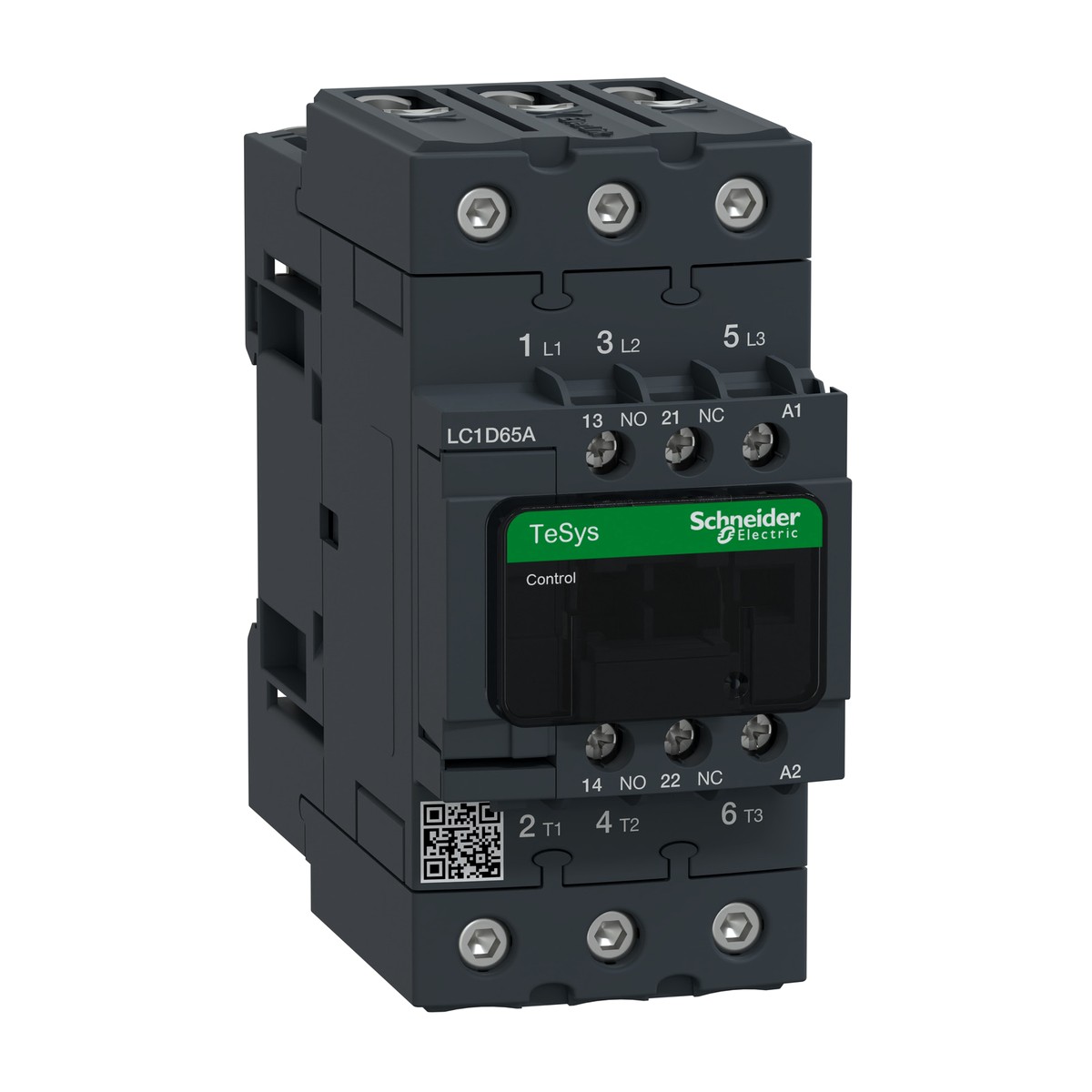

Schneider Electric LC1D65AM7 TeSys D 3-pole contactor 65 A AC-3 with 220 V AC 50/60 Hz coil. The Schneider Electric LC1D65AM7 is a 3-pole TeSys Deca (TeSys D) power contactor with three normally open main poles, rated 65 A in utilisation category AC-3 at up to 440 V AC and driven by a 220 V AC 50/60 Hz control coil. In AC-3 duty the LC1D65AM7 switches three-phase motors of 30 KW at 380/400 V AC and 18.5 KW at 220/230 V AC, and it includes a built-in 1 NO + 1 NC auxiliary contact block, a mirror contact to IEC 60947-4-1 and screw clamp terminals for plate or DIN rail mounting. It is built to IEC/EN 60947-4-1 and IEC/EN 60947-5-1 with 690 V rated insulation, 6 kV rated impulse withstand and IP20 front-face protection. Panel builders and maintenance teams in cement, oil and gas, petrochemical, water treatment, food and beverage, textile and building services plants use this Schneider Electric contactor for direct-on-line and reversing motor starters, pump and fan control and general power switching.
Details
- Brand: Schneider Electric
- Part number: LC1D65AM7
- Series: TeSys D
- Category: Contactor
Related Schneider Electric parts
- TeSys D LRD22 thermal overload relay 16-24 A class 10A, 1 NO + 1 NC
- TeSys D LRD32 thermal overload relay 23-32 A class 10A, 1 NO + 1 NC
- Schneider Electric LC1D09F7 — TeSys D contactor 9 A AC-3 3P with 110 V AC coil
- TeSys D contactor LC1D09FE7 9 A AC-3 3P with 115 V AC coil
- Schneider Electric LC1D115M7 — TeSys D Contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC coil
- Schneider Electric LC1D65M7 — TeSys D Contactor LC1D 600VAC 65AMP IEC +OPTIONS
- Schneider Electric LC1D12M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 220 V AC coil
- Schneider Electric LC1D18M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 220 V AC coil
- Schneider Electric LC1D25M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 220 V AC coil
- TeSys D LC1D09M7 3-pole contactor 9 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys D LC1D40AM7 3-pole contactor 40 A AC-3 with 220 V AC 50/60 Hz coil
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
Specifications
- Depth
- 120 mm
- Width
- 55 mm
- Height
- 122 mm
- Standards
- IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, UL 60947-4-1, CSA C22.2 No 14
- Net weight
- 0.86 Kg
- Operating time
- 12...26 ms closing; 4...19 ms opening
- Mounting support
- Plate / Rail
- Range of product
- TeSys Deca
- Device short name
- LC1D
- Poles description
- 3P
- Inrush power in VA
- 160 VA 50 Hz cos phi 0.75 (at 20 °C)
- Control circuit type
- AC at 50/60 Hz standard
- Utilisation category
- AC-1 / AC-3 / AC-3e / AC-4
- Mechanical durability
- 6 Mcycles
- Motor power kW (AC-3)
- 30 KW at 380/400 V AC 50/60 Hz (AC-3); 18.5 KW at 220/230 V AC 50/60 Hz (AC-3)
- Maximum operating rate
- 3600 Cyc/H at 60 °C
- Connections - terminals
- Power circuit: screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D65AM7
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC
- Hold-in power consumption in VA
- 15 VA 50 Hz cos phi 0.3 (at 20 °C)
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947
- [Ith] conventional free air thermal current
- 80 A (at 60 °C) for power circuit
