LC1D09B7

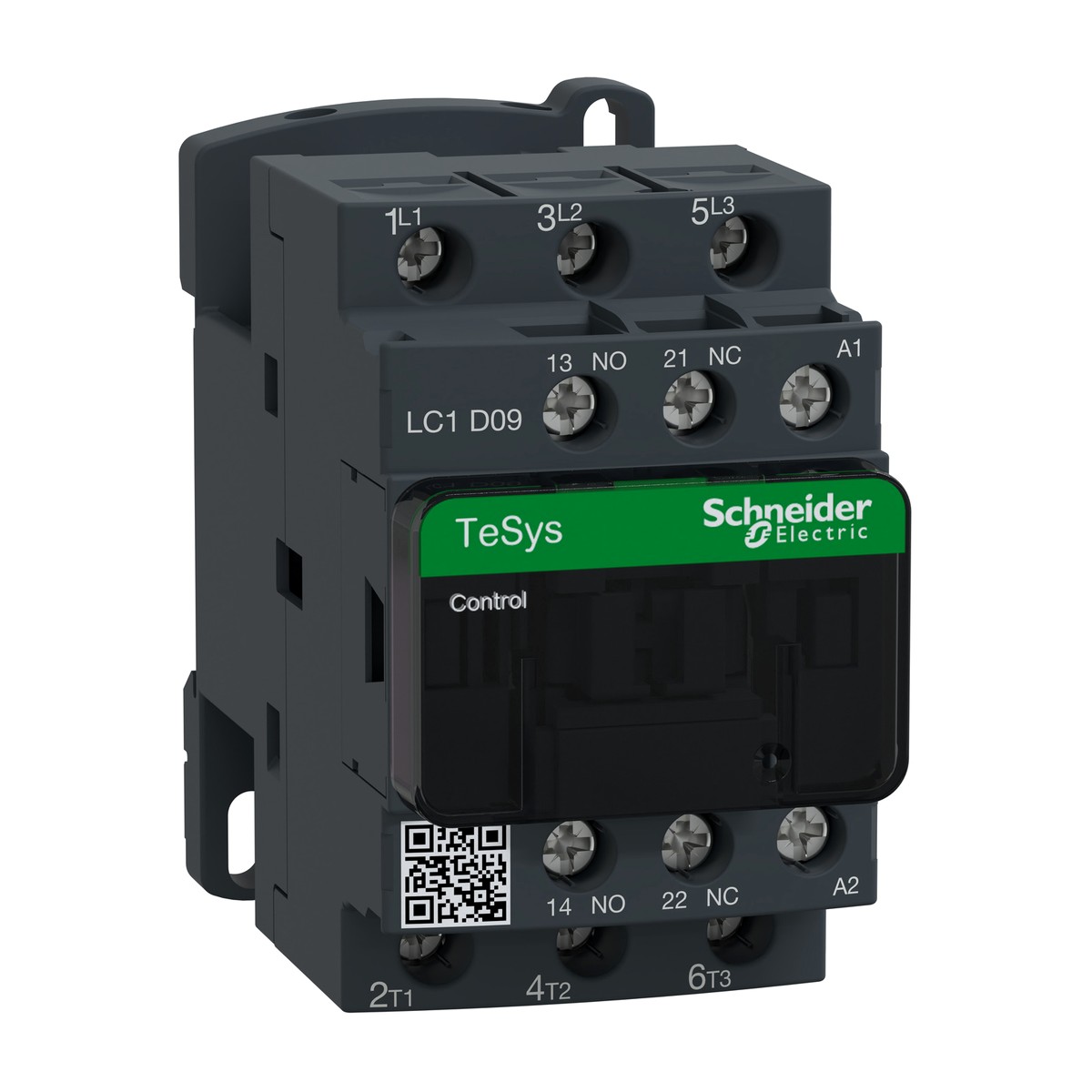

Schneider Electric LC1D09B7 TeSys Deca contactor 9 A AC-3 3P with 24 V AC 50/60 Hz coil. The Schneider Electric TeSys Deca LC1D09B7 contactor is a robust three-pole IEC power contactor engineered for efficient motor and resistive load switching within industrial panels. This reliable component features a 9A AC-3 rated operational current at up to 440V AC and is controlled by a versatile 24V AC 50/60Hz coil, making it suitable for a wide range of control systems. Designed with convenient screw clamp terminals for secure wiring, the LC1D09B7 boasts an IP20 front face protection, ensuring durability in various environments. It offers an impressive electrical durability of 2 Mcycles at 9A AC-3 and a mechanical durability of 15 Mcycles. This contactor is ideal for critical applications across Egypt and the Gulf, including motor control in cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textile manufacturing, and building services. Its 4 kW power rating at 380/400 V AC (AC-3) makes it a versatile solution for common industrial motor sizes. Certified to international standards, the LC1D09B7 delivers trusted performance.
Details
- Brand: Schneider Electric
- Part number: LC1D09B7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09BD contactor 9 A AC-3 3P with 24 V DC coil
- Schneider Electric TeSys Deca LC1D09BL contactor 9 A AC-3/3e 3P with 24 V DC low consumption coil
- TeSys Deca LC1D09E7 Contactor, 9A AC-3, 3P, 48V AC 50/60Hz Coil
- TeSys Deca LC1D09ED contactor 9A AC-3 3P with 48V DC coil
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
Specifications
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 2 Mcycles 9 A AC-3 at Ue <= 440 V
- Mechanical durability
- 15 Mcycles
- Motor power kW (AC-3)
- 4 KW at 380/400 V AC 50/60 Hz
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D09B7
- Pole contact composition
- 3 NO
- Irms rated making capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Tightening torque (Power circuit)
- 1.7 N.m
- Connections - terminals (Power circuit)
- screw clamp terminals
- Connections - terminals (Control circuit)
- screw clamp terminals
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device
- -40…60 °C
