LC1D80F7

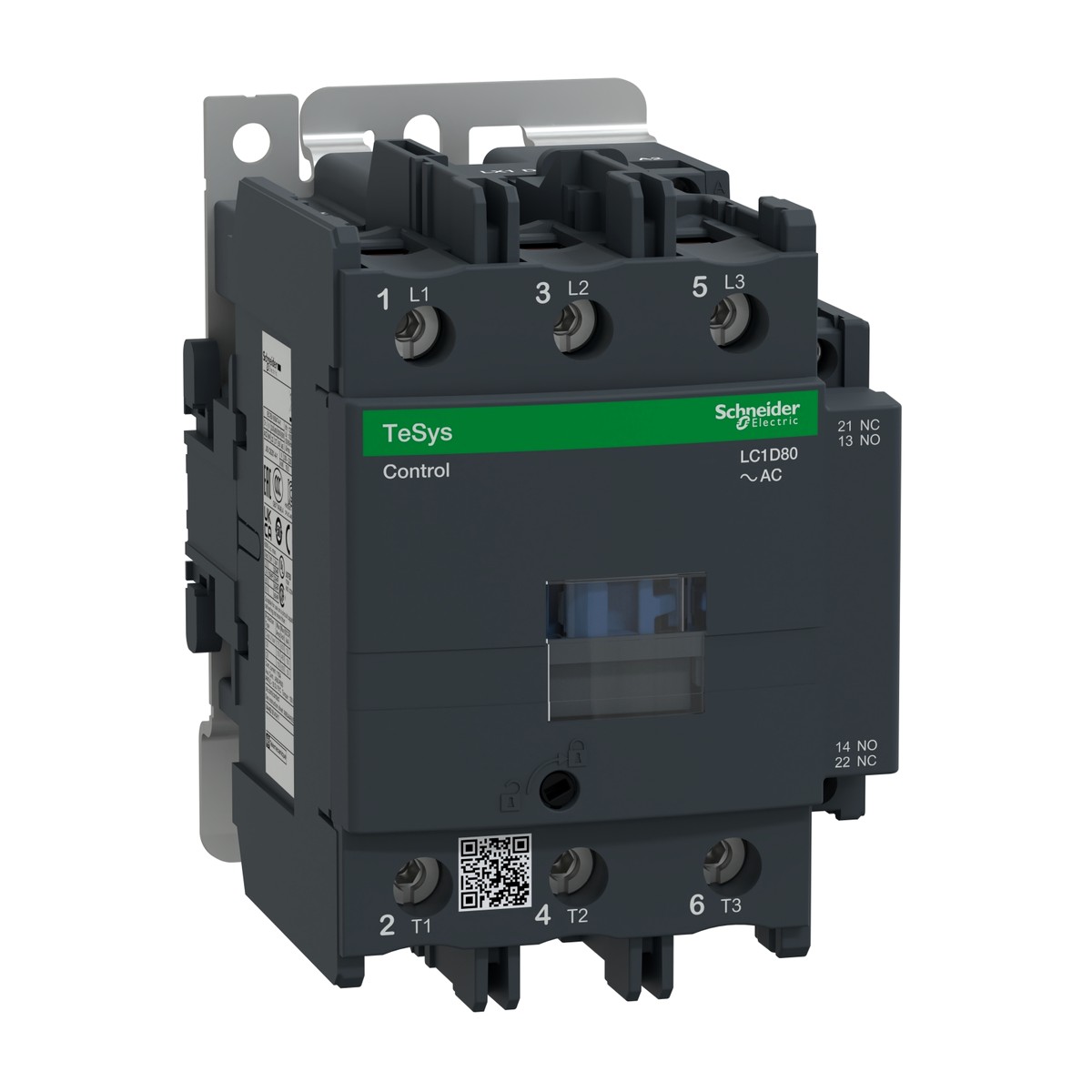

Schneider Electric LC1D80F7 TeSys Deca contactor 80 A AC-3 3P with 110 V AC 50/60Hz coil. The Schneider Electric TeSys Deca LC1D80F7 is a high-performance 3-pole IEC power contactor designed for robust motor control and resistive load switching in diverse industrial panels. Engineered for reliability, this LC1D80F7 model boasts an 80 A (at <60 °C) rated operational current at <= 440 V AC for AC-3/AC-3e applications, making it ideal for a wide range of machinery. Its 110 V AC 50/60 Hz control circuit voltage ensures compatibility with standard industrial control systems, particularly in regions like Egypt and the Gulf where this voltage is prevalent. Featuring secure power circuit connectors and control circuit screw clamp terminals, and an IP20 front face protection, the LC1D80F7 ensures straightforward installation and enhanced safety. This contactor is a crucial component in critical infrastructure and industrial sectors such as cement production, oil and gas, water treatment facilities, food and beverage processing, textile manufacturing, and various building services applications. With a mechanical durability of 4 Mcycles and electrical durability of 1.5 Mcycles at 80 A AC-3 (<= 440 V), it offers extended operational life. For dependable motor and load switching solutions, the Schneider Electric LC1D80F7 contactor delivers consistent performance.
Details
- Brand: Schneider Electric
- Part number: LC1D80F7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80FD contactor 80A AC-3 3P with 110V DC coil
- TeSys Deca LC1D80FE7 contactor 80 A AC-3/AC-3e 3P with 115V AC 50/60Hz coil
- TeSys Deca LC1D80M7 contactor 80 A AC-3 3P with 220 V AC coil
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
Specifications
- Motor power kW
- 45 KW at 415-440 V AC 50/60 Hz (AC-3)
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Contactor application
- Motor control, Resistive load
- Electrical durability
- 1.5 Mcycles 80 A AC-3 at Ue <= 440 V
- Mechanical durability
- 4 Mcycles
- Connections - terminals
- Power circuit: connector; Control circuit: screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D80F7
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 110 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
