LC1D80V7

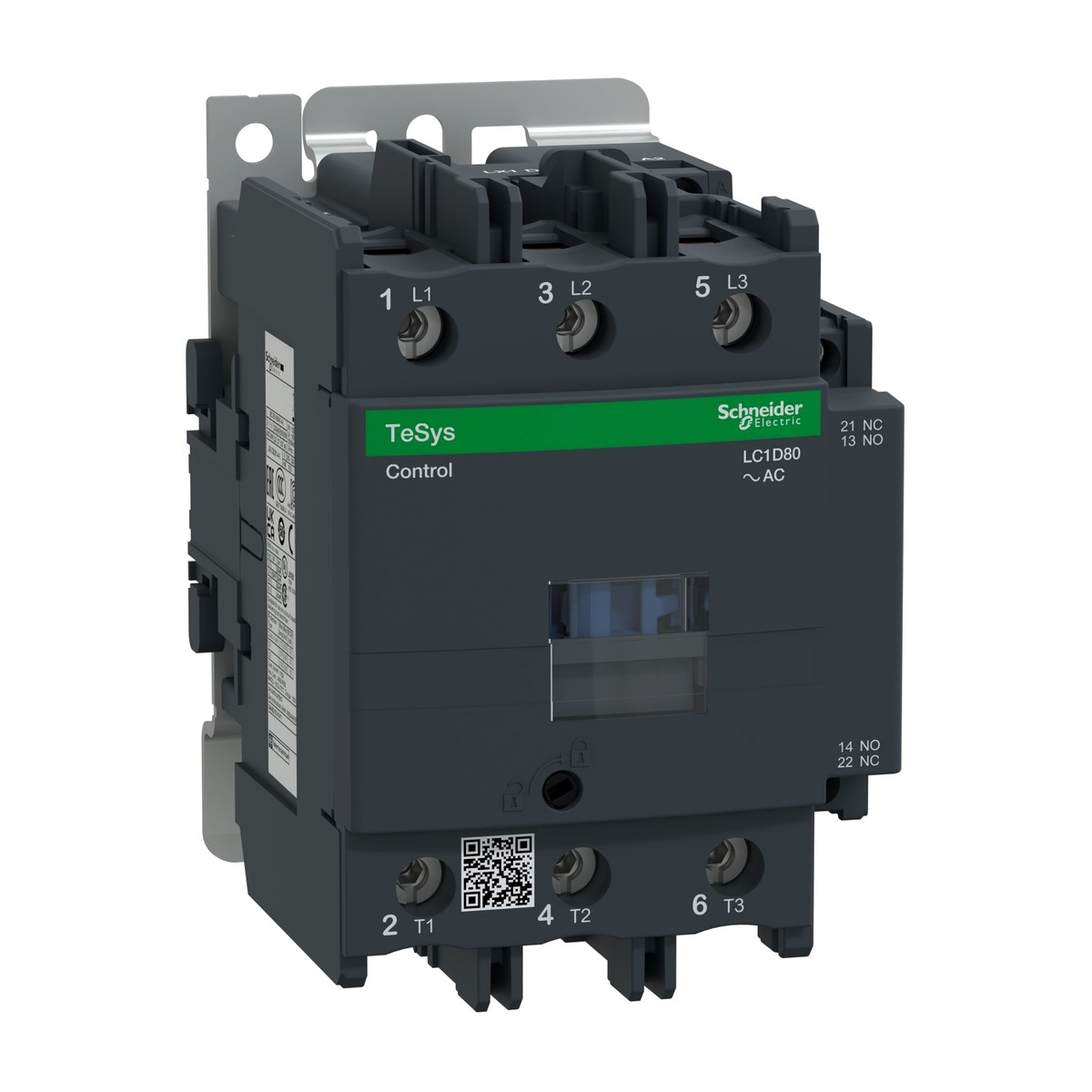

Schneider Electric LC1D80V7 TeSys Deca Contactor 3P 80A AC-3/AC-3e 400V AC coil. The Schneider Electric LC1D80V7 contactor, part of the reliable TeSys Deca range, is a robust three-pole IEC power contactor designed for efficient motor control and resistive load switching in diverse industrial panels. Engineered for high performance, it boasts an 80A AC-3/AC-3e rated operational current at <= 440V AC, perfectly suited for 380-415V AC power systems prevalent in Egypt and the Gulf. Featuring a versatile 400V AC 50/60Hz control coil and convenient screw clamp terminals, the LC1D80V7 ensures dependable operation. This contactor is an essential component for critical applications such as pumps, fans, and compressors across industries including cement, oil and gas, water treatment, food and beverage, textiles, and building services. With a mechanical durability of 4 Mcycles and electrical durability of 1.5 Mcycles at 80A AC-3, it guarantees long-term reliability.
Details
- Brand: Schneider Electric
- Part number: LC1D80V7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D95M7 contactor 95 A AC-3 3P with 220 V AC 50/60Hz coil
- TeSys Deca LC1D95MD contactor, 3P 95A AC-3/AC-3e, 220V DC coil
- TeSys Deca LC1D95N7 contactor 95 A AC-3 3P with 415 V AC 50/60Hz coil
- TeSys Deca LC1D95P7 contactor 95A AC-3 3P with 230V AC coil
Specifications
- Depth
- 130 mm
- Width
- 85 mm
- Height
- 127 mm
- Terminals
- screw clamp terminals
- Net weight
- 1.59 Kg
- Motor power kW
- 37 KW at 380...400 V AC 50/60 Hz (AC-3)
- Device short name
- LC1D
- Poles description
- 3P (3NO)
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Contactor application
- Motor control, Resistive load
- Electrical durability
- 1.5 Mcycles 80 A AC-3 at Ue <= 440 V
- Mechanical durability
- 4 Mcycles
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D80V7
- [Uc] control circuit voltage
- 400 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
