LC1D95P7

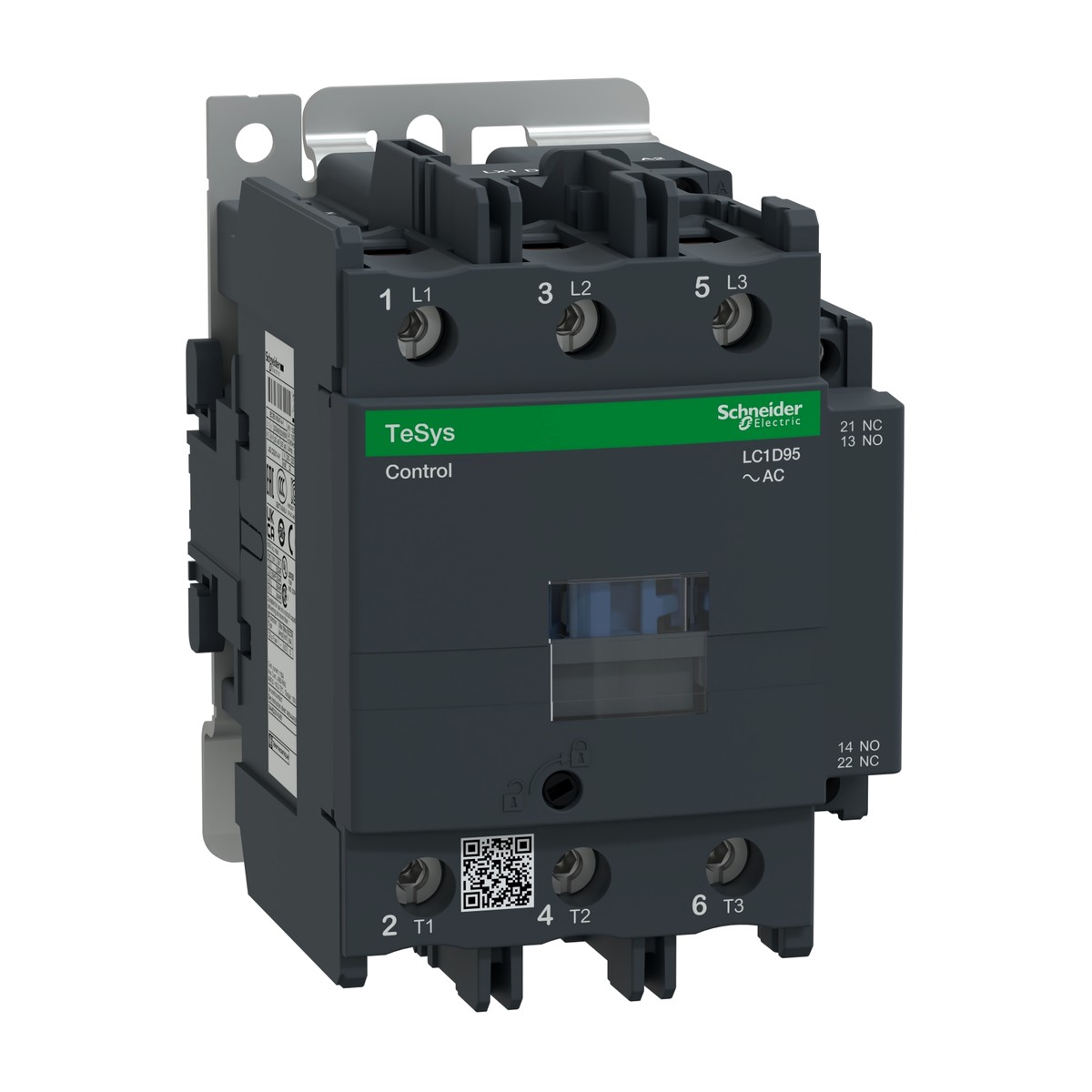

Schneider Electric LC1D95P7 TeSys Deca contactor 95A AC-3 3P with 230V AC coil. The Schneider Electric LC1D95P7 is a robust TeSys Deca 3-pole IEC power contactor designed for reliable motor and load switching in industrial control panels. Engineered for demanding applications, this contactor features a rated operational current of 95 A under AC-3 conditions at up to 440 V, and supports AC-3e, AC-1, and AC-4 utilisation categories. Its versatile 230 V AC 50/60 Hz coil ensures broad compatibility with standard control systems in the Egypt and Gulf regions. Power connections are facilitated by sturdy connectors (4-50 mm²), while control circuits use reliable screw clamp terminals (1-4 mm²). With a motor power rating of 45 KW at 380-400 V AC 50 Hz (AC-3), the LC1D95P7 is ideal for heavy-duty motor control and resistive load applications across diverse sectors such as cement, oil and gas, water treatment, food and beverage, textiles, and building services. It includes a 1 NO + 1 NC auxiliary contact for enhanced system integration and boasts an IP20 front face. For dependable performance, the Schneider Electric LC1D95P7 offers high mechanical durability of 4 Mcycles.
Details
- Brand: Schneider Electric
- Part number: LC1D95P7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D95Q7 contactor 95A AC-3 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D95U7 Contactor, 3P 95A AC-3/AC-3e with 240V AC Coil
- TeSys Deca LC1D95V7 contactor 95A AC-3 3P with 400V AC 50/60Hz coil
- Schneider Electric LRD01 — Thermal Overload Relay, 690V AC, 0.1-0.16A, 1NO+1NC, Class 10A, Screw Clamp
- Schneider Electric LRD02 — TeSys Deca Thermal Overload Relay 0.16-0.25A 1NO+1NC Class 10A
- TeSys Deca LRD04 thermal overload relay 0.4-0.63A 1NO+1NC Class 10A screw clamp
- Schneider Electric LRD05 — TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A
- TeSys Deca LRD06 Thermal Overload Relay 1-1.6A Class 10A
- Schneider Electric LRD08 — TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
Specifications
- Net weight
- 1.61 Kg
- Motor power kW
- 45 KW at 380...400 V AC 50 Hz (AC-3)
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Electrical durability
- 1.2 Mcycles 95 A AC-3
- Mechanical durability
- 4 Mcycles
- Connections - terminals
- Power circuit: connector 1 4…50 mm²; Control circuit: screw clamp terminals 1 1…4 mm²
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 1100 A at 440 V AC for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D95P7
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit
- Permissible ambient air temperature around the device
- -40…60 °C
