LC1D95BD

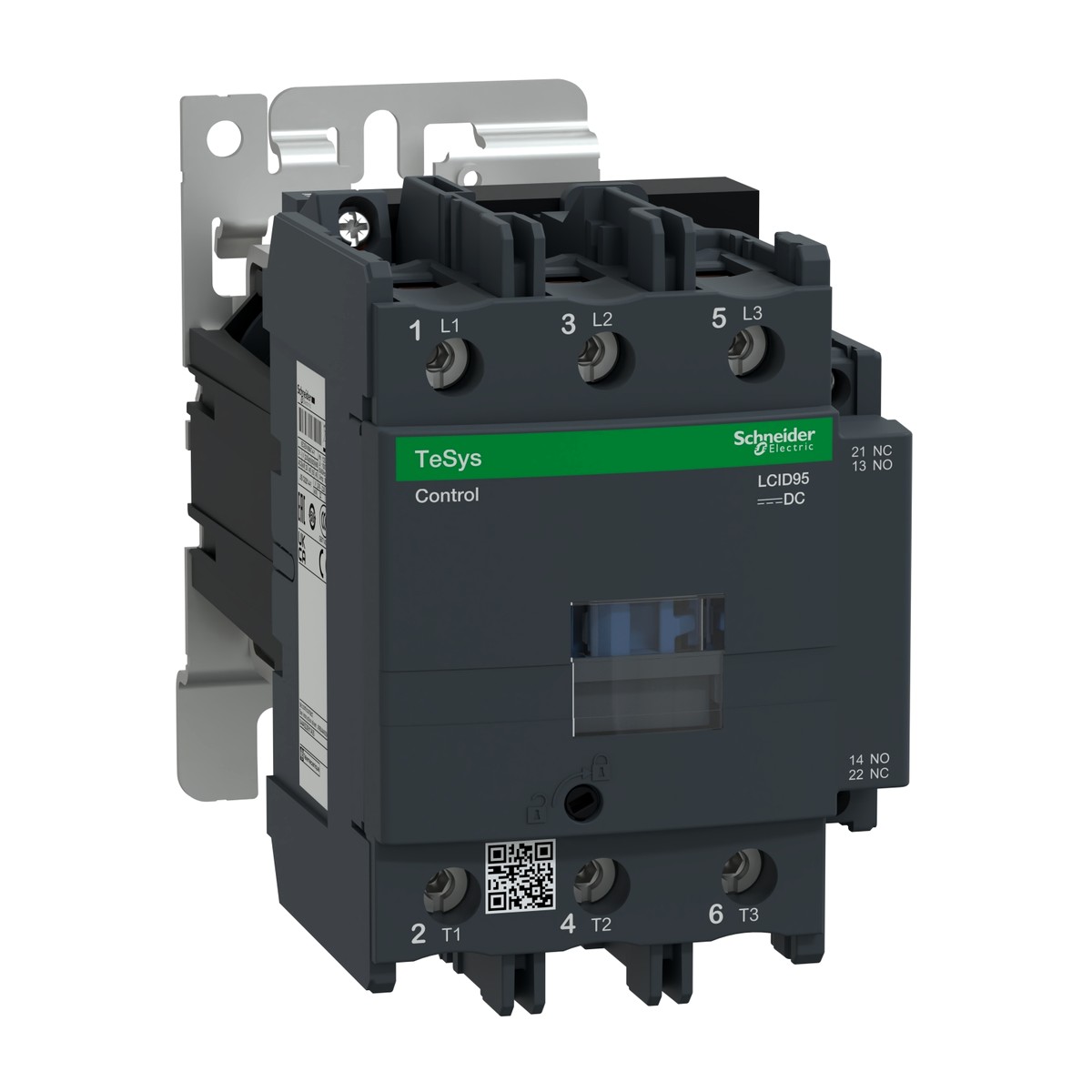

Schneider Electric LC1D95BD TeSys Deca contactor 95 A AC-3/AC-3e 3P with 24 V DC coil. The Schneider Electric LC1D95BD is a robust 3-pole TeSys Deca power contactor, engineered for reliable motor control and load switching in industrial panels. This versatile unit features a 95 A rated operational current at 440 V for AC-3 and AC-3e utilisation categories, making it suitable for demanding applications. It is equipped with a standard 24 V DC control coil and convenient screw clamp terminals for control wiring, and connectors for power circuits, ensuring straightforward installation. With a 3 NO pole contact composition and an integrated 1 NO + 1 NC auxiliary contact, the LC1D95BD offers flexible control options. Its robust design is evident in its IP20 front face protection and wide ambient temperature range of -40 to 60 °C. This contactor is ideal for critical operations in industries prevalent across Egypt and the Gulf, including cement production, oil and gas, water treatment, food and beverage, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D95BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D95M7 contactor 95 A AC-3 3P with 220 V AC 50/60Hz coil
- TeSys Deca LC1D95MD contactor, 3P 95A AC-3/AC-3e, 220V DC coil
- TeSys Deca LC1D95N7 contactor 95 A AC-3 3P with 415 V AC 50/60Hz coil
- TeSys Deca LC1D95P7 contactor 95A AC-3 3P with 230V AC coil
- TeSys Deca LC1D95Q7 contactor 95A AC-3 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D95U7 Contactor, 3P 95A AC-3/AC-3e with 240V AC Coil
Specifications
- Motor power kW
- 45 KW at 380...400 V AC 50 Hz (AC-3)
- Mounting support
- Rail, Plate
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Contactor application
- Resistive load, Motor control
- Electrical durability
- 1.2 Mcycles 95 A AC-3
- Mechanical durability
- 10 Mcycles
- Connections - terminals
- screw clamp terminals (control circuit), connector (power circuit)
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D95BD
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit
- [Uimp] rated impulse withstand voltage
- 8 KV conforming to IEC 60947
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz
- Permissible ambient air temperature around the device
- -40…60 °C
