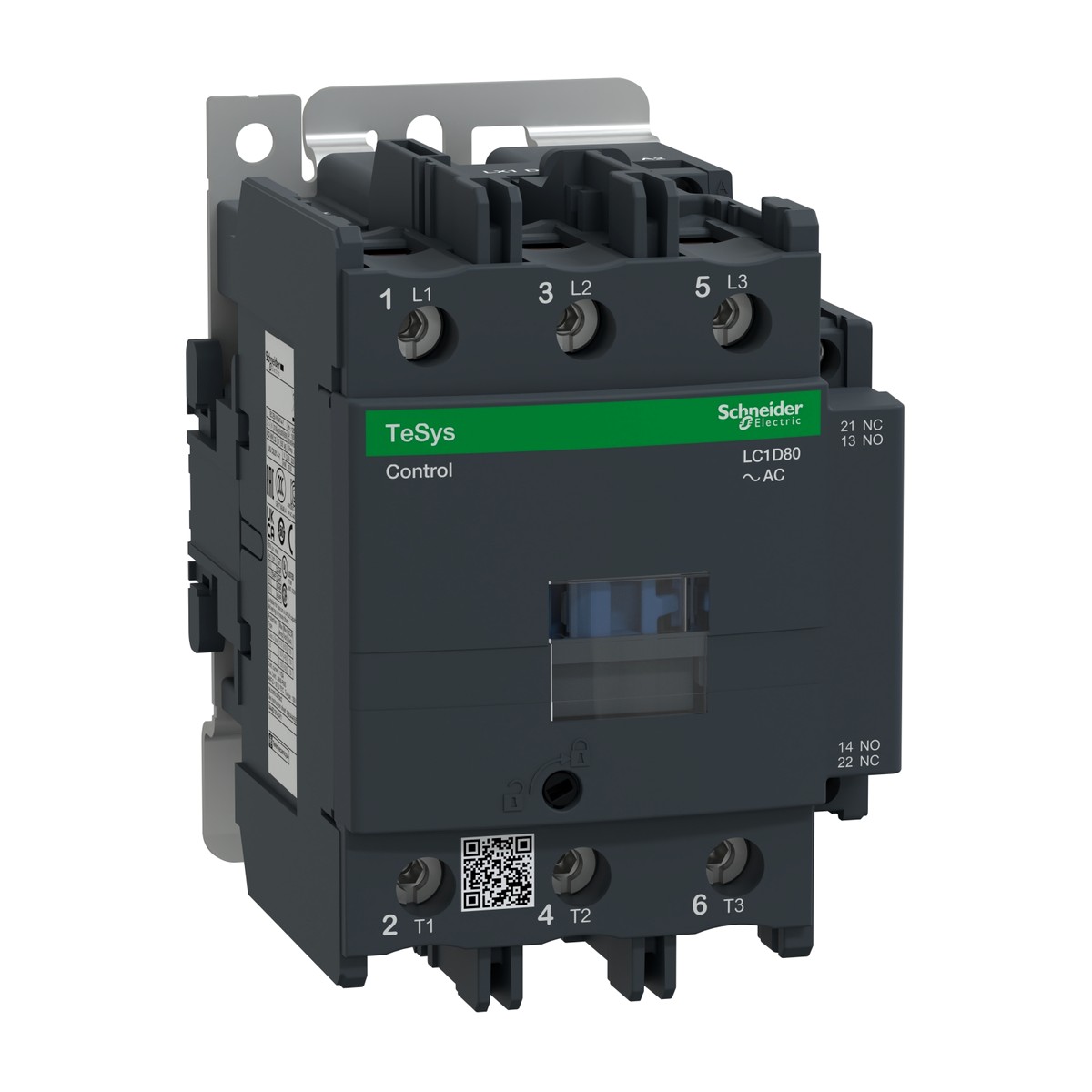

LC1D80N7
Schneider Electric LC1D80N7 TeSys Deca contactor 80A AC-3 3P with 415V AC 50/60Hz coil. The Schneider Electric LC1D80N7 contactor, part of the robust TeSys Deca range, is a high-performance three-pole IEC power contactor engineered for reliable motor and load switching in demanding industrial panel applications. Featuring an 80 A AC-3 operational current at up to 440V AC and a 415V AC 50/60Hz control coil, this unit is perfectly suited for the region's electrical standards. It handles motor loads up to 45 kW at 415-440V AC (AC-3) and includes 1 NO + 1 NC auxiliary contacts for versatile control schemes. With screw clamp terminals for the control circuit and connector terminals for the power circuit, installation is secure and straightforward. The LC1D80N7 offers excellent durability with 4 Mcycles mechanical life and 1.5 Mcycles electrical life (AC-3), along with an IP20 front face rating, ensuring robust performance in environments found across industries such as cement, oil and gas, water treatment, food and beverage, and textiles. For reliable operation in critical infrastructure and building services, the Schneider Electric LC1D80N7 provides a dependable solution.
Details
- Brand: Schneider Electric
- Part number: LC1D80N7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
Specifications
- Net weight
- 1.59 Kg
- Mounting support
- Rail, Plate
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Electrical durability
- 1.5 Mcycles 80 A AC-3 at Ue <= 440 V
- Mechanical durability
- 4 Mcycles
- Motor power kW (AC-3)
- 45 KW at 415...440 V AC 50/60 Hz
- Connections - terminals
- Control circuit: screw clamp terminals; Power circuit: connector
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D80N7
- [Uc] control circuit voltage
- 415 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ui] rated insulation voltage (Power circuit)
- 1000 V conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device
- -40…60 °C
