LC1D80U7

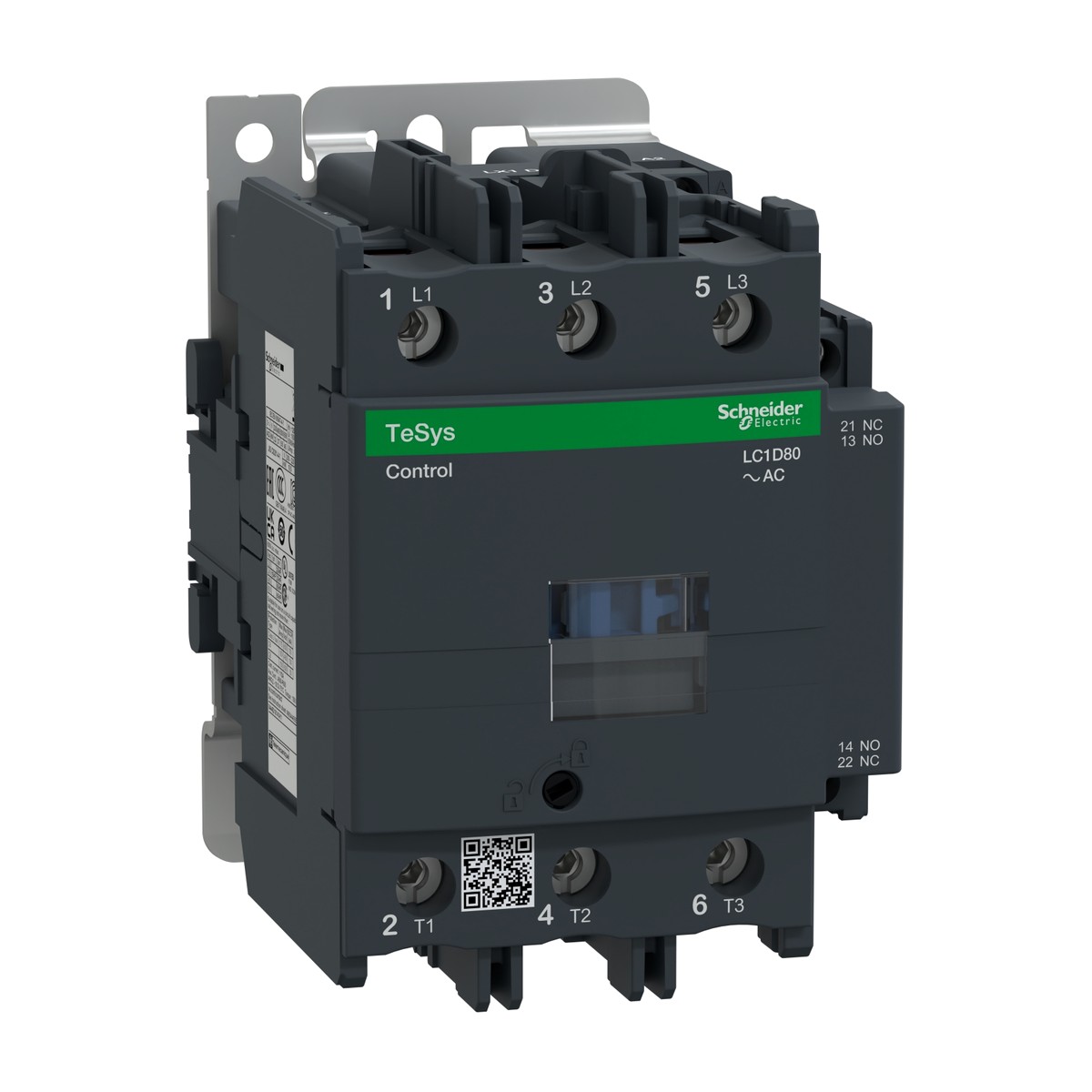

Schneider Electric LC1D80U7 TeSys Deca contactor 80A AC-3e 3P with 240V AC coil. The Schneider Electric LC1D80U7 TeSys Deca contactor is a robust and reliable solution designed for efficient motor control and resistive load switching in diverse industrial applications. This 3-pole device features an 80A rated operational current for AC-3/AC-3e categories at <=440V AC, making it ideal for managing significant electrical loads. It is equipped with a versatile 240V AC 50/60Hz control coil, perfectly suited for standard control voltages in Egypt and the Gulf region. Capable of handling motors up to 37KW at 380-400V AC or 45KW at 415-440V AC, the LC1D80U7 ensures high performance. Its durable construction boasts a mechanical durability of 4 Mcycles and an electrical durability of 1.5 Mcycles for AC-3e operation, ensuring a long service life. Power connections are made via connectors for cables up to 50mm² and control wiring uses screw clamp terminals. With an IP20 front face protection and compact dimensions (127mm H x 85mm W x 130mm D), this contactor is well-suited for integration into industrial panels. It includes 1 NO + 1 NC auxiliary contacts for seamless integration into control circuits. Essential for industries such as cement, oil and gas, water treatment, food and beverage, textiles, and building services, the LC1D80U7 offers dependable operation.
Details
- Brand: Schneider Electric
- Part number: LC1D80U7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D95M7 contactor 95 A AC-3 3P with 220 V AC 50/60Hz coil
- TeSys Deca LC1D95MD contactor, 3P 95A AC-3/AC-3e, 220V DC coil
- TeSys Deca LC1D95N7 contactor 95 A AC-3 3P with 415 V AC 50/60Hz coil
Specifications
- Depth
- 130 Mm
- Width
- 85 Mm
- Height
- 127 Mm
- Net weight
- 1.59 Kg
- Mounting support
- Plate, Rail
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Contactor application
- Motor control, Resistive load
- Mechanical durability
- 4 Mcycles
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D80U7
- [Uc] control circuit voltage
- 240 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- Electrical durability (AC-3e)
- 1.5 Mcycles 80 A AC-3e at Ue <= 440 V
- Connections - terminals (Power circuit)
- connector 1 4…50 mm² - cable stiffness: flexible without cable end
- Connections - terminals (Control circuit)
- screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
- Motor power kW (AC-3/AC-3e at 380-400 V AC)
- 37 KW at 380...400 V AC 50/60 Hz
- Motor power kW (AC-3/AC-3e at 415-440 V AC)
- 45 KW at 415...440 V AC 50/60 Hz
- [Ie] rated operational current (AC-3/AC-3e)
- 80 A (at <60 °C) at <= 440 V AC for power circuit
- Associated fuse rating (Power circuit Type 2)
- 160 A gG at <= 690 V coordination type 2 for power circuit
- [Ui] rated insulation voltage (Power circuit)
- 1000 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
