LC1D80P7

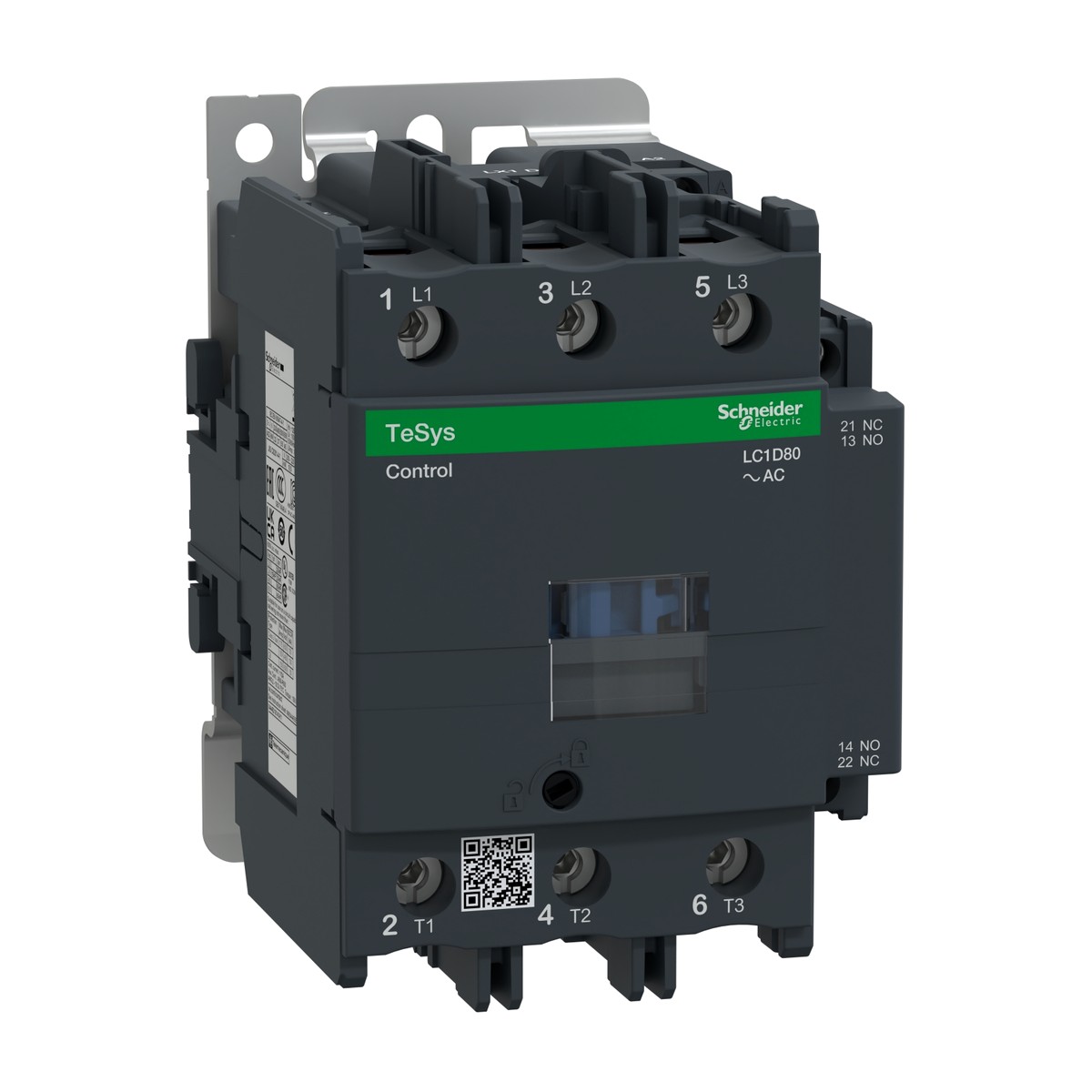

Schneider Electric LC1D80P7 TeSys Deca contactor 80A AC-3/AC-3e 3P with 230V AC coil. The Schneider Electric TeSys Deca LC1D80P7 contactor is a robust and reliable 3-pole device designed for efficient motor control and switching of resistive loads in industrial and commercial panels. Part of the renowned TeSys Deca range, this contactor offers an 80 A AC-3/AC-3e rated operational current at up to 440 V AC, making it suitable for a wide array of applications. It features a versatile 230 V AC 50/60 Hz control circuit, ensuring compatibility with common power systems in Egypt and the Gulf region. With robust screw clamp terminals for control and connector terminals for power, it ensures secure and straightforward wiring. Key specifications include 45 kW motor power at 415-440 V AC 50 Hz (AC-3/AC-3e) and built-in 1 NO + 1 NC auxiliary contacts for enhanced control. Typical applications span heavy industries like cement, oil and gas, and water treatment, as well as food and beverage, textiles, and building services. For dependable performance in critical environments, choose the Schneider Electric LC1D80P7.
Details
- Brand: Schneider Electric
- Part number: LC1D80P7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D95M7 contactor 95 A AC-3 3P with 220 V AC 50/60Hz coil
Specifications
- Depth
- 130 Mm
- Width
- 85 Mm
- Height
- 127 Mm
- Net weight
- 1.59 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Mechanical durability
- 4 Mcycles
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D80P7
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- Electrical durability (AC-3e at 440V)
- 1.5 Mcycles 80 A AC-3e at Ue <= 440 V
- Connections - terminals (Power circuit)
- connector
- Connections - terminals (Control circuit)
- screw clamp terminals
- Motor power kW (AC-3 at 415-440 V AC 50 Hz)
- 45 KW
- [Ie] rated operational current (AC-3/AC-3e)
- 80 A (at <60 °C) at <= 440 V AC for power circuit
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC
- Motor power kW (AC-3e at 415-440 V AC 50/60 Hz)
- 45 KW
- Permissible ambient air temperature around the device
- -40…60 °C
