LC1D80Q7

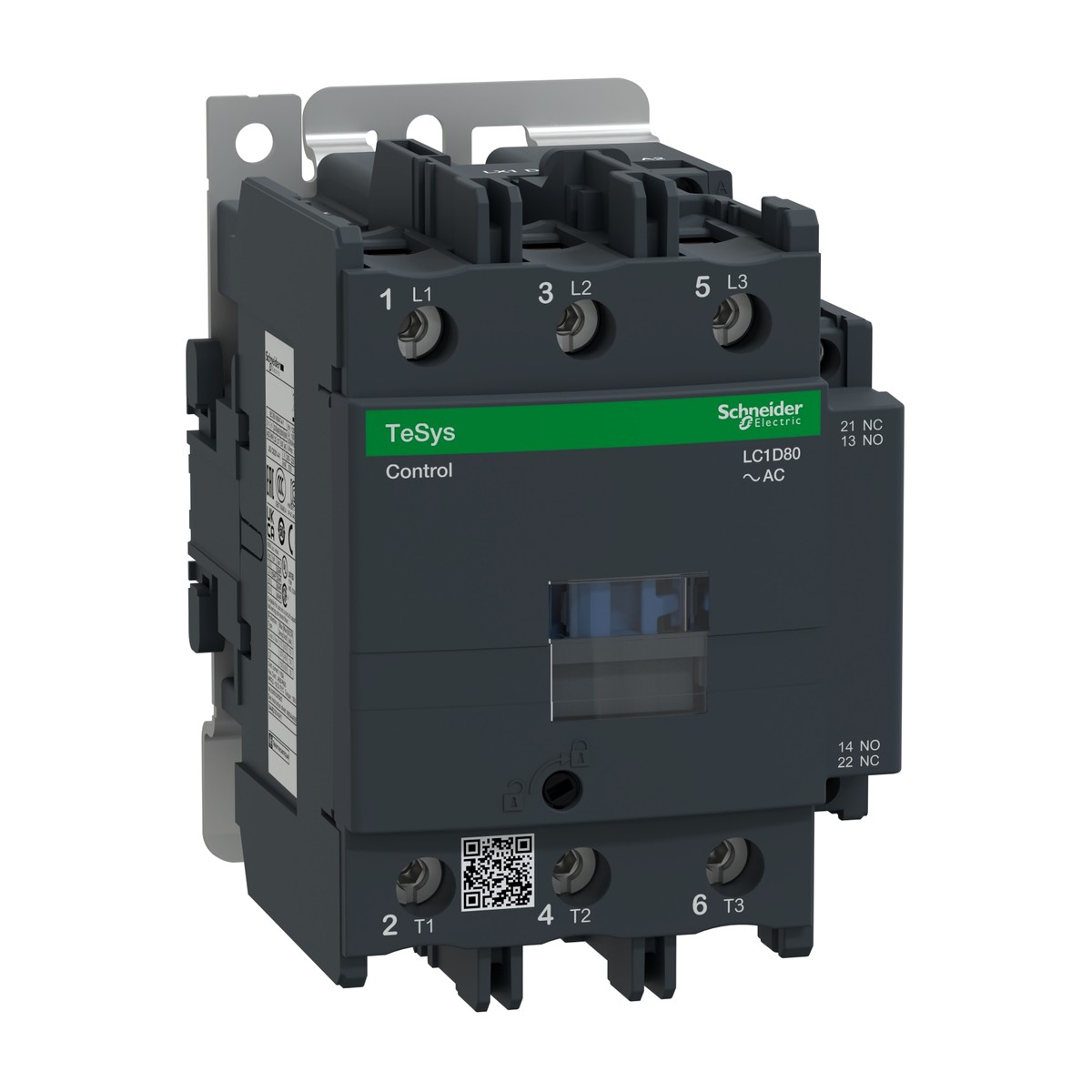

Schneider Electric LC1D80Q7 TeSys Deca contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil. The Schneider Electric LC1D80Q7 contactor, part of the robust TeSys Deca range, is a high-performance 3-pole device designed for reliable motor control and load switching in industrial panels. Featuring a 380 V AC 50/60 Hz control coil and 3 NO power contacts, it is ideally suited for common electrical systems in Egypt and the Gulf. This contactor is rated for 80 A AC-3/AC-3e at up to 440 V AC, supporting a significant motor power of 37 kW at 380-400 V AC 50/60 Hz. Its versatility is further enhanced by screw clamp terminals for the control circuit and robust connectors for the power circuit, alongside integrated 1 NO + 1 NC auxiliary contacts. With an IP20 front face rating and a wide operating temperature range of -40 to 60 °C, the LC1D80Q7 ensures dependable operation in challenging environments. It's an essential component for critical applications in sectors such as oil and gas, water treatment, cement production, food and beverage, and various building services throughout the region. For detailed pricing and availability of the Schneider Electric LC1D80Q7, please request a quote.
Details
- Brand: Schneider Electric
- Part number: LC1D80Q7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D95FD contactor 95A AC-3 3P with 110V DC coil
- TeSys Deca LC1D95FE7 contactor 95 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D95M7 contactor 95 A AC-3 3P with 220 V AC 50/60Hz coil
- TeSys Deca LC1D95MD contactor, 3P 95A AC-3/AC-3e, 220V DC coil
Specifications
- Depth
- 130 Mm
- Width
- 85 Mm
- Height
- 127 Mm
- Net weight
- 1.59 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e, AC-4
- Control circuit voltage
- 380 V AC 50/60 Hz
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Power circuit terminals
- connector
- Rated breaking capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D80Q7
- Pole contact composition
- 3 NO
- Control circuit terminals
- screw clamp terminals
- Motor power (AC-3, 380-400V)
- 37 KW at 380...400 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current AC-1
- 125 A (at <60 °C) at <= 1000 V AC
- Rated operational current AC-3
- 80 A (at <60 °C) at <= 440 V AC
- Rated insulation voltage power circuit
- 1000 V conforming to IEC 60947-4-1
- Rated operational voltage power circuit
- <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
