LC1D80FE7

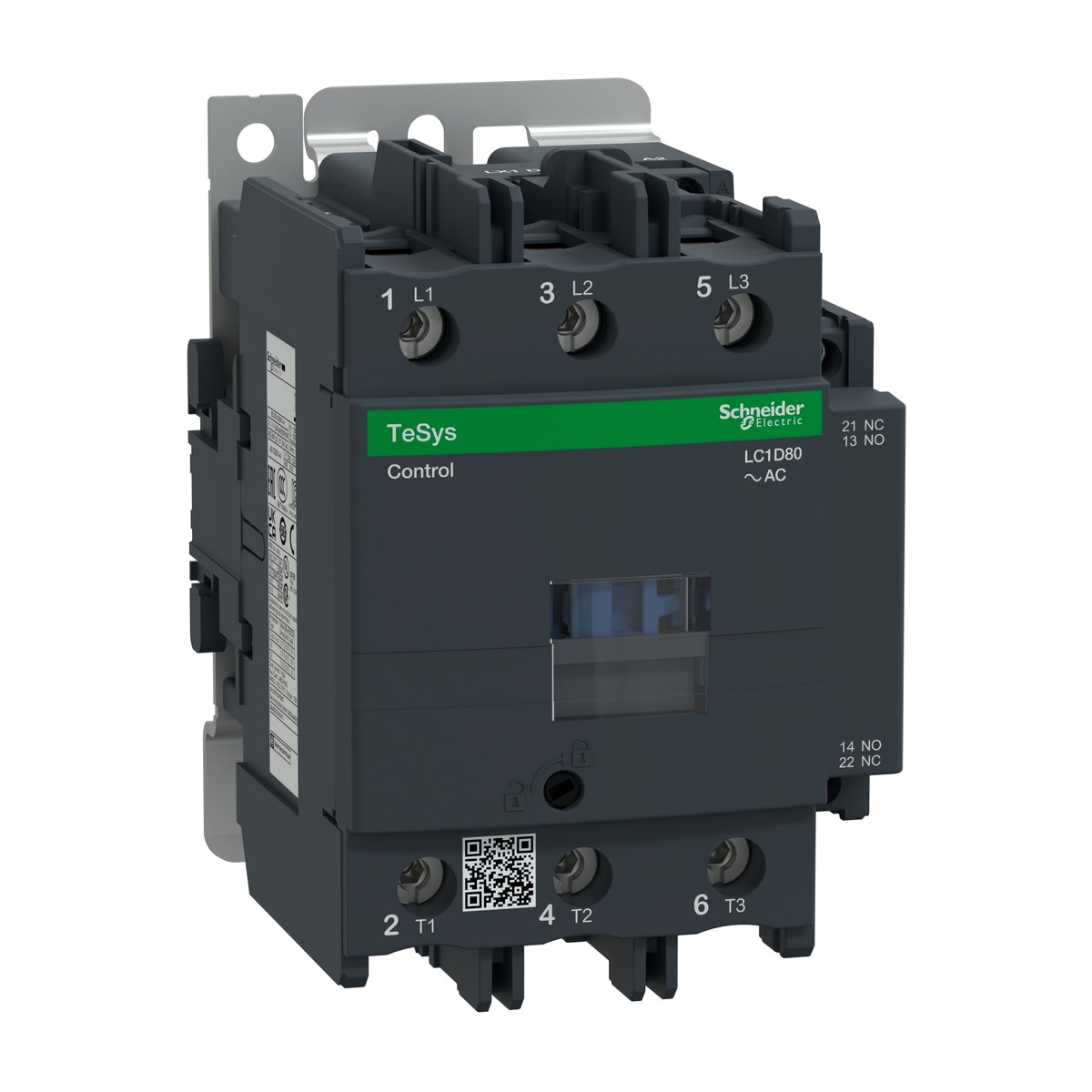

Schneider Electric LC1D80FE7 TeSys Deca contactor 80 A AC-3/AC-3e 3P with 115V AC 50/60Hz coil. The Schneider Electric TeSys Deca LC1D80FE7 contactor is a robust 3-pole IEC power contactor engineered for efficient motor control and resistive load switching in industrial panels. Part of the renowned TeSys Deca range, this contactor offers reliable performance with a rated operational current of 80 A for AC-3 and AC-3e applications at up to 440 V AC. It features a 115 V AC 50/60 Hz control coil and convenient screw clamp terminals for secure connections. With a motor power capability of 45 kW at 415-440 V AC for AC-3/AC-3e, the LC1D80FE7 is suitable for diverse industrial environments. It includes 1 NO + 1 NC auxiliary contacts, has an IP20 front face rating, and operates reliably in temperatures from -40 to 60 °C. This Schneider Electric LC1D80FE7 contactor provides essential functionality for applications in key Egyptian and Gulf industries such as water treatment, oil and gas, food and beverage processing, cement production, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D80FE7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80M7 contactor 80 A AC-3 3P with 220 V AC coil
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
Specifications
- Net weight
- 1.59 Kg
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e, AC-4
- Mechanical durability
- 4 Mcycles
- Dimensions (H x W x D)
- 127 Mm x 85 Mm x 130 Mm
- Connections - terminals
- screw clamp terminals
- Control circuit voltage
- 115 V AC 50/60 Hz
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D80FE7
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- Auxiliary contact composition
- 1 NO + 1 NC
- Electrical durability (AC-3/AC-3e)
- 1.5 Mcycles 80 A at Ue <= 440 V
- Rated operational current (AC-3/AC-3e)
- 80 A (at <60 °C) at <= 440 V AC
- Motor power kW (AC-3/AC-3e at 415-440 V AC)
- 45 KW
- Permissible ambient air temperature around the device
- -40…60 °C
