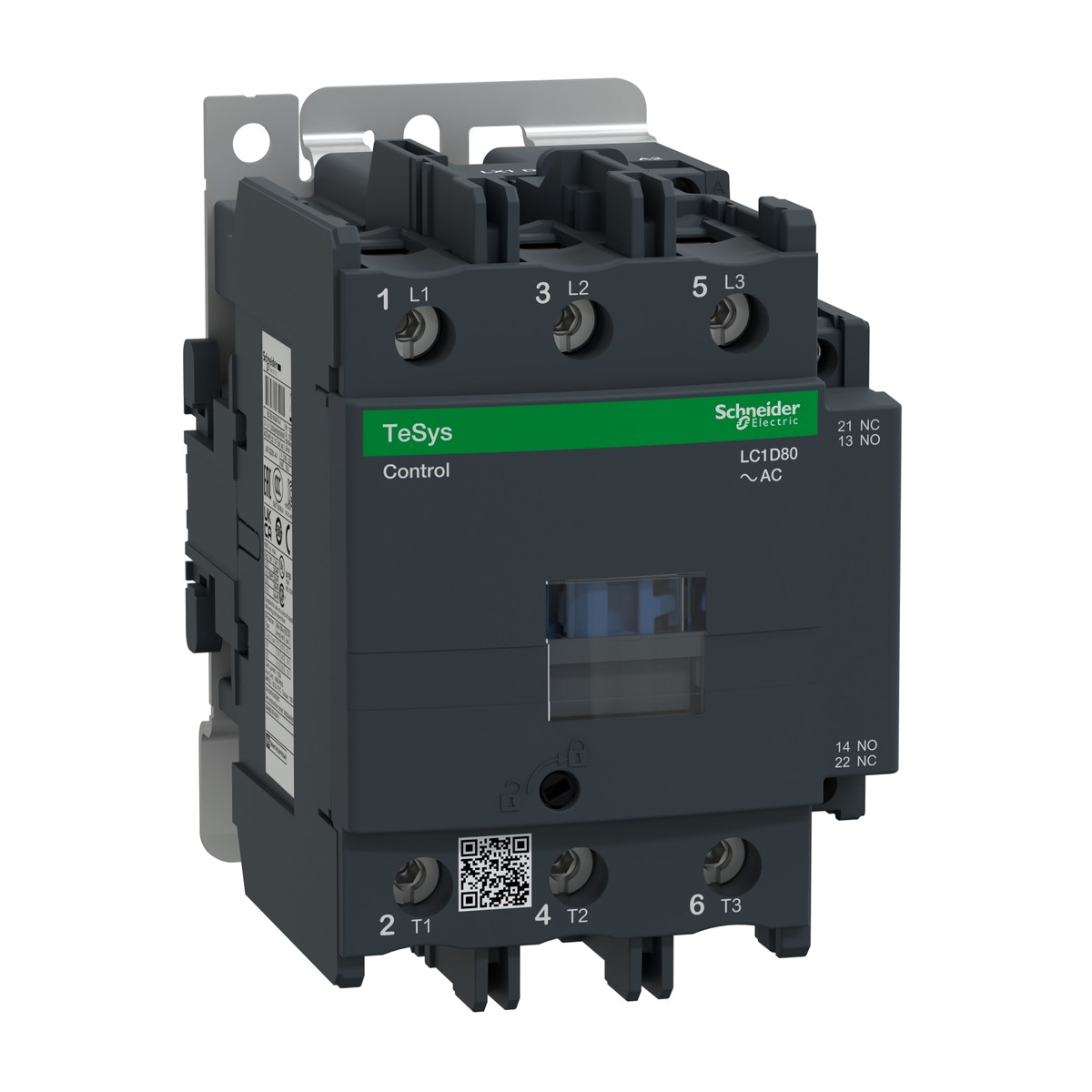

LC1D80M7
Schneider Electric LC1D80M7 TeSys Deca contactor 80 A AC-3 3P with 220 V AC coil. The Schneider Electric LC1D80M7 contactor from the TeSys Deca range is a robust and reliable 3-pole IEC power contactor designed for demanding motor control and resistive load switching applications. Featuring a 220 V AC 50/60 Hz control circuit voltage and a rated operational current of 80 A at <= 440 V AC (AC-3/AC-3e), this contactor ensures efficient and safe operation. Its versatile utilization categories (AC-3, AC-3e, AC-4, AC-1) make it suitable for various industrial environments. With screw clamp terminals for secure connections and an IP20 front face protection, the LC1D80M7 offers easy installation and enhanced safety. This Schneider Electric contactor is an essential component for critical infrastructure in the Gulf and Egypt, including cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textiles, and building services. Its proven mechanical and electrical durability ensure long-term performance in challenging conditions.
Details
- Brand: Schneider Electric
- Part number: LC1D80M7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D95BD contactor 95 A AC-3/AC-3e 3P with 24 V DC coil
- TeSys Deca LC1D95BW contactor 95 A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D95E7 contactor 95A AC-3 3P with 48V AC coil
- TeSys Deca LC1D95ED Contactor, 3P 95A AC-3/AC-3e, 48V DC Coil
- TeSys Deca LC1D95F7 contactor 95A AC-3 3P with 110V AC 50/60Hz coil
Specifications
- Depth
- 130 Mm
- Width
- 85 Mm
- Height
- 127 Mm
- Net weight
- 1.59 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3/AC-3e/AC-4/AC-1
- Mechanical durability
- 4 Mcycles
- Motor power kW (AC-3)
- 37 KW at 380...400 V AC 50/60 Hz
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D80M7
- Pole contact composition
- 3 NO
- Electrical durability (AC-3)
- 1.5 Mcycles 80 A at Ue <= 440 V
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- [Ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ui] rated insulation voltage (Power circuit)
- 1000 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
