LC1D80E7

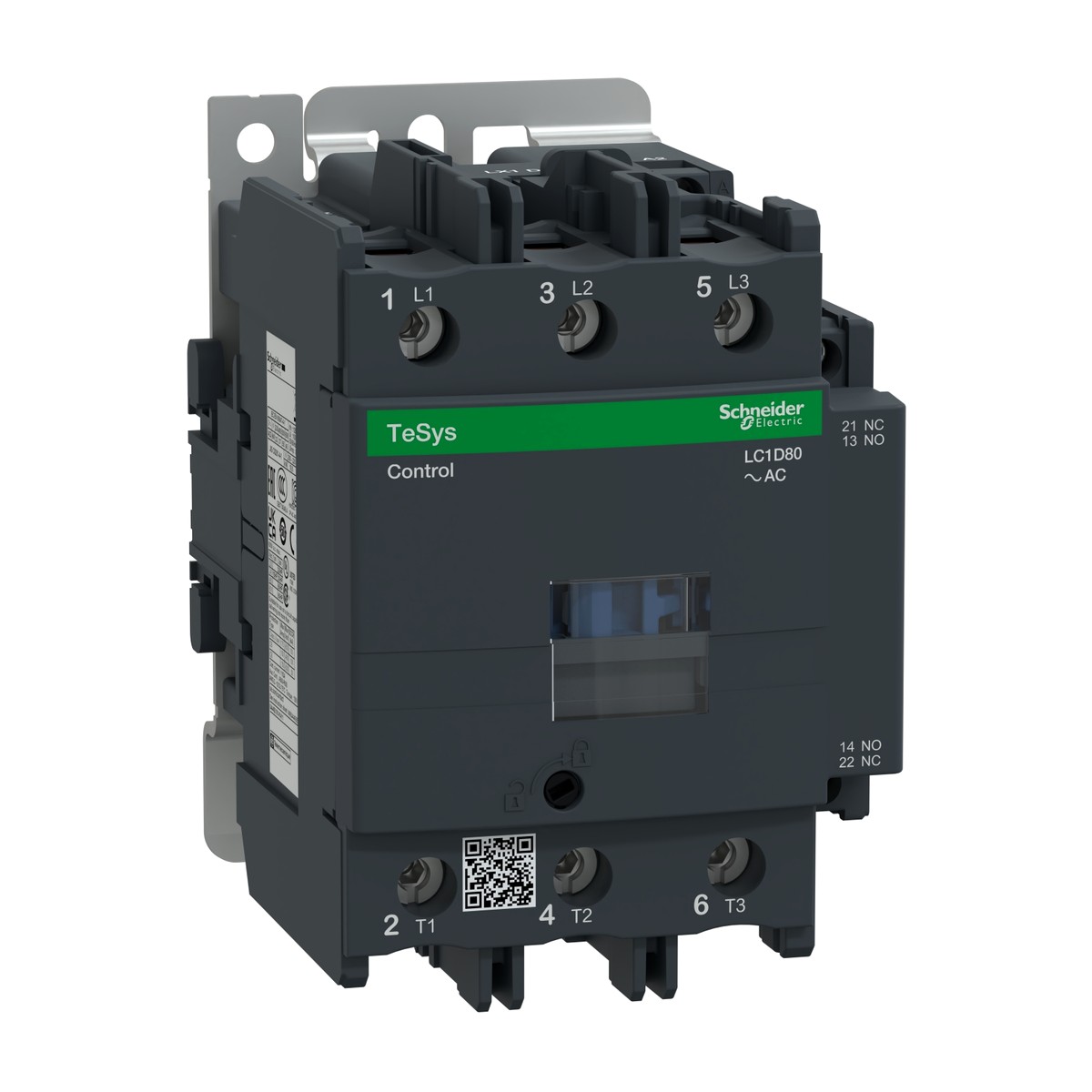

Schneider Electric LC1D80E7 TeSys Deca contactor 80 A AC-3/AC-3e 3P with 48 V AC 50/60 Hz coil. The Schneider Electric LC1D80E7 is a robust TeSys Deca 3-pole IEC power contactor engineered for reliable motor control and load switching in diverse industrial panels. This essential component offers an 80 A rated operational current for AC-3 and AC-3e applications at up to 440 V AC, with a broad power circuit voltage compatibility up to 690 V AC. It features a 48 V AC 50/60 Hz control circuit coil and secure screw clamp terminals for both power and control connections, accommodating cable sizes up to 50 mm² for power. With a mechanical durability of 4 Mcycles and electrical durability of 1.5 Mcycles at 80 A AC-3, the LC1D80E7 ensures long-term performance. It is well-suited for demanding environments in Egypt and the Gulf, finding applications in critical sectors such as cement production, oil and gas, water treatment facilities, food and beverage processing, textiles manufacturing, and building services. Rated at IP20 and capable of managing motors up to 37 kW at 380-400 V AC, it provides a dependable solution for challenging industrial control requirements.
Details
- Brand: Schneider Electric
- Part number: LC1D80E7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80ED contactor 80A AC-3 3P with 48V DC coil
- TeSys Deca LC1D80F7 contactor 80 A AC-3 3P with 110 V AC 50/60Hz coil
- TeSys Deca LC1D80FD contactor 80A AC-3 3P with 110V DC coil
- TeSys Deca LC1D80FE7 contactor 80 A AC-3/AC-3e 3P with 115V AC 50/60Hz coil
- TeSys Deca LC1D80M7 contactor 80 A AC-3 3P with 220 V AC coil
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
- TeSys Deca LC1D80V7 Contactor 3P 80A AC-3/AC-3e 400V AC coil
- TeSys Deca LC1D95B7 contactor 95A AC-3 3P with 24V AC 50/60Hz coil screw clamp terminals
Specifications
- Net weight
- 1.59 Kg
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-4, AC-1
- Electrical durability
- 1.5 Mcycles 80 A AC-3 at Ue <= 440 V
- Mechanical durability
- 4 Mcycles
- Motor power kW (AC-3)
- 37 KW at 380...400 V AC 50/60 Hz
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D80E7
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 48 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC
- Connections - terminals (Power circuit)
- connector 1 4…50 mm² - cable stiffness: flexible without cable end
- Connections - terminals (Control circuit)
- screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
- Permissible ambient air temperature around the device
- -40…60 °C
