LC1D80BD

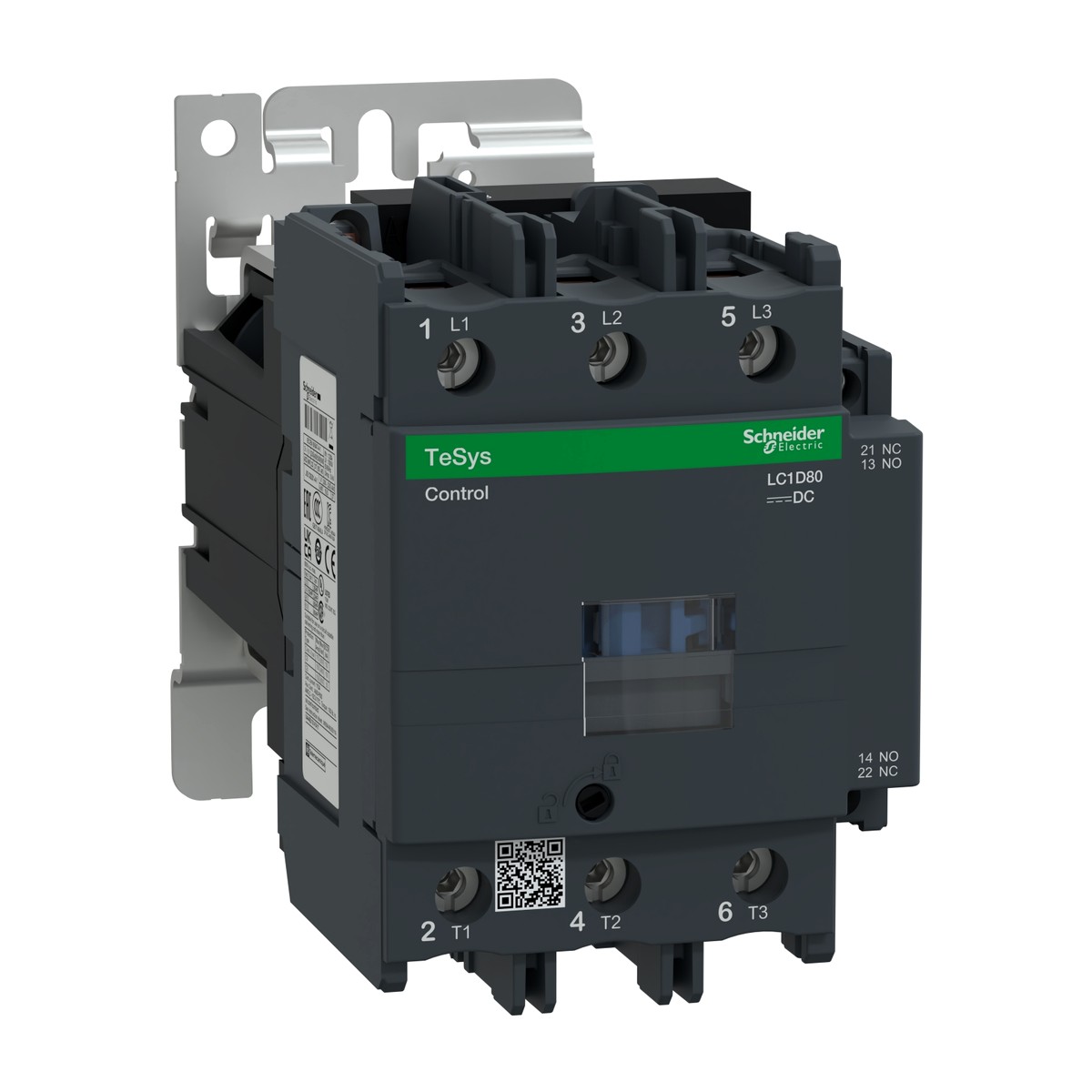

Schneider Electric LC1D80BD TeSys Deca contactor 80A AC-3/AC-3e 3P with 24V DC coil. The Schneider Electric LC1D80BD is a robust 3-pole IEC power contactor from the TeSys Deca range, engineered for reliable motor control and resistive load switching in diverse industrial applications. This specific model features an 80A rated operational current for AC-3 and AC-3e utilisation categories at up to 440V AC, and an impressive 125A for AC-1 resistive loads at up to 1000V AC. It is equipped with a standard 24V DC control coil, making it suitable for modern control systems utilizing DC power. Connectivity is facilitated by secure screw clamp terminals for the control circuit and robust connectors for the power circuit, supporting cable sizes up to 50 mm². With its IP20 front face protection and a wide permissible ambient air temperature range of -40 to 60 °C, the LC1D80BD is a dependable choice for demanding environments. Its versatility makes it ideal for critical systems in industries across Egypt and the Gulf, including cement production, oil and gas extraction, water treatment facilities, food and beverage processing, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D80BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80BW contactor 80A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D80E7 contactor 80 A AC-3/AC-3e 3P with 48 V AC 50/60 Hz coil
- TeSys Deca LC1D80ED contactor 80A AC-3 3P with 48V DC coil
- TeSys Deca LC1D80F7 contactor 80 A AC-3 3P with 110 V AC 50/60Hz coil
- TeSys Deca LC1D80FD contactor 80A AC-3 3P with 110V DC coil
- TeSys Deca LC1D80FE7 contactor 80 A AC-3/AC-3e 3P with 115V AC 50/60Hz coil
- TeSys Deca LC1D80M7 contactor 80 A AC-3 3P with 220 V AC coil
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
- TeSys Deca LC1D80Q7 contactor 80 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D80U7 contactor 80A AC-3e 3P with 240V AC coil
Specifications
- Depth
- 186 Mm
- Width
- 85 Mm
- Height
- 127 Mm
- Net weight
- 2.59 Kg
- Protective cover
- With
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Motor control, Resistive load
- Electrical durability
- 1.5 Mcycles 80 A AC-3 at Ue <= 440 V, 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
- Mechanical durability
- 4 Mcycles
- Motor power kW (AC-3)
- 37 KW at 380/400 V AC 50/60 Hz, 45 KW at 415/440 V AC 50/60 Hz
- Product certifications
- CCC, UL, CB Scheme, CSA, CE, UKCA
- IP degree of protection
- IP20 front face conforming to IEC 60592
- Manufacturer part number
- LC1D80BD
- [Uc] control circuit voltage
- 24 V DC
- Tightening torque Power circuit
- 12 N.m - on connector
- Connections - terminals Power circuit
- connector 1 4…50 mm² (flexible without cable end), connector 2 4…25 mm² (flexible without cable end), connector 1 4…50 mm² (solid without cable end), connector 2 4…25 mm² (solid without cable end)
- Connections - terminals Control circuit
- screw clamp terminals 1 1…4 mm² (flexible without cable end), screw clamp terminals 2 1…4 mm² (flexible without cable end), screw clamp terminals 1 1…4 mm² (solid without cable end), screw clamp terminals 2 1…4 mm² (solid without cable end)
- [Ue] rated operational voltage Power circuit
- <= 300 V DC 25...400 Hz, <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
- [Ie] rated operational current AC-1 for power circuit
- 125 A (at <60 °C) at <= 1000 V AC
- [Ie] rated operational current AC-3 for power circuit
- 80 A (at <60 °C) at <= 440 V AC
- [Ie] rated operational current AC-3e for power circuit
- 80 A (at <60 °C) at <= 440 V AC
