A9F85204

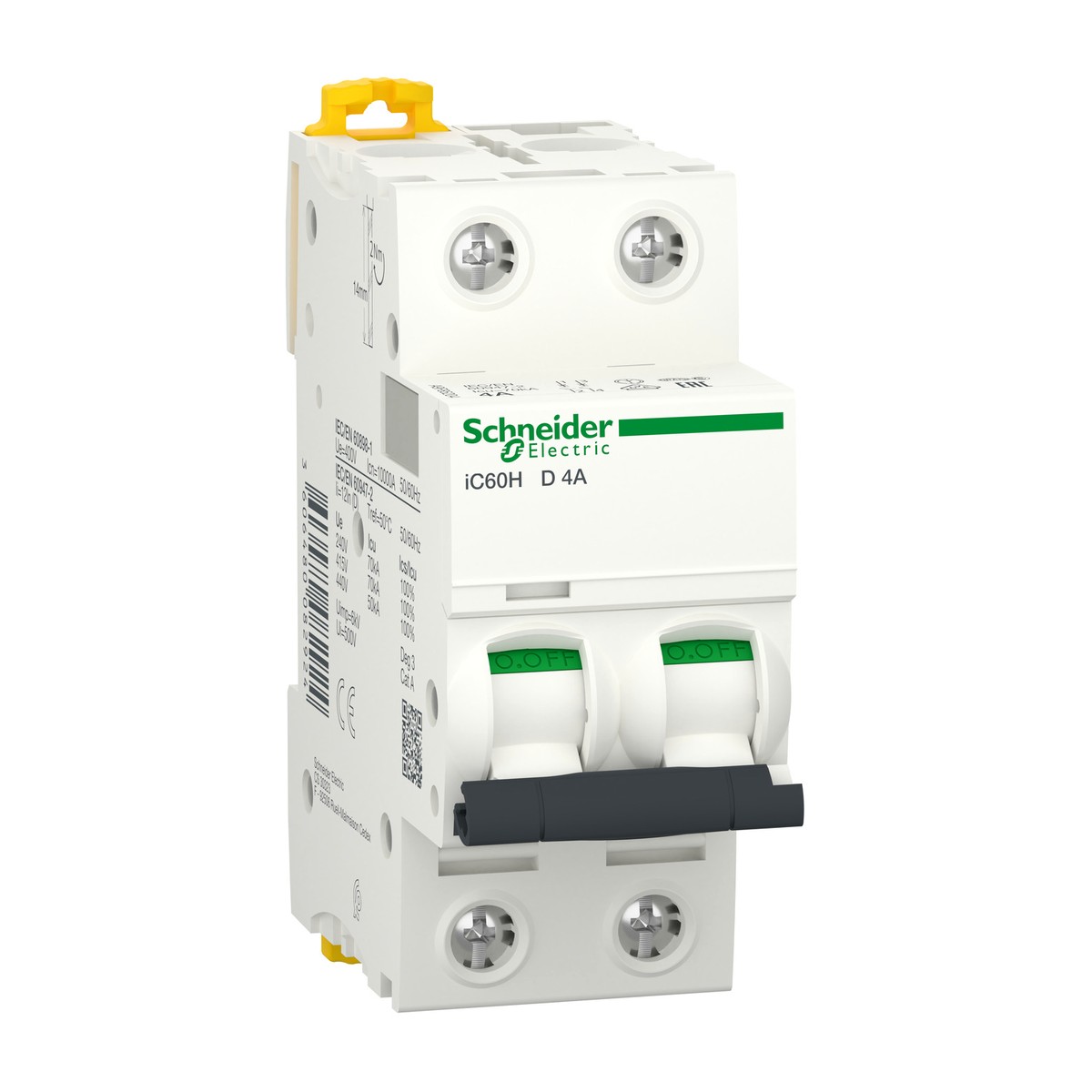

Schneider Electric A9F85204 Miniature Circuit Breaker Acti9 iC60H 2P 4A D-Curve. The Schneider Electric A9F85204 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 2-pole, 4A device features a D-curve trip characteristic and thermal-magnetic technology, making it ideal for safeguarding installations with high inrush currents, such as motors, transformers, and specific lighting loads. It offers impressive breaking capacities, including 70 kA Icu at 380-415 V AC (conforming to EN/IEC 60947-2) and 10000 A Icn at 400 V AC (conforming to EN/IEC 60898-1), as well as robust protection for DC applications up to 125 V DC. Suitable for isolation and designed for 35 mm DIN rail mounting, the A9F85204 ensures secure installation and compliance with key standards. Its IP20 protection and wide operating temperature range (-35 to 70 °C) provide dependable performance in diverse environments. In the demanding industrial landscapes of Egypt and the Gulf, from cement and oil and gas facilities to water treatment plants and food & beverage processing, this Schneider Electric MCB provides essential circuit protection.
Details
- Brand: Schneider Electric
- Part number: A9F85204
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85206 — Miniature Circuit Breaker iC60H 2P 6A D Curve
- Schneider Electric A9F85210 — Miniature Circuit Breaker (MCB), 2P, 10A, D Curve
- Schneider Electric A9F85216 — Acti9 iC60H Miniature Circuit Breaker 2P 16A D-Curve
- Schneider Electric A9F85220 — Miniature Circuit Breaker iC60H 2P 20A D-Curve
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
Specifications
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 4 A
- Trip unit technology
- Thermal-magnetic
- Breaking capacity (DC)
- 15 KA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85204
- Number of protected poles
- 2
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (EN/IEC 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (EN/IEC 60947-2)
- 70 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
