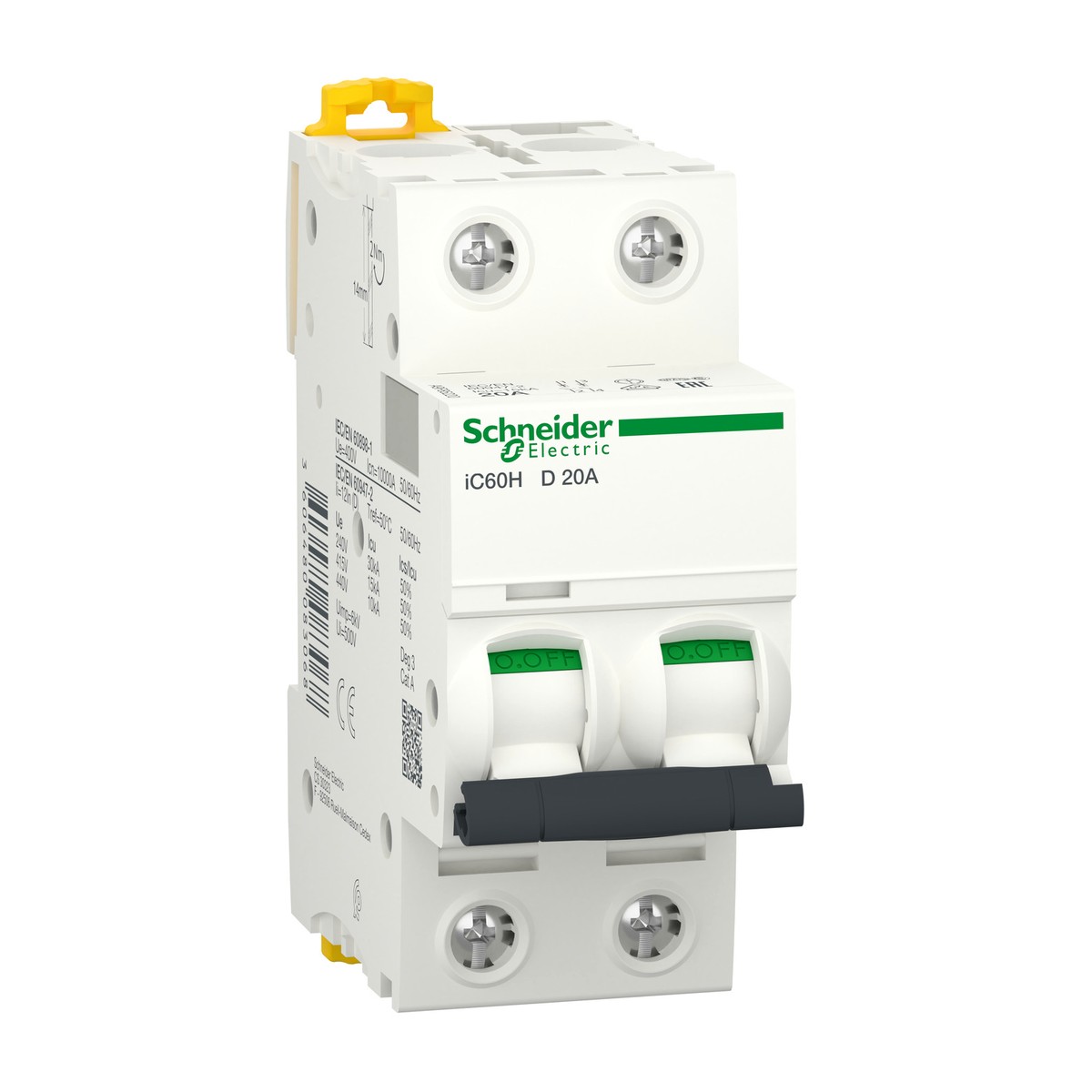

Schneider Electric A9F85220 Miniature Circuit Breaker iC60H 2P 20A D-Curve. The Schneider Electric A9F85220 Acti9 iC60H Miniature Circuit Breaker is a robust 2-pole, 20 Ampere device designed for final distribution circuits, ensuring reliable protection in diverse electrical installations. Featuring a D-curve thermal-magnetic trip unit, this iC60H series MCB is engineered to handle both AC and DC networks, offering exceptional versatility. It boasts impressive breaking capacities, including 10000 A Icn at 400 V AC (EN/IEC 60898-1) and 15 kA Icu at 380-415 V AC (EN/IEC 60947-2), alongside 15 kA Icu at <=125 V DC, making it suitable for a wide range of operational voltages from 12V to 440V AC and up to 125V DC. This device is designed for clip-on 35 mm DIN rail mounting, compatible with both top and bottom connections for flexible installation. With an IP20 degree of protection and operational stability across -35…70 °C, the A9F85220 is built for durability and performance in demanding environments. Its suitability for isolation (conforming to EN/IEC 60898-1 and 60947-2) ensures enhanced safety. Ideal for applications across Egypt and the Gulf, including building services, water treatment, food and beverage, and light industrial plants requiring reliable circuit protection.
Details
- Brand: Schneider Electric
- Part number: A9F85220
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 15 KA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 15 KA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 20 A
- Trip unit technology
- Thermal-magnetic
- Utilisation category
- Category A conforming to EN/IEC 60947-2
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Wire stripping length
- 14 Mm for top or bottom connection
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85220
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
