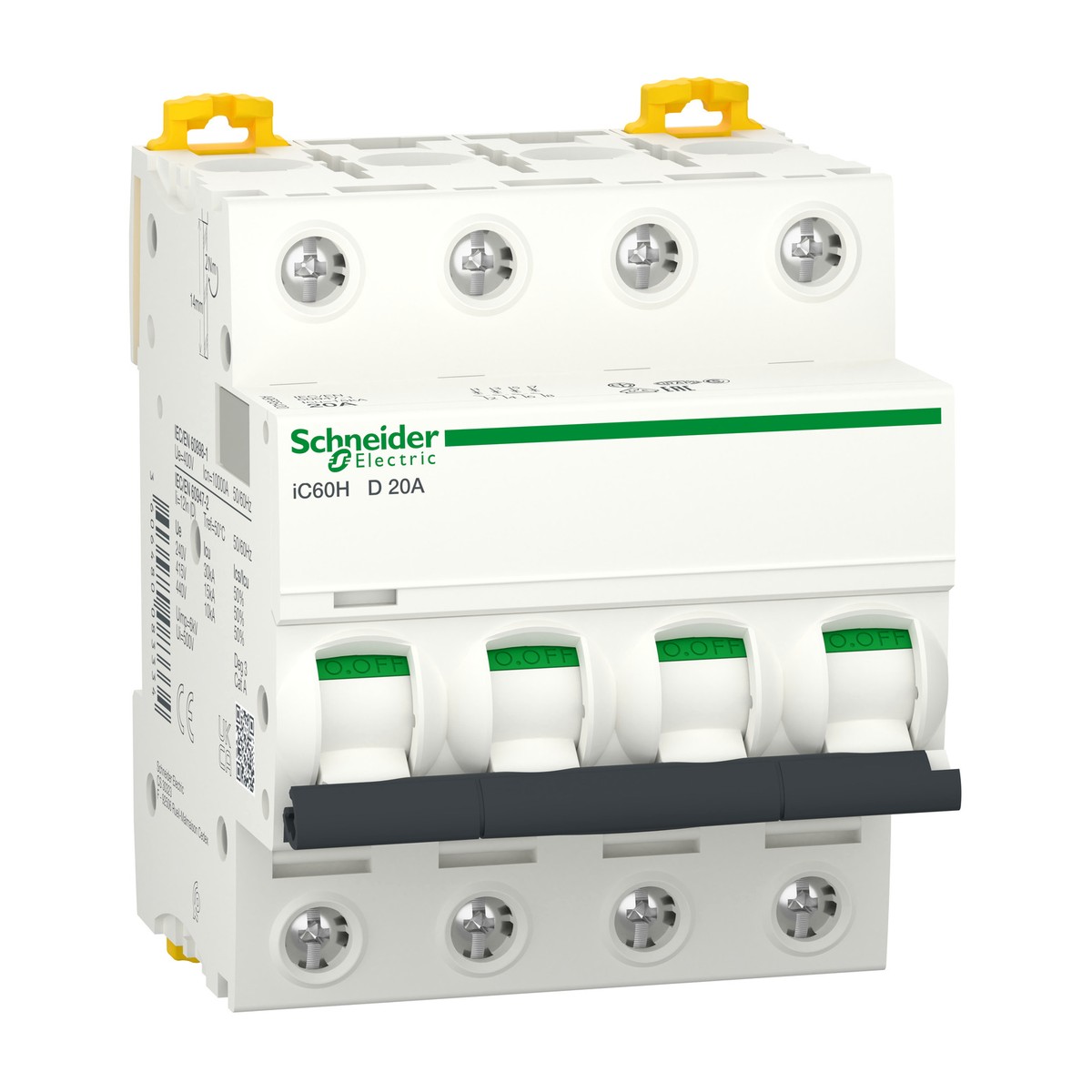

Schneider Electric A9F85420 Miniature Circuit Breaker
Schneider Electric A9F85420 Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker. The Schneider Electric A9F85420 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) designed for robust protection of final distribution circuits. This 4-pole, 20A device features a D-curve trip unit technology, ensuring reliable thermal-magnetic protection against overloads and short circuits in both AC and DC networks. It accommodates a wide range of operational voltages, including 220-240 V AC and 380-415 V AC at 50/60 Hz, making it ideal for the diverse electrical requirements of Egypt and the Gulf region. With an impressive breaking capacity of 15 kA Icu at 380-415 V AC (conforming to EN/IEC 60947-2) and 10000 A Icn at 400 V AC (conforming to EN/IEC 60898-1), the A9F85420 guarantees enhanced safety and continuity of service. Its DIN-rail clip-on mounting facilitates easy installation in industrial control panels and distribution boards across sectors like building services, water treatment, oil and gas, and food and beverage processing. The IP20 degree of protection and operational temperature range of -35…70 °C ensure durability in demanding environments. For precise technical details and to request a quote for the Schneider Electric A9F85420, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F85420
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
- Schneider Electric A9F85450 — Miniature Circuit Breaker Acti9 iC60H 4P 50A D-Curve
- Schneider Electric A9F85463 — Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN)
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
- Schneider Electric A9F88316 — Acti9 iC60H MCB, 3P, 16A, B curve
- Schneider Electric A9F88332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-Curve
- Schneider Electric A9F88363 — iC60H Miniature Circuit Breaker 3P 63A B-Curve
- Schneider Electric A9F88406 — iC60H 4P 6A B-curve 10000A/15kA Miniature Circuit Breaker
- Schneider Electric A9F88425 — Miniature Circuit Breaker (MCB) 4P 25A B-Curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.5 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 20 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85420
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 250 V DC
- Connections - terminals (rigid)
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Connections - terminals (flexible)
- Single terminal (top or bottom), for 1 cable(s), 1…16 mm², flexible, copper
- Ambient air temperature for operation
- -35…70 °C
