Schneider Electric A9F85463 Miniature Circuit Breaker

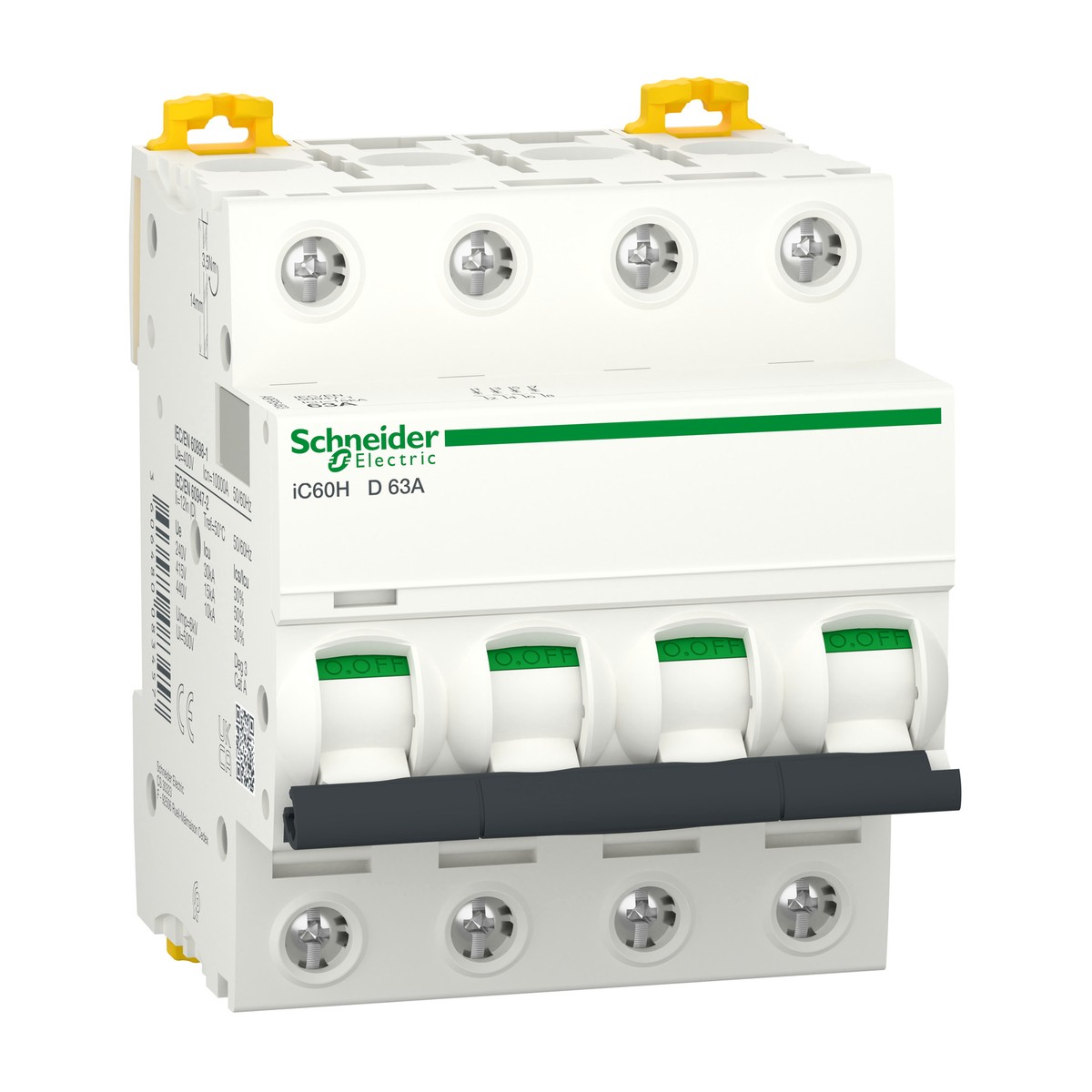

Schneider Electric A9F85463 Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN). The Schneider Electric A9F85463 Acti9 iC60H Miniature Circuit Breaker is engineered for robust and reliable protection in diverse electrical distribution circuits. As a 4-pole, 63A D-curve thermal-magnetic MCB, it offers dual breaking capacity ratings: 10000A (Icn) conforming to IEC/EN 60898-1 at 400V AC, and a high 15kA (Icu) conforming to IEC/EN 60947-2 at 380-415V AC. This versatility makes it ideal for a wide range of applications requiring stringent overload and short-circuit protection. Compatible with both AC (220-240V, 380-415V, 440V) and DC (up to 250V) networks at 50/60 Hz, the A9F85463 is designed for easy clip-on mounting onto a 35mm DIN rail. It ensures safe operation with an IP20 degree of protection and suitability for isolation according to industry standards. This Schneider Electric MCB is a crucial component in critical infrastructure across the Middle East, including sectors like cement production, oil and gas, water treatment, food and beverage processing, textiles, and building services, providing dependable circuit integrity. For comprehensive protection and performance, request a quote for the Schneider Electric A9F85463.
Details
- Brand: Schneider Electric
- Part number: A9F85463
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
- Schneider Electric A9F88316 — Acti9 iC60H MCB, 3P, 16A, B curve
- Schneider Electric A9F88332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-Curve
- Schneider Electric A9F88363 — iC60H Miniature Circuit Breaker 3P 63A B-Curve
- Schneider Electric A9F88406 — iC60H 4P 6A B-curve 10000A/15kA Miniature Circuit Breaker
- Schneider Electric A9F88425 — Miniature Circuit Breaker (MCB) 4P 25A B-Curve
- Schneider Electric A9F88463 — Miniature Circuit Breaker Acti9 iC60H 4P 63A B-curve
- Schneider Electric A9F89110 — iC60H Miniature Circuit Breaker 1P 10A C-Curve
- Schneider Electric A9F89125 — Miniature Circuit Breaker iC60H 1P 25A C-Curve 10kA (IEC/EN 60898-1)
- Schneider Electric A9F89140 — Miniature circuit breaker 1P 40A C curve 10000A
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.5 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- Dimensions (H x W x D)
- 85 Mm x 72 Mm x 78.5 Mm
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85463
- Number of protected poles
- 4
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage AC
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- [Ics] rated service breaking capacity
- 7.5 KA 50 % x Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
