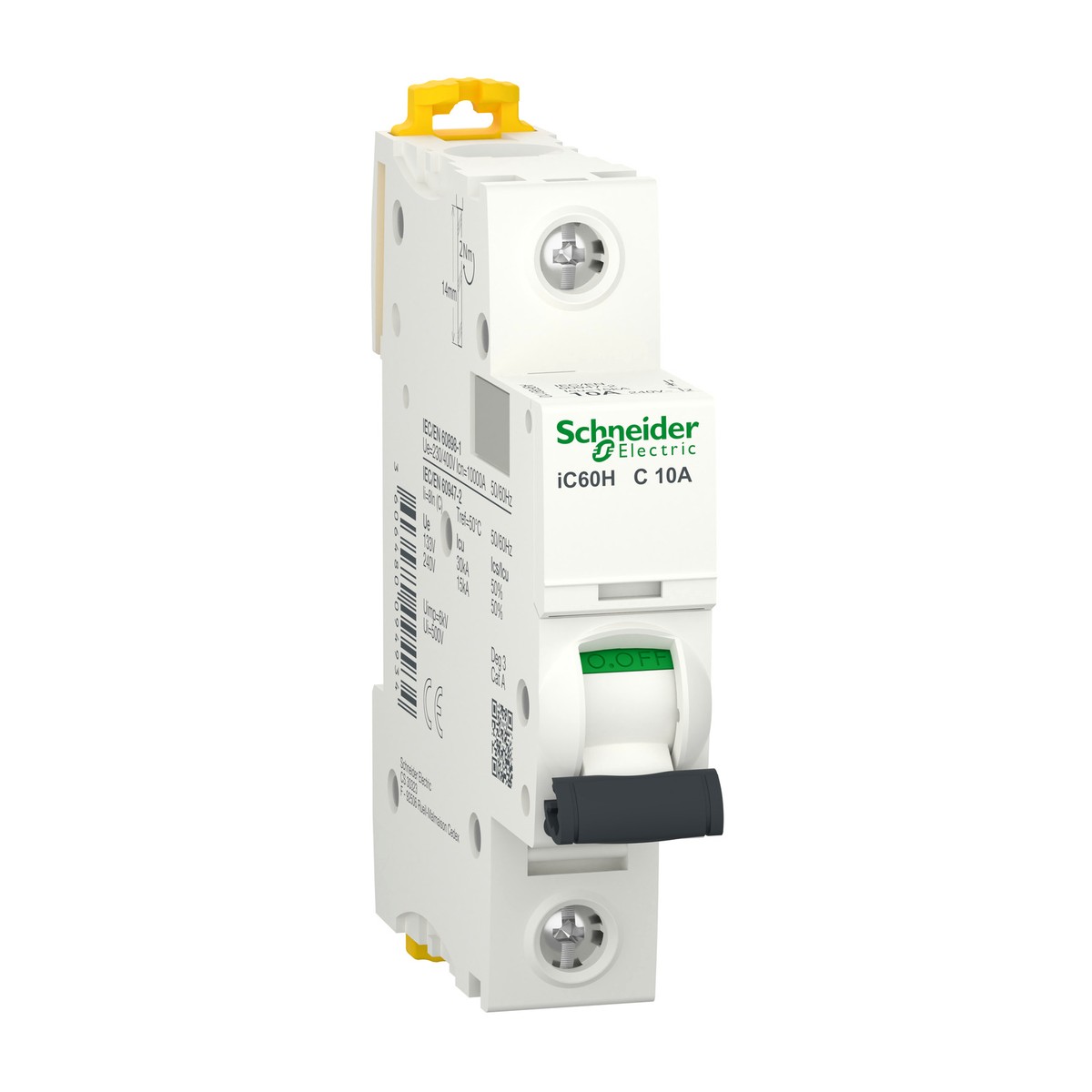

Schneider Electric A9F89110 Miniature Circuit Breaker
Schneider Electric A9F89110 iC60H Miniature Circuit Breaker 1P 10A C-Curve. The Schneider Electric A9F89110 Acti9 iC60H Miniature Circuit Breaker is a high-performance 1-pole device engineered for reliable protection in final distribution circuits. This MCB features a 10A rated current with a C tripping curve, providing robust thermal-magnetic protection for both AC and DC networks. Designed for universal application, it supports operational voltages up to 240V AC and 72V DC, making it highly versatile for various electrical systems. Key specifications include a breaking capacity of 10000A (Icn) conforming to IEC/EN 60898-1 at 230V AC, and 15kA (Icu) conforming to EN/IEC 60947-2 at 220-240V AC, ensuring superior short-circuit fault protection. With an IP20 rating and a wide operating temperature range of -35 to 70°C, it is suitable for demanding environments. This Schneider Electric A9F89110 MCB is ideal for critical applications across Egypt and the Gulf, including industrial automation, building services, water treatment facilities, oil and gas installations, and food and beverage manufacturing. It offers secure DIN-rail mounting and easy terminal connections for cables up to 25mm². For detailed technical specifications or to request a quote for the Schneider Electric A9F89110, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F89110
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F89125 — Miniature Circuit Breaker iC60H 1P 25A C-Curve 10kA (IEC/EN 60898-1)
- Schneider Electric A9F89140 — Miniature circuit breaker 1P 40A C curve 10000A
- Schneider Electric A9F89163 — Miniature circuit breaker iC60H 1P 63A C-curve
- Schneider Electric A9F89310 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 10A C-curve
- Schneider Electric A9F89320 — Miniature Circuit Breaker (MCB) iC60H 3P 20A C Curve
- Schneider Electric A9F89450 — MCB 4P 50A C curve 10000A (IEC/EN 60898-1) 15kA (IEC/EN 60947-2)
- Schneider Electric A9F89463 — Miniature Circuit Breaker (MCB) 4P 63A C-curve
- Schneider Electric A9F73102 — Miniature Circuit Breaker iC60N 1P 2A B-curve
- Schneider Electric A9F73103 — MCB Acti9 iC60N 1P 3A B-Curve
- Schneider Electric A9F73132 — Acti9 iC60N Miniature Circuit Breaker, 1P, 32A, B-curve
- Schneider Electric A9F73163 — Miniature Circuit Breaker 1P 63A B-Curve
- Schneider Electric A9F73206 — Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- [In] rated current
- 10 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F89110
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
