A9F73103

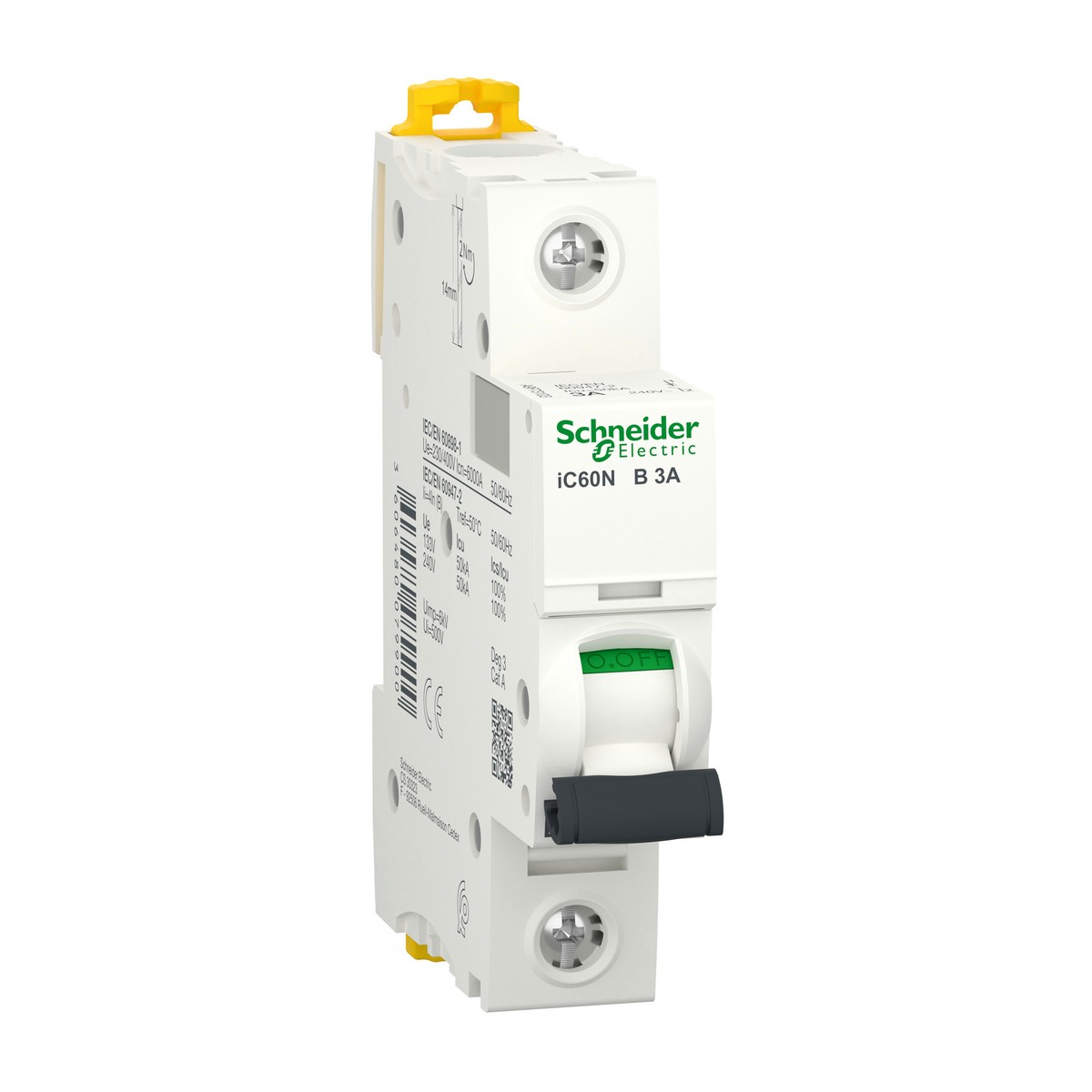

Schneider Electric A9F73103 MCB Acti9 iC60N 1P 3A B-Curve. The Schneider Electric A9F73103 Acti9 iC60N Miniature Circuit Breaker (MCB) offers robust, 1-pole protection for final distribution circuits. This 3A device features a B trip curve and thermal-magnetic technology for reliable overload and short-circuit protection. It operates across 220-240 V AC (50/60 Hz) and up to 72 V DC. Key specifications include a breaking capacity of 6000 A Icn (IEC/EN 60898-1 at 230 V AC) and 50 kA Icu (IEC/EN 60947-2 at 220-240 V AC). Designed for DIN rail mounting with IP20 protection and suitability for isolation, the A9F73103 ensures safety and straightforward installation. This essential Schneider Electric component is ideal for critical electrical infrastructure in Egypt and the Gulf, serving industries such as cement, oil and gas, water treatment, food and beverage, and building services. For dependable circuit protection, contact us to request a quote for the Acti9 iC60N.
Details
- Brand: Schneider Electric
- Part number: A9F73103
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73132 — Acti9 iC60N Miniature Circuit Breaker, 1P, 32A, B-curve
- Schneider Electric A9F73163 — Miniature Circuit Breaker 1P 63A B-Curve
- Schneider Electric A9F73206 — Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve
- Schneider Electric A9F73220 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 20A B-curve
- Schneider Electric A9F73232 — Miniature Circuit Breaker (MCB) 2P 32A B-curve
- Schneider Electric A9F73302 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A B-curve
- Schneider Electric A9F73303 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 3A B-curve
- Schneider Electric A9F73310 — Acti9 iC60N Miniature Circuit Breaker 3P 10A B curve
- Schneider Electric A9F73313 — Miniature Circuit Breaker iC60N, 3P 13A, B Curve
- Schneider Electric A9F73332 — Miniature circuit breaker 3P 32A B-curve 6000A 10kA
- Schneider Electric A9F73363 — Acti9 iC60N Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F73404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A B-Curve
Specifications
- Width
- 18 mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Poles description
- 1P
- Tightening torque
- 2 N.M
- [In] rated current
- 3 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- A9F73103
- Number of protected poles
- 1
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
