A9F73206

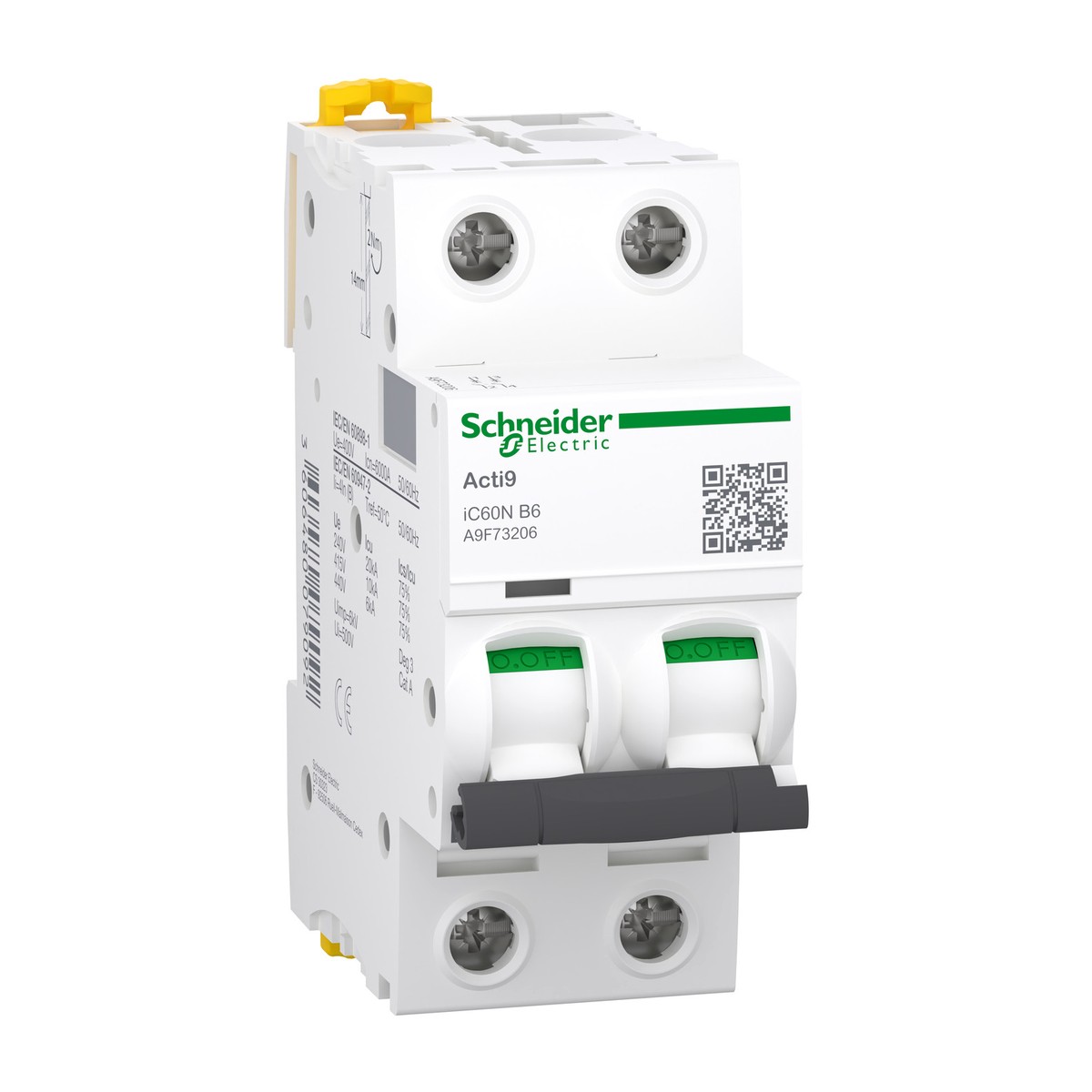

Schneider Electric A9F73206 Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve. The Schneider Electric A9F73206 is a robust Miniature Circuit Breaker (MCB) from the renowned Acti9 iC60N range, meticulously engineered for reliable protection in final distribution circuits. This 2P, 6A, B-curve thermal-magnetic breaker ensures optimal safety and performance in both AC and DC networks operating at 50/60 Hz. Key specifications include a breaking capacity of 6000 A Icn at 400 V AC conforming to EN/IEC 60898-1, and 10 kA Icu at 380-415 V AC or <= 125 V DC conforming to EN/IEC 60947-2. Engineered for versatility, the A9F73206 supports a wide operational voltage range from 12-440 V AC and up to 125 V DC, making it highly adaptable for various applications across Egypt and the Gulf region. Its DIN-rail mounting and compact 36 mm width facilitate easy installation in standard electrical panels. With an IP20 rating (IP40 in modular enclosures) and an operating temperature range of -35 to 70 °C, this MCB is built for durability in demanding environments. Ideal for commercial buildings, industrial facilities, and infrastructure projects, including water treatment, oil and gas, and food and beverage sectors, it provides essential overcurrent protection.
Details
- Brand: Schneider Electric
- Part number: A9F73206
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73220 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 20A B-curve
- Schneider Electric A9F73232 — Miniature Circuit Breaker (MCB) 2P 32A B-curve
- Schneider Electric A9F73302 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A B-curve
- Schneider Electric A9F73303 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 3A B-curve
- Schneider Electric A9F73310 — Acti9 iC60N Miniature Circuit Breaker 3P 10A B curve
- Schneider Electric A9F73313 — Miniature Circuit Breaker iC60N, 3P 13A, B Curve
- Schneider Electric A9F73332 — Miniature circuit breaker 3P 32A B-curve 6000A 10kA
- Schneider Electric A9F73363 — Acti9 iC60N Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F73404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A B-Curve
- Schneider Electric A9F73406 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 6A B-curve
- Schneider Electric A9F73420 — Acti9 iC60N Miniature Circuit Breaker
- Schneider Electric A9F73425 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 25A, B-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F73206
- [Ue] rated operational voltage AC
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2 AC)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2 DC)
- 10 KA Icu at <= 125 V DC
