A9F73302

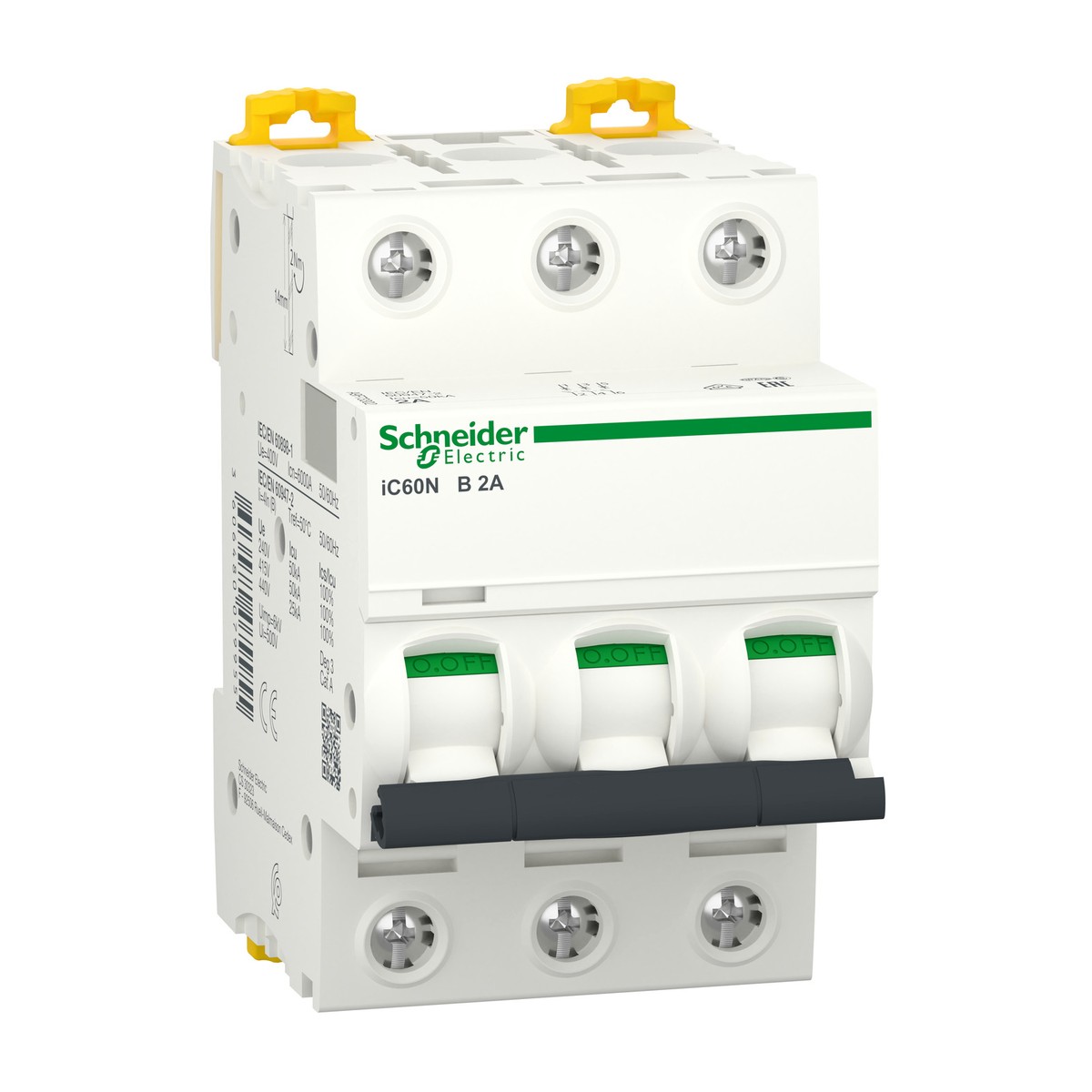

Schneider Electric A9F73302 Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A B-curve. The Schneider Electric A9F73302 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60N range, designed for reliable protection of final distribution circuits. This 3-pole, 2-ampere, B-curve MCB offers essential safeguarding against overcurrents and short circuits, ensuring the safety and operational continuity of electrical installations. It features a thermal-magnetic trip unit and is suitable for both AC and DC networks. Key specifications include an impressive breaking capacity of 6000 A (IEC/EN 60898-1 at 400 V AC) and 50 kA (IEC/EN 60947-2 at 380-415 V AC), alongside suitability for isolation. With support for operational voltages including 220-240 V AC and 380-415 V AC at 50/60 Hz, it is perfectly suited for diverse applications across Egypt and the Gulf. Easily mounted on a 35 mm DIN rail, this device is ideal for building services, water treatment plants, food and beverage facilities, and light industrial control panels. For competitive pricing and availability of the Schneider Electric A9F73302, please request a quote.
Details
- Brand: Schneider Electric
- Part number: A9F73302
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73303 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 3A B-curve
- Schneider Electric A9F73310 — Acti9 iC60N Miniature Circuit Breaker 3P 10A B curve
- Schneider Electric A9F73313 — Miniature Circuit Breaker iC60N, 3P 13A, B Curve
- Schneider Electric A9F73332 — Miniature circuit breaker 3P 32A B-curve 6000A 10kA
- Schneider Electric A9F73363 — Acti9 iC60N Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F73404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A B-Curve
- Schneider Electric A9F73406 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 6A B-curve
- Schneider Electric A9F73420 — Acti9 iC60N Miniature Circuit Breaker
- Schneider Electric A9F73425 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 25A, B-curve
- Schneider Electric A9F73432 — Miniature circuit breaker Acti9 iC60N 4P 32A B curve
- Schneider Electric A9F73440 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 40A B curve
- Schneider Electric A9F74101 — Miniature Circuit Breaker (MCB) iC60N 1P 1A C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 (conforming to IEC 60529), IP40 in modular enclosure (Insulation class II conforming to IEC 60529)
- Manufacturer part number
- A9F73302
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
