A9F73303

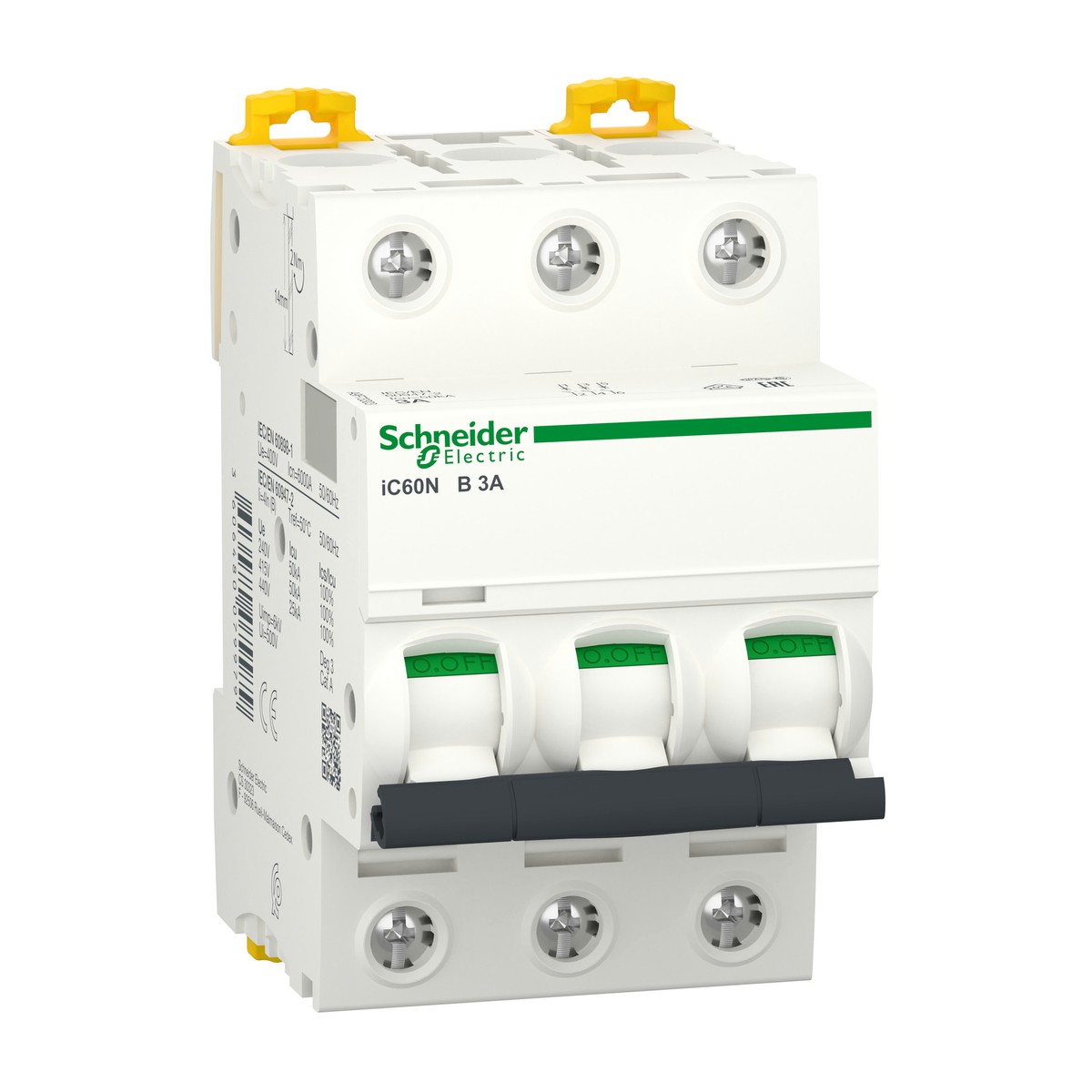

Schneider Electric A9F73303 Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 3A B-curve. The Schneider Electric A9F73303 Acti9 iC60N is a robust 3-pole miniature circuit breaker (MCB) designed for reliable circuit protection in final distribution applications. This high-performance device safeguards electrical installations against overcurrents and short circuits, ensuring system integrity and operational continuity. Featuring a 3A rated current and a B-type tripping curve, the A9F73303 is ideal for protecting circuits with general-purpose loads, preventing nuisance tripping while providing quick response to fault conditions. Engineered to meet demanding international standards, this MCB offers a breaking capacity of 6000A (IEC/EN 60898-1) at 400V AC and 50kA (EN/IEC 60947-2) at 380-415V AC, alongside 10kA for <=180V DC networks. Its versatility with both AC (50/60 Hz, up to 440V) and DC (up to 180V) applications makes it suitable for a wide range of industrial and commercial settings. The DIN-rail mountable design simplifies installation, while an IP20/IP40 enclosure rating ensures protection. This essential component finds widespread use across Egyptian and Gulf industries such as cement, oil and gas, water treatment, food and beverage, textiles, and various building services. For expert advice and competitive pricing, please request a quote.
Details
- Brand: Schneider Electric
- Part number: A9F73303
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73310 — Acti9 iC60N Miniature Circuit Breaker 3P 10A B curve
- Schneider Electric A9F73313 — Miniature Circuit Breaker iC60N, 3P 13A, B Curve
- Schneider Electric A9F73332 — Miniature circuit breaker 3P 32A B-curve 6000A 10kA
- Schneider Electric A9F73363 — Acti9 iC60N Miniature Circuit Breaker 3P 63A B-curve
- Schneider Electric A9F73404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A B-Curve
- Schneider Electric A9F73406 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 6A B-curve
- Schneider Electric A9F73420 — Acti9 iC60N Miniature Circuit Breaker
- Schneider Electric A9F73425 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 25A, B-curve
- Schneider Electric A9F73432 — Miniature circuit breaker Acti9 iC60N 4P 32A B curve
- Schneider Electric A9F73440 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 40A B curve
- Schneider Electric A9F74101 — Miniature Circuit Breaker (MCB) iC60N 1P 1A C-curve
- Schneider Electric A9F74103 — 1P 3A C-curve Miniature Circuit Breaker
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 ; 50 KA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 ; 10 KA Icu at <= 180 V DC conforming to EN/IEC 60947-2
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 3 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper ; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper
- IP degree of protection
- IP20 conforming to IEC 60529 ; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F73303
- Number of protected poles
- 3
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 220...240 V AC 50/60 Hz ; 380...415 V AC 50/60 Hz ; <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
