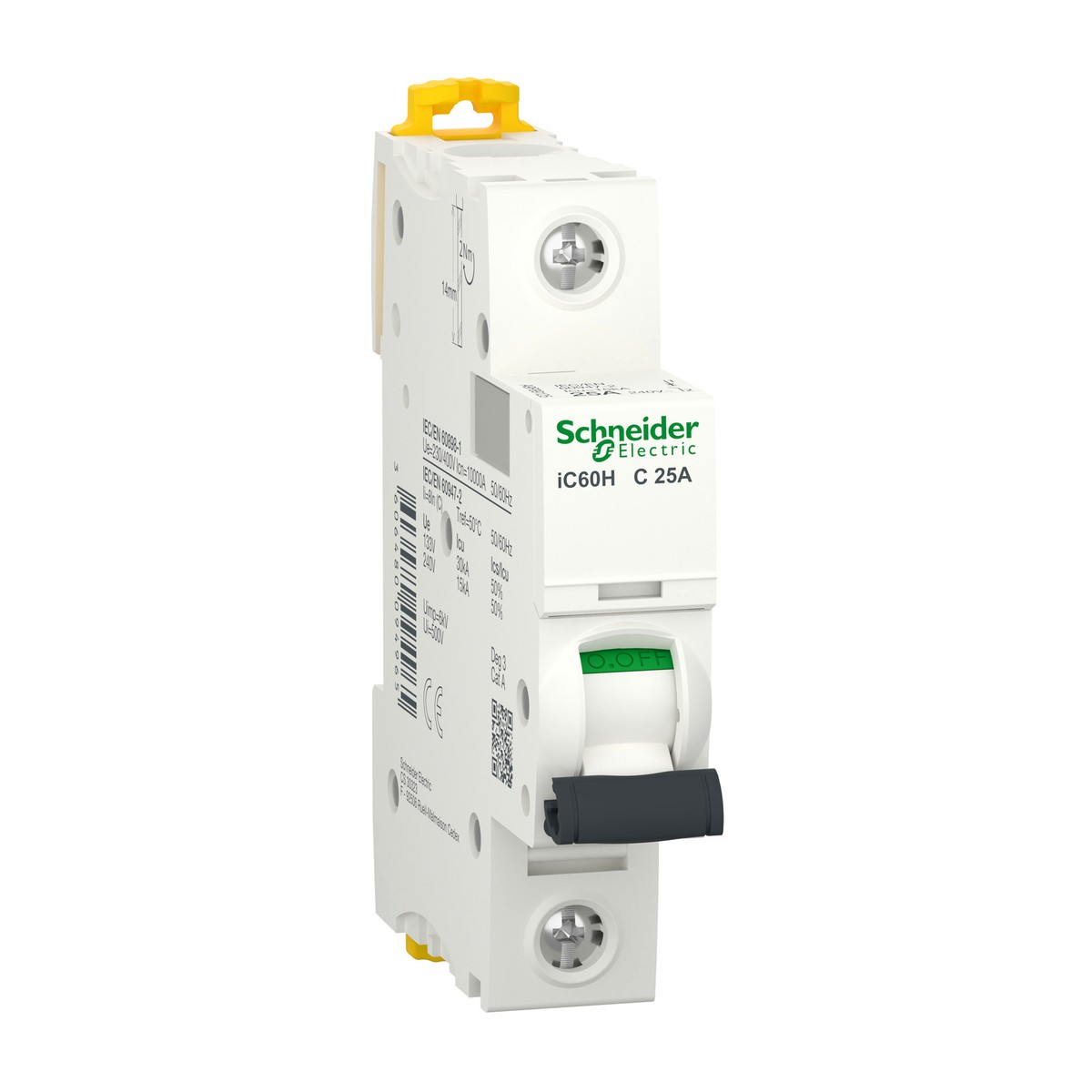

Schneider Electric A9F89125 Miniature Circuit Breaker
Schneider Electric A9F89125 Miniature Circuit Breaker iC60H 1P 25A C-Curve 10kA (IEC/EN 60898-1). The Schneider Electric A9F89125 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable overcurrent protection in final distribution circuits. This 1-pole (1P) device features a 25A rated current and a C-curve thermal-magnetic trip unit, offering effective protection against short-circuits and overload conditions. Engineered to meet international standards, it boasts a breaking capacity of 10000A (IEC/EN 60898-1 at 230V AC) and 15kA (IEC/EN 60947-2 at 220-240V AC). Its versatile operational voltage ratings, including 12-60V AC/DC and 220-240V AC 50/60 Hz, ensure broad compatibility. Suitable for isolation and DIN rail mounting, the Schneider Electric A9F89125 provides a secure and easy-to-install solution. It's an ideal component for electrical panels in critical infrastructure across Egypt and the Gulf region, including sectors like cement production, oil and gas facilities, water treatment plants, food and beverage processing, and general building services. For comprehensive electrical safety and performance, request a quote for this high-quality MCB.
Details
- Brand: Schneider Electric
- Part number: A9F89125
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F89140 — Miniature circuit breaker 1P 40A C curve 10000A
- Schneider Electric A9F89163 — Miniature circuit breaker iC60H 1P 63A C-curve
- Schneider Electric A9F89310 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 10A C-curve
- Schneider Electric A9F89320 — Miniature Circuit Breaker (MCB) iC60H 3P 20A C Curve
- Schneider Electric A9F89450 — MCB 4P 50A C curve 10000A (IEC/EN 60898-1) 15kA (IEC/EN 60947-2)
- Schneider Electric A9F89463 — Miniature Circuit Breaker (MCB) 4P 63A C-curve
- Schneider Electric A9F73102 — Miniature Circuit Breaker iC60N 1P 2A B-curve
- Schneider Electric A9F73103 — MCB Acti9 iC60N 1P 3A B-Curve
- Schneider Electric A9F73132 — Acti9 iC60N Miniature Circuit Breaker, 1P, 32A, B-curve
- Schneider Electric A9F73163 — Miniature Circuit Breaker 1P 63A B-Curve
- Schneider Electric A9F73206 — Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve
- Schneider Electric A9F73220 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 20A B-curve
Specifications
- Width
- 18 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Trip curve
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 1P
- Tightening torque
- 2 N.M
- Rated current [In]
- 25 A
- Trip unit technology
- Thermal-magnetic
- Operating temperature
- -35…70 °C
- IP degree of protection
- IP20
- Manufacturer part number
- A9F89125
- Suitability for isolation
- Yes
- Terminal capacity (rigid)
- 1…25 mm²
- Terminal capacity (flexible)
- 1…16 mm²
- Rated operational voltage AC [Ue]
- 12...60 V, 100...133 V, 220...240 V 50/60 Hz
- Rated operational voltage DC [Ue]
- 12...60 V, 60...72 V
- Breaking capacity (IEC/EN 60898-1)
- 10000 A at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 kA at 220...240 V AC 50/60 Hz
