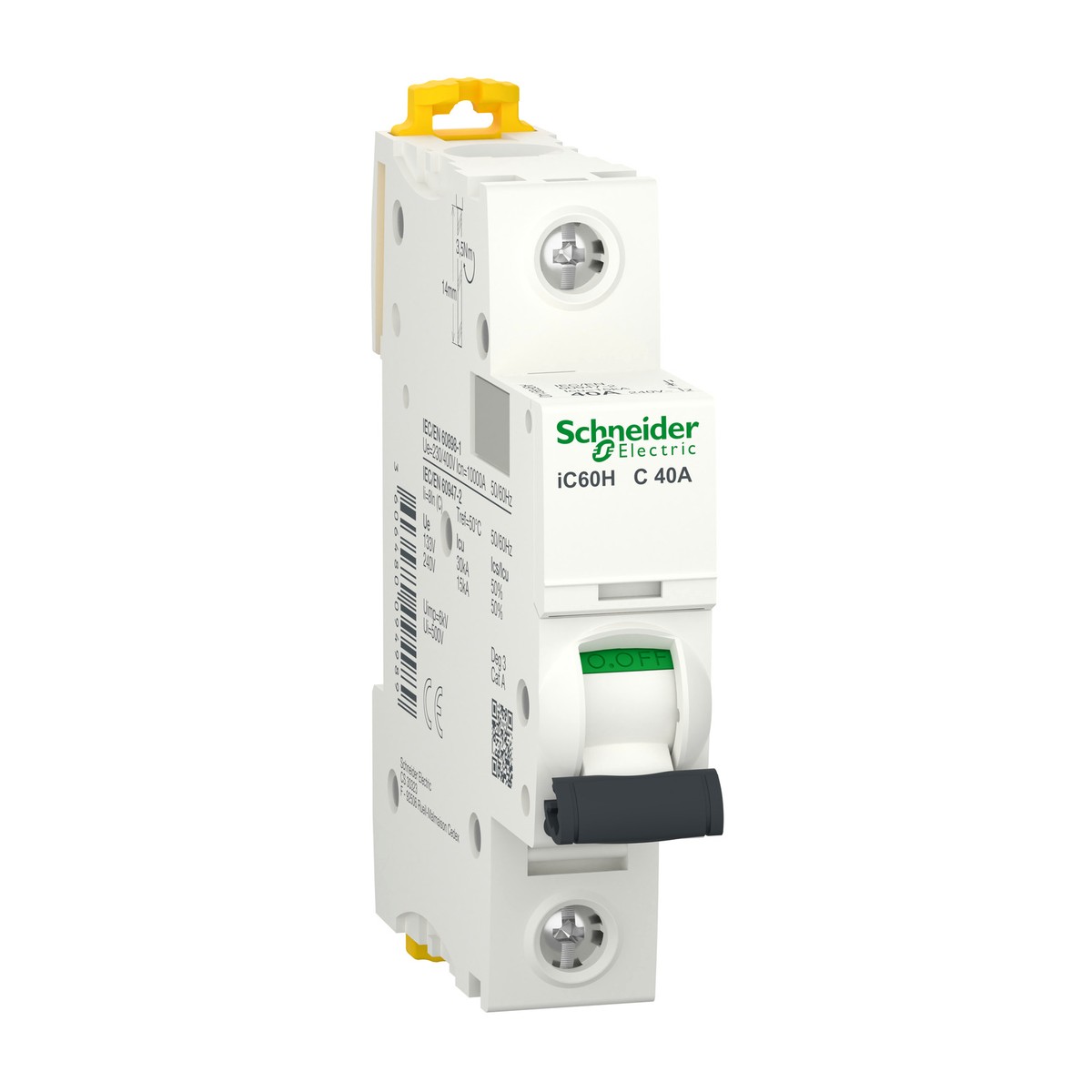

Schneider Electric A9F89140 Miniature Circuit Breaker
Schneider Electric A9F89140 Miniature circuit breaker 1P 40A C curve 10000A. The Schneider Electric A9F89140 Acti9 iC60H Miniature Circuit Breaker provides robust and reliable protection for electrical circuits in diverse applications. This 1-pole, 40 Amp, C-curve MCB is engineered for both AC and DC networks, featuring thermal-magnetic trip unit technology to effectively guard against overcurrents and short-circuits. It boasts a breaking capacity of 10000A (IEC/EN 60898-1) at 230V AC and 15kA (IEC/EN 60947-2) at 220-240V AC, making it suitable for standard distribution panels operating at the typical voltages found across Egypt and the Gulf. Designed for easy 35mm DIN rail mounting, its compact 18mm width and IP20 protection ensure versatile installation. Typical applications include final distribution in commercial buildings, light industrial facilities, water treatment plants, and general infrastructure projects within the region. Its suitability for isolation further enhances safety and compliance. For a dependable solution in circuit protection, consider the Schneider Electric A9F89140.
Details
- Brand: Schneider Electric
- Part number: A9F89140
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F89163 — Miniature circuit breaker iC60H 1P 63A C-curve
- Schneider Electric A9F89310 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 10A C-curve
- Schneider Electric A9F89320 — Miniature Circuit Breaker (MCB) iC60H 3P 20A C Curve
- Schneider Electric A9F89450 — MCB 4P 50A C curve 10000A (IEC/EN 60898-1) 15kA (IEC/EN 60947-2)
- Schneider Electric A9F89463 — Miniature Circuit Breaker (MCB) 4P 63A C-curve
- Schneider Electric A9F73102 — Miniature Circuit Breaker iC60N 1P 2A B-curve
- Schneider Electric A9F73103 — MCB Acti9 iC60N 1P 3A B-Curve
- Schneider Electric A9F73132 — Acti9 iC60N Miniature Circuit Breaker, 1P, 32A, B-curve
- Schneider Electric A9F73163 — Miniature Circuit Breaker 1P 63A B-Curve
- Schneider Electric A9F73206 — Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve
- Schneider Electric A9F73220 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 20A B-curve
- Schneider Electric A9F73232 — Miniature Circuit Breaker (MCB) 2P 32A B-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Poles description
- 1P
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F89140
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- [Ue] rated operational voltage (AC)
- 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
