A9F73102

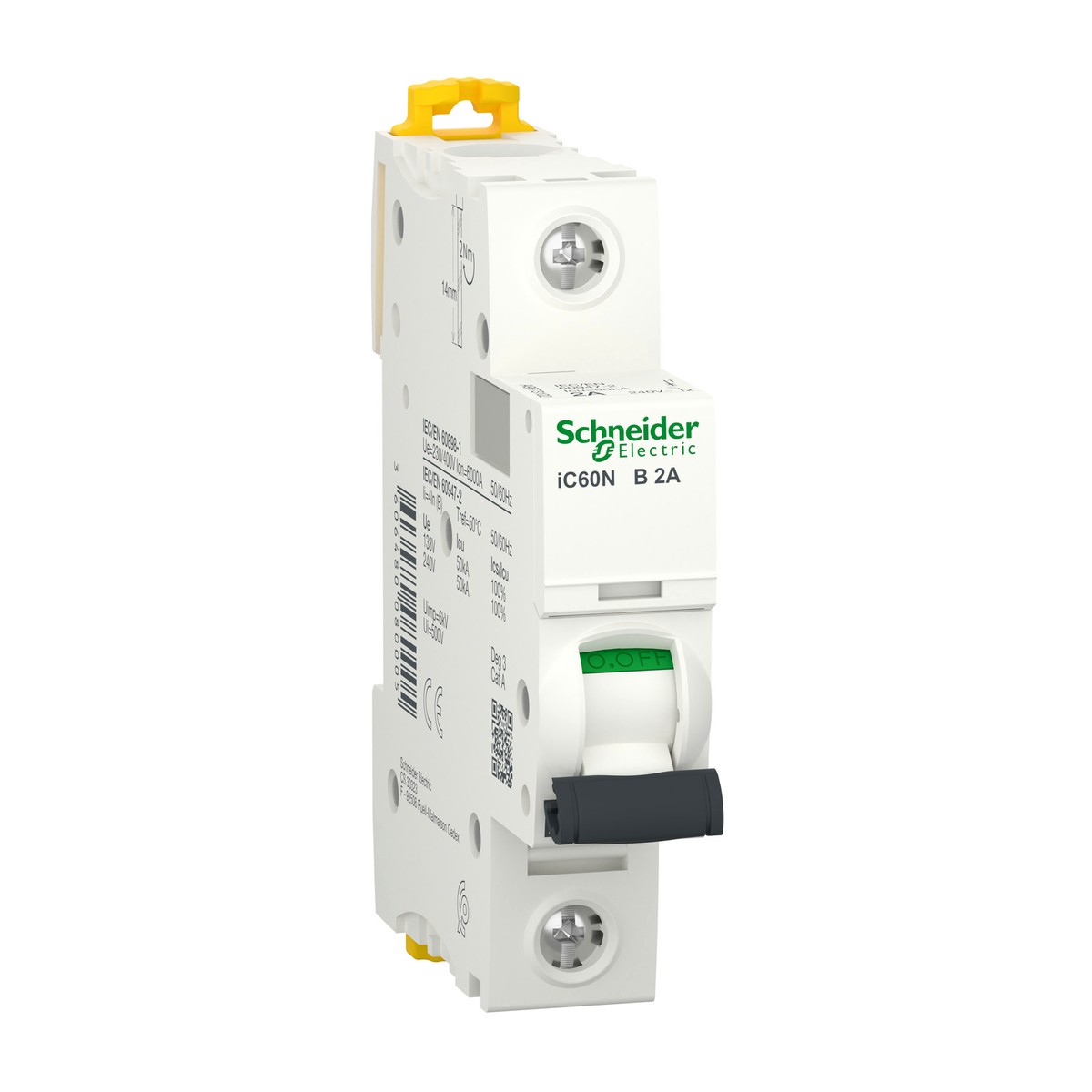

Schneider Electric A9F73102 Miniature Circuit Breaker iC60N 1P 2A B-curve. The Schneider Electric A9F73102 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 1-pole, 2 Amp, B-curve MCB offers exceptional performance with a breaking capacity of 6000A according to IEC/EN 60898-1 and a high industrial breaking capacity of 50kA conforming to IEC/EN 60947-2. It features thermal-magnetic trip unit technology, ensuring comprehensive protection against both overcurrents and short circuits in AC and DC networks. Ideal for a wide range of operational voltages including 220-240V AC, this Schneider Electric A9F73102 MCB is perfectly suited for electrical installations across various sectors in Egypt and the Gulf. Its DIN rail mounting ensures easy installation and compatibility with standard electrical panels found in industries such as cement, oil and gas, water treatment, food and beverage, textiles, and commercial building services. With an IP20 rating, suitable for temperatures from -35 to 70 °C, and suitable for isolation, this MCB is engineered for durability and safety in demanding environments.
Details
- Brand: Schneider Electric
- Part number: A9F73102
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73103 — MCB Acti9 iC60N 1P 3A B-Curve
- Schneider Electric A9F73132 — Acti9 iC60N Miniature Circuit Breaker, 1P, 32A, B-curve
- Schneider Electric A9F73163 — Miniature Circuit Breaker 1P 63A B-Curve
- Schneider Electric A9F73206 — Acti9 iC60N Miniature Circuit Breaker, 2P, 6A, B Curve
- Schneider Electric A9F73220 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 20A B-curve
- Schneider Electric A9F73232 — Miniature Circuit Breaker (MCB) 2P 32A B-curve
- Schneider Electric A9F73302 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A B-curve
- Schneider Electric A9F73303 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 3A B-curve
- Schneider Electric A9F73310 — Acti9 iC60N Miniature Circuit Breaker 3P 10A B curve
- Schneider Electric A9F73313 — Miniature Circuit Breaker iC60N, 3P 13A, B Curve
- Schneider Electric A9F73332 — Miniature circuit breaker 3P 32A B-curve 6000A 10kA
- Schneider Electric A9F73363 — Acti9 iC60N Miniature Circuit Breaker 3P 63A B-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- B
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 6000 A (IEC/EN 60898-1); 50 kA (IEC/EN 60947-2)
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Connections - terminals
- Single terminal (top or bottom), 1-25 mm² rigid; 1-16 mm² flexible
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F73102
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12-240 V AC 50/60 Hz; 12-72 V DC
- Ambient air temperature for operation
- -35…70 °C
