A9F85232

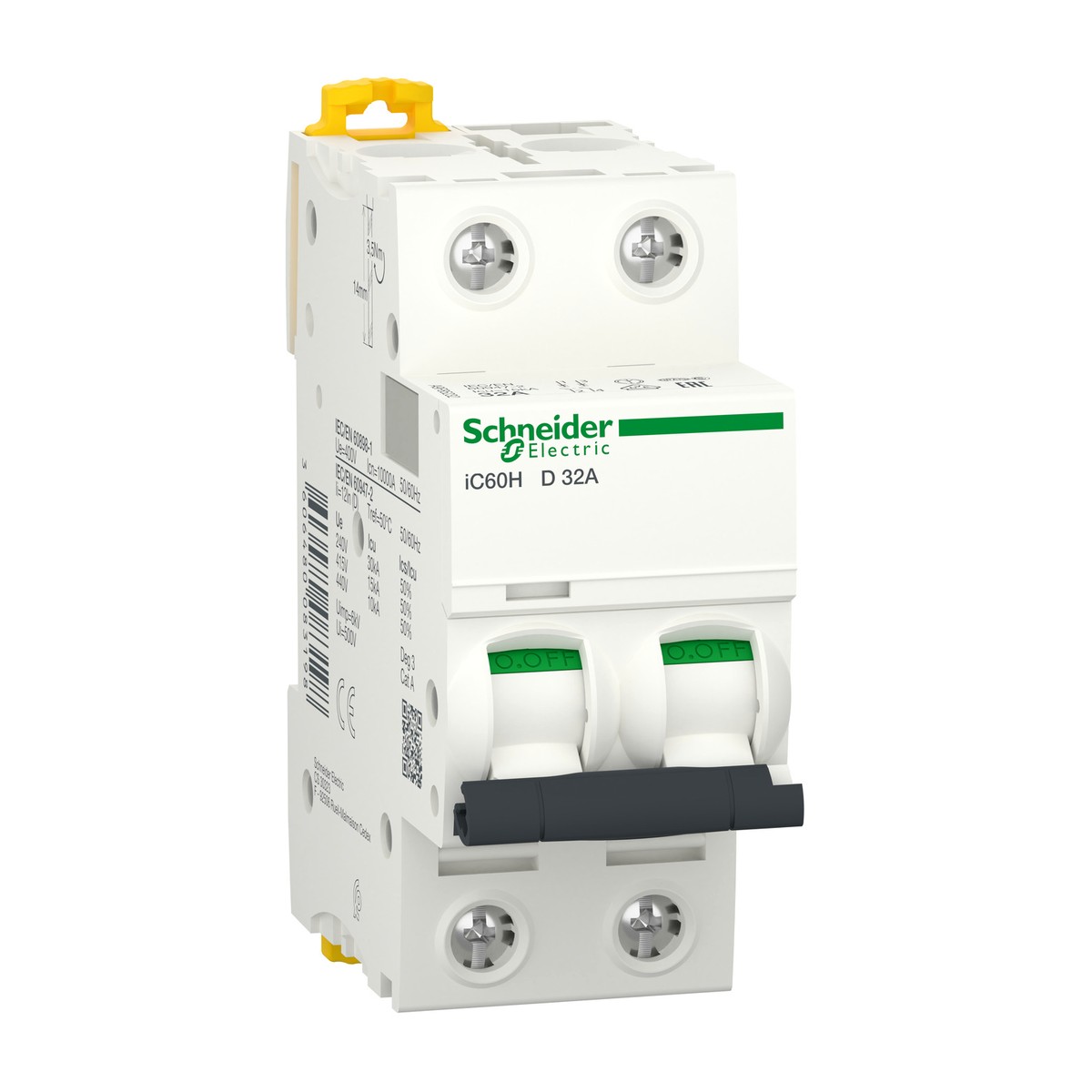

Schneider Electric A9F85232 Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve. The Schneider Electric A9F85232 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, specifically engineered for reliable protection in final distribution circuits. This 2-pole, 32A device features a D-curve thermal-magnetic trip unit, offering superior protection against overcurrents and short circuits. It boasts an impressive breaking capacity of 10000 A (Icn) conforming to IEC/EN 60898-1 at 400 V AC, and 15 kA (Icu) conforming to IEC/EN 60947-2 at 380-415 V AC, making it exceptionally well-suited for the demanding electrical environments found across Egypt and the Gulf region. The A9F85232 supports both AC and DC network types, with versatile rated operational voltages including 220-240 V AC and 380-415 V AC at 50/60 Hz, perfectly matching regional standards. Its DIN-rail mounting ensures easy installation, while an IP20 degree of protection guarantees durability. Suitable for diverse applications in industries such as cement, oil and gas, water treatment, food and beverage, textiles, and general building services. For comprehensive circuit protection solutions, request a quote for the Schneider Electric A9F85232.
Details
- Brand: Schneider Electric
- Part number: A9F85232
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Wire stripping length
- 14 Mm for top or bottom connection
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85232
- [Ue] rated operational voltage AC
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
