Schneider Electric A9F85416 Miniature Circuit Breaker

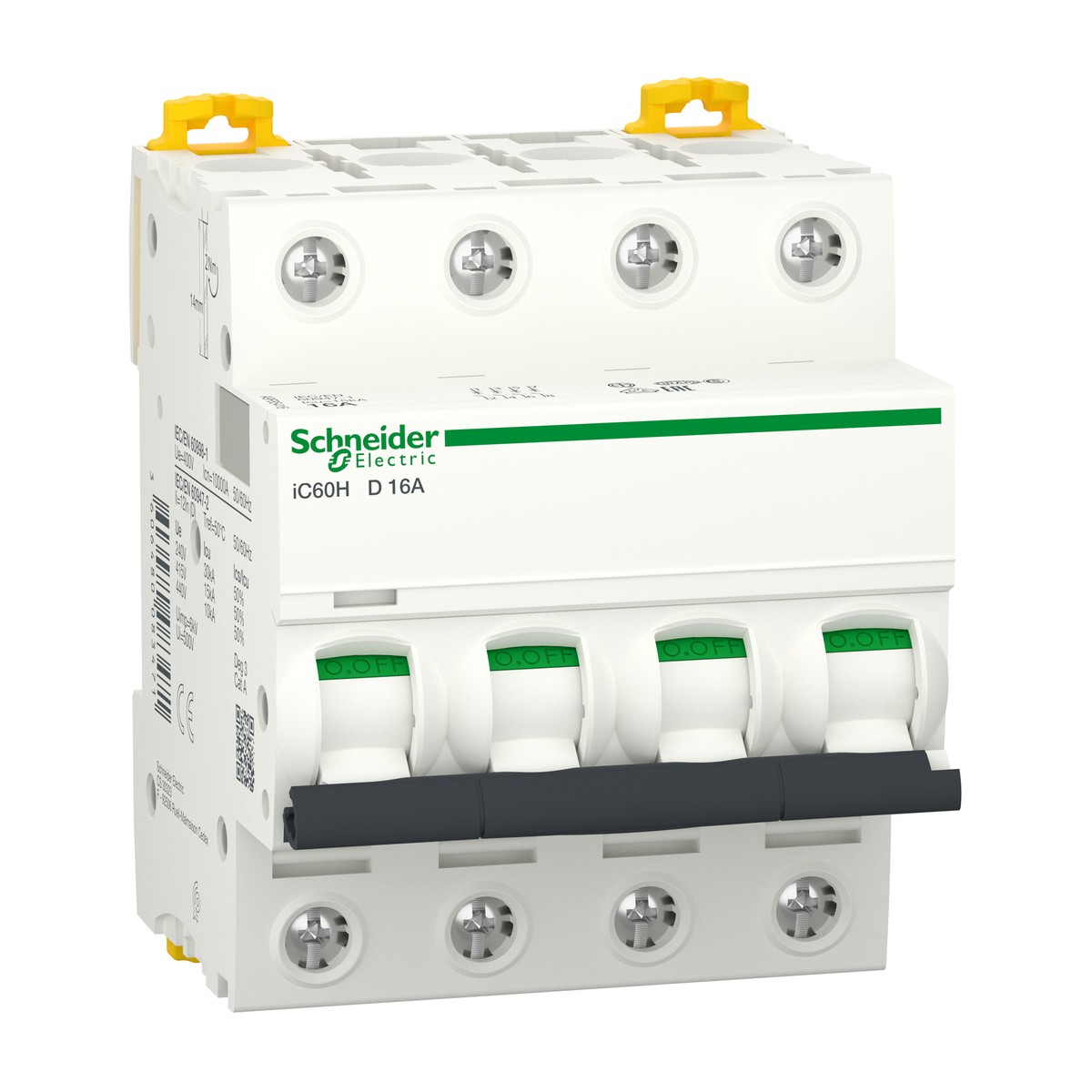

Schneider Electric A9F85416 Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve. The Schneider Electric A9F85416 is a robust 4-pole Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, designed for reliable protection in final distribution circuits. Featuring a 16 A rated current and a D-curve thermal-magnetic trip unit, this device effectively safeguards both AC and DC networks against overcurrents and short-circuits. It boasts a high breaking capacity of 15 kA Icu at 380-415 V AC (conforming to EN/IEC 60947-2) and 10000 A Icn at 400 V AC (conforming to EN/IEC 60898-1). The Schneider Electric A9F85416 is suitable for isolation and supports easy clip-on mounting to a 35 mm DIN rail. Its wide operational temperature range of -35 to 70 °C makes it an excellent choice for various industrial and commercial environments across Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment, cement, food and beverage, textiles, and general building services. For dependable electrical circuit protection, request a quote for the Schneider Electric A9F85416 today.
Details
- Brand: Schneider Electric
- Part number: A9F85416
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
- Schneider Electric A9F85450 — Miniature Circuit Breaker Acti9 iC60H 4P 50A D-Curve
- Schneider Electric A9F85463 — Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN)
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
- Schneider Electric A9F88316 — Acti9 iC60H MCB, 3P, 16A, B curve
- Schneider Electric A9F88332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A B-Curve
- Schneider Electric A9F88363 — iC60H Miniature Circuit Breaker 3P 63A B-Curve
- Schneider Electric A9F88406 — iC60H 4P 6A B-curve 10000A/15kA Miniature Circuit Breaker
Specifications
- Curve code
- D
- Net weight
- 0.5 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Magnetic tripping limit
- 12 x In +/- 20 %
- Manufacturer part number
- A9F85416
- Number of protected poles
- 4
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 kA Icu at 380-415 V AC 50/60 Hz
- Dimensions (Height x Width x Depth)
- 85 Mm x 72 Mm x 78.5 Mm
- Ambient air temperature for operation
- -35…70 °C
