Schneider Electric A9F85320 Miniature Circuit Breaker

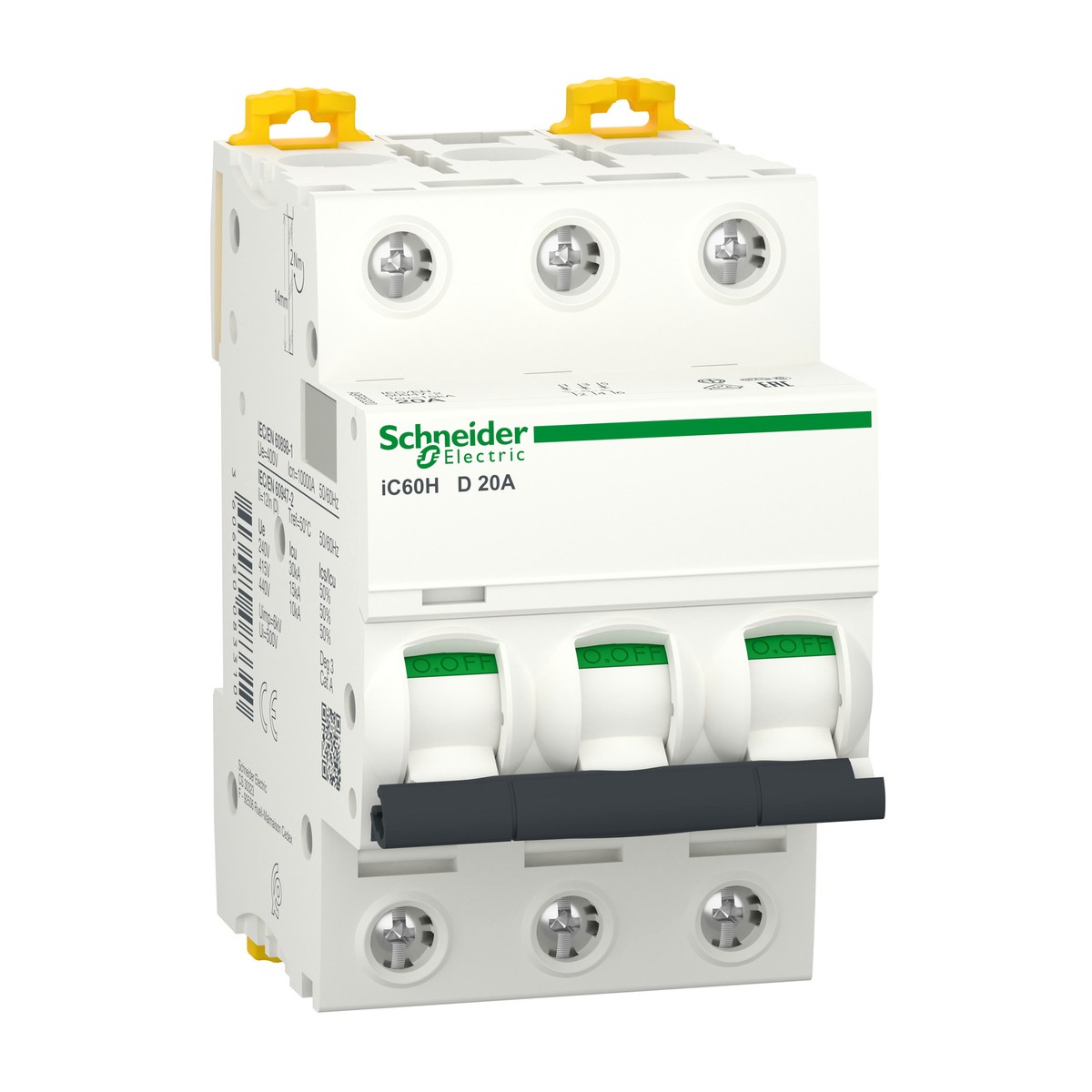

Schneider Electric A9F85320 Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve. The Schneider Electric A9F85320 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection of final distribution circuits. This 3-pole, 20A device features a D-curve thermal-magnetic trip unit, effectively safeguarding against overcurrents and short circuits. It offers a substantial breaking capacity of 10000 A Icn conforming to EN/IEC 60898-1 at 400 V AC, and 15 kA Icu conforming to EN/IEC 60947-2 at 380-415 V AC, making it suitable for demanding applications. Versatile in its operational voltage, the A9F85320 supports 12 to 440 V AC (50/60 Hz) and up to 180 V DC networks. Key features include DIN-rail mounting for easy installation, an IP20 degree of protection (IP40 in a modular enclosure), and clear suitability for isolation with a contact position indicator. Ideal for industrial and commercial environments across Egypt and the Gulf, including sectors like cement, oil and gas, water treatment, food and beverage, textiles, and building services, ensuring critical circuit protection.
Details
- Brand: Schneider Electric
- Part number: A9F85320
- Series: Acti9 iC60
- Category: Miniature Circuit-breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
- Schneider Electric A9F85450 — Miniature Circuit Breaker Acti9 iC60H 4P 50A D-Curve
- Schneider Electric A9F85463 — Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN)
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 20 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F85320
- Suitability for isolation
- Yes
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- [Ue] rated operational voltage (AC)
- 12...440 V AC 50/60 Hz
- [Ue] rated operational voltage (DC)
- <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
