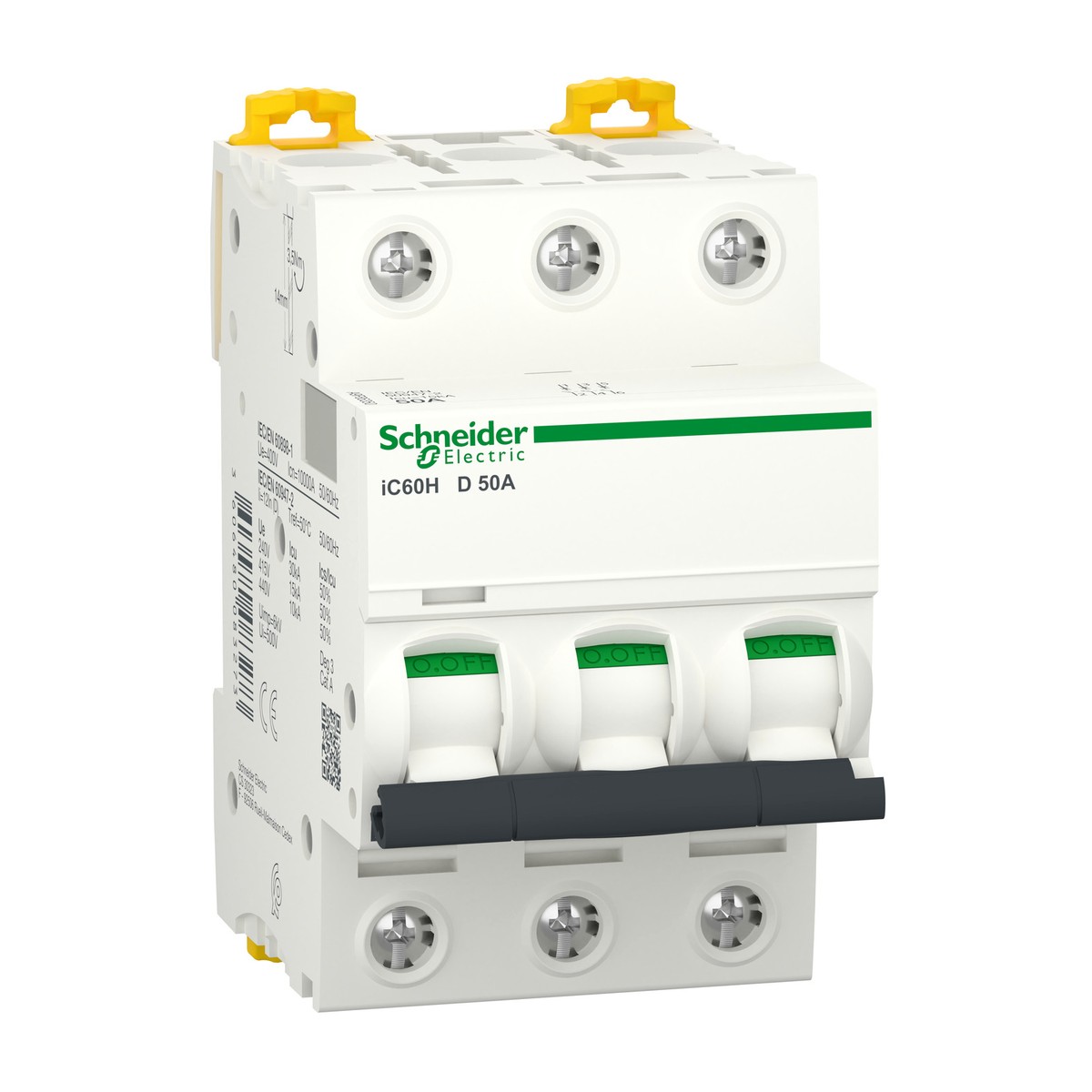

Schneider Electric A9F85350 Miniature Circuit Breaker
Schneider Electric A9F85350 Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve. The Schneider Electric A9F85350 Acti9 iC60H Miniature Circuit Breaker offers robust overcurrent protection for final distribution circuits. This 3-pole device features a 50A rated current and a D-curve thermal-magnetic trip unit, providing reliable protection against short circuits and overloads in both AC and DC networks. Designed for DIN-rail mounting, it offers a breaking capacity of 15 kA Icu at 380-415 V AC conforming to EN/IEC 60947-2, and 10000 A Icn at 400 V AC conforming to EN/IEC 60898-1, ensuring high performance in demanding environments. With an IP20 degree of protection and an operational temperature range from -35 to 70 °C, the A9F85350 is suitable for a wide array of applications in industrial panels, building services, and critical infrastructure across diverse sectors in Egypt and the Gulf, including cement, oil and gas, water treatment, and food and beverage facilities.
Details
- Brand: Schneider Electric
- Part number: A9F85350
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
- Schneider Electric A9F85450 — Miniature Circuit Breaker Acti9 iC60H 4P 50A D-Curve
- Schneider Electric A9F85463 — Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN)
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
- Schneider Electric A9F88316 — Acti9 iC60H MCB, 3P, 16A, B curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F85350
- [Ue] rated operational voltage
- 380-415 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
