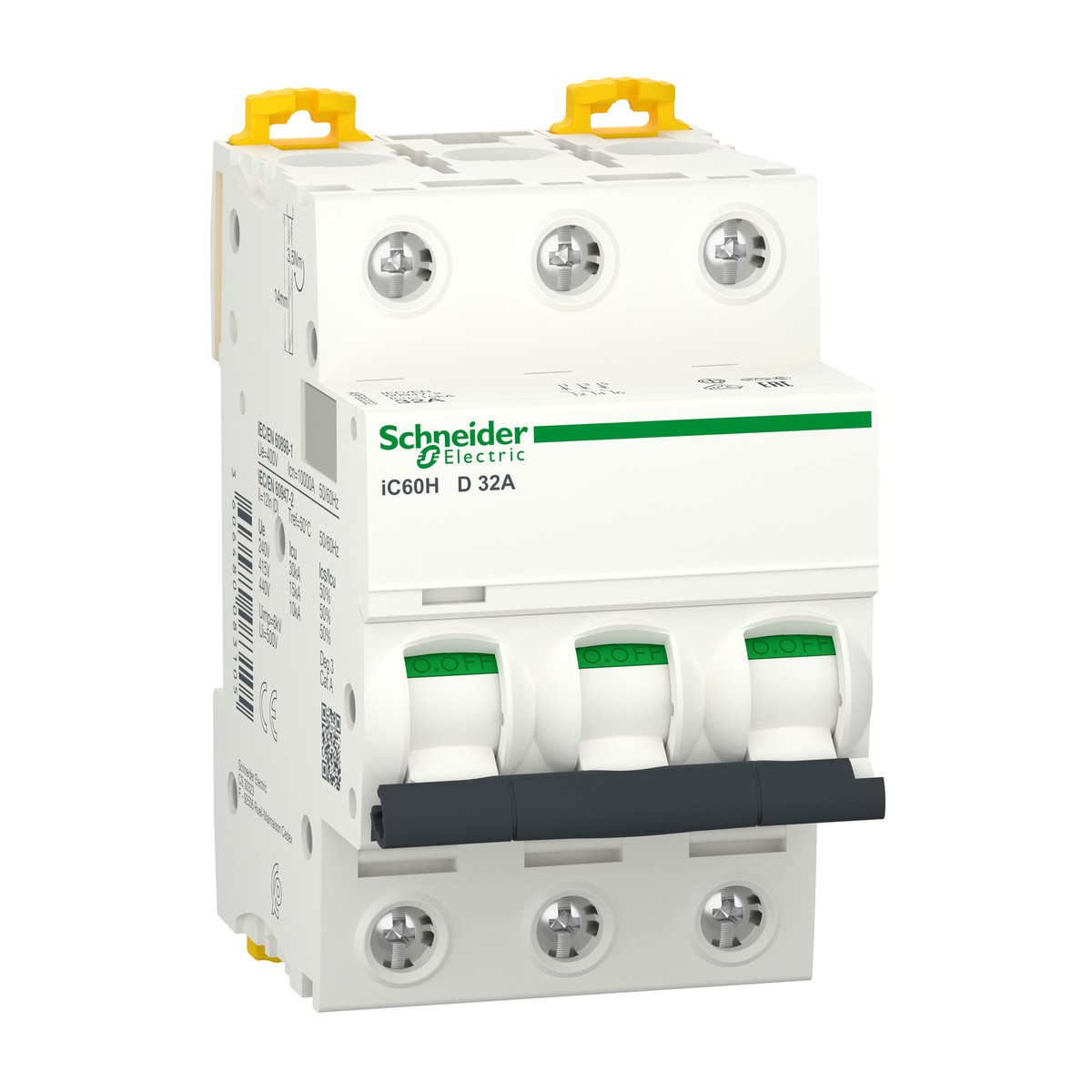

Schneider Electric A9F85332 Miniature Circuit Breaker
Schneider Electric A9F85332 Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve. The Schneider Electric A9F85332 is a robust 3-pole Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, specifically engineered for reliable final distribution circuit protection. With a 32A rated current and a D-curve trip characteristic, it features thermal-magnetic technology for effective overload and short-circuit protection. This versatile device supports both AC and DC network types, operating across a wide range of rated operational voltages from 12V to 440V AC and up to 180V DC, compatible with 50/60 Hz frequencies. It offers significant breaking capacities, including 10000A (IEC/EN 60898-1) at 400V AC and 15kA (IEC/EN 60947-2) at 380-415V AC. Designed for 35mm DIN rail mounting, its IP20 degree of protection (IP40 in modular enclosures) ensures durability. The A9F85332 is ideal for diverse applications in Egypt and the Gulf region, commonly found in building services, water treatment plants, food and beverage processing, cement factories, and oil and gas facilities, safeguarding critical electrical infrastructure.
Details
- Brand: Schneider Electric
- Part number: A9F85332
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85432 — Miniature Circuit Breaker iC60H 4P 32A D Curve 10kA
- Schneider Electric A9F85440 — iC60H Miniature Circuit Breaker 4P 40A D-Curve
- Schneider Electric A9F85450 — Miniature Circuit Breaker Acti9 iC60H 4P 50A D-Curve
- Schneider Electric A9F85463 — Miniature Circuit Breaker, 4P, 63A, D curve, 10kA (IEC), 15kA (EN)
- Schneider Electric A9F88110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A B Curve
- Schneider Electric A9F88216 — Miniature Circuit Breaker, Acti9 iC60H, 2P, 16A, B curve
- Schneider Electric A9F88220 — Miniature circuit breaker, Acti9 iC60H, 2P, 20A, B Curve
Specifications
- Curve code
- D
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F85332
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
