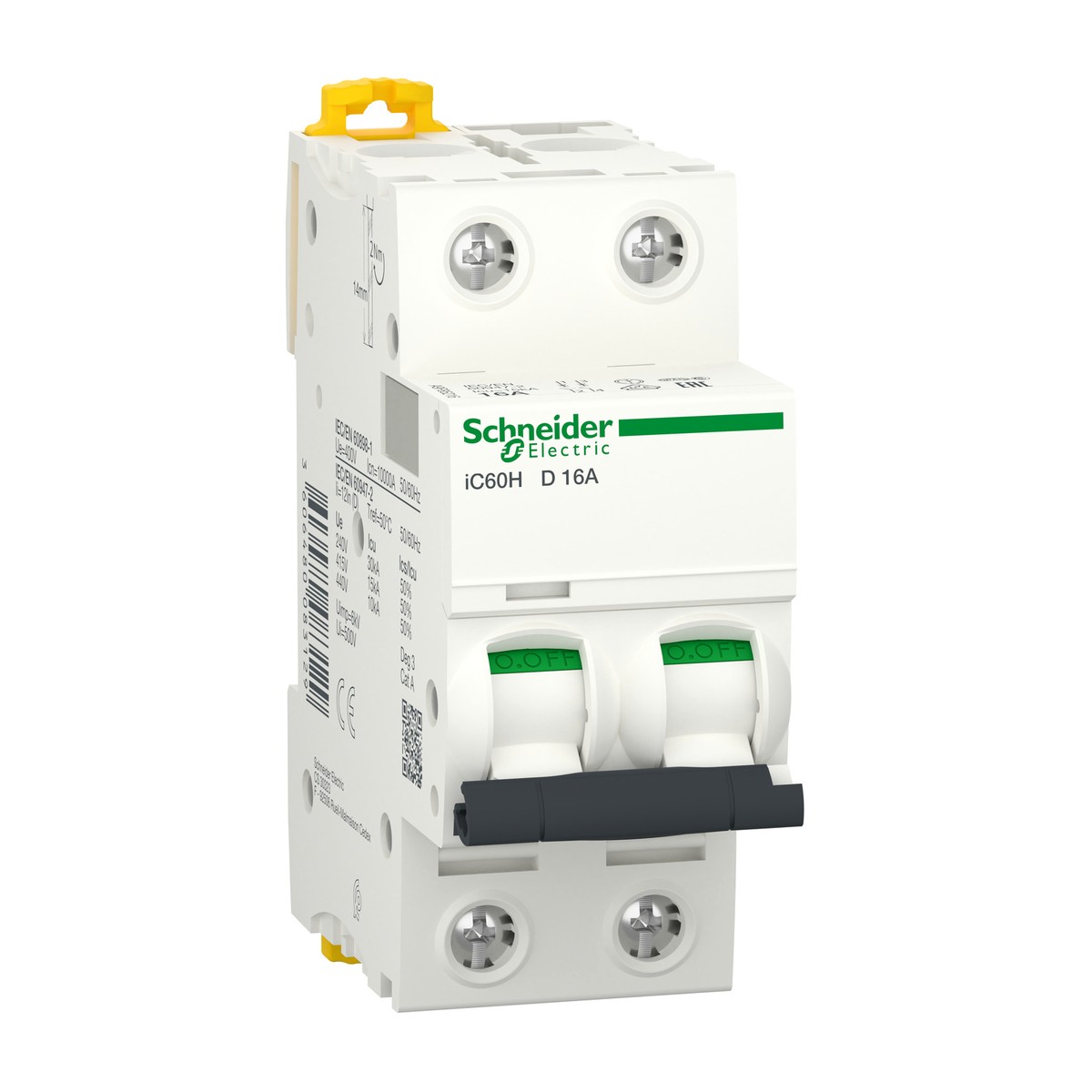

Schneider Electric A9F85216 Acti9 iC60H Miniature Circuit Breaker 2P 16A D-Curve. The Schneider Electric A9F85216 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. As a 2-pole (2P) device with a 16A rated current and a D-curve trip characteristic, it utilizes thermal-magnetic technology to safeguard against overloads and short circuits. This versatile MCB supports both AC and DC networks with a 50/60 Hz frequency, accommodating operational voltages from 12-440V AC and up to 125V DC, making it highly adaptable for various installations. Key breaking capacities include 10000A conforming to IEC/EN 60898-1 at 400V AC and 15kA conforming to IEC/EN 60947-2 at 380-415V AC. Engineered for a 35 mm DIN rail mounting, it features an IP20 protection degree and an operating temperature range of -35 to 70 °C. The Schneider Electric A9F85216 is an ideal choice for critical applications in Egypt and the Gulf's industrial sectors, including cement, oil and gas, water treatment, food and beverage, and commercial building services, where reliable circuit protection is paramount.
Details
- Brand: Schneider Electric
- Part number: A9F85216
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85220 — Miniature Circuit Breaker iC60H 2P 20A D-Curve
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
- Schneider Electric A9F85420 — Acti9 iC60H 4P 20A D-Curve Miniature Circuit Breaker
Specifications
- Curve code
- D
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- Rated current [In]
- 16 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- A9F85216
- Suitability for isolation
- Yes
- Terminal capacity (rigid)
- 1…25 mm²
- Terminal capacity (flexible)
- 1…16 mm²
- Rated operational voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
