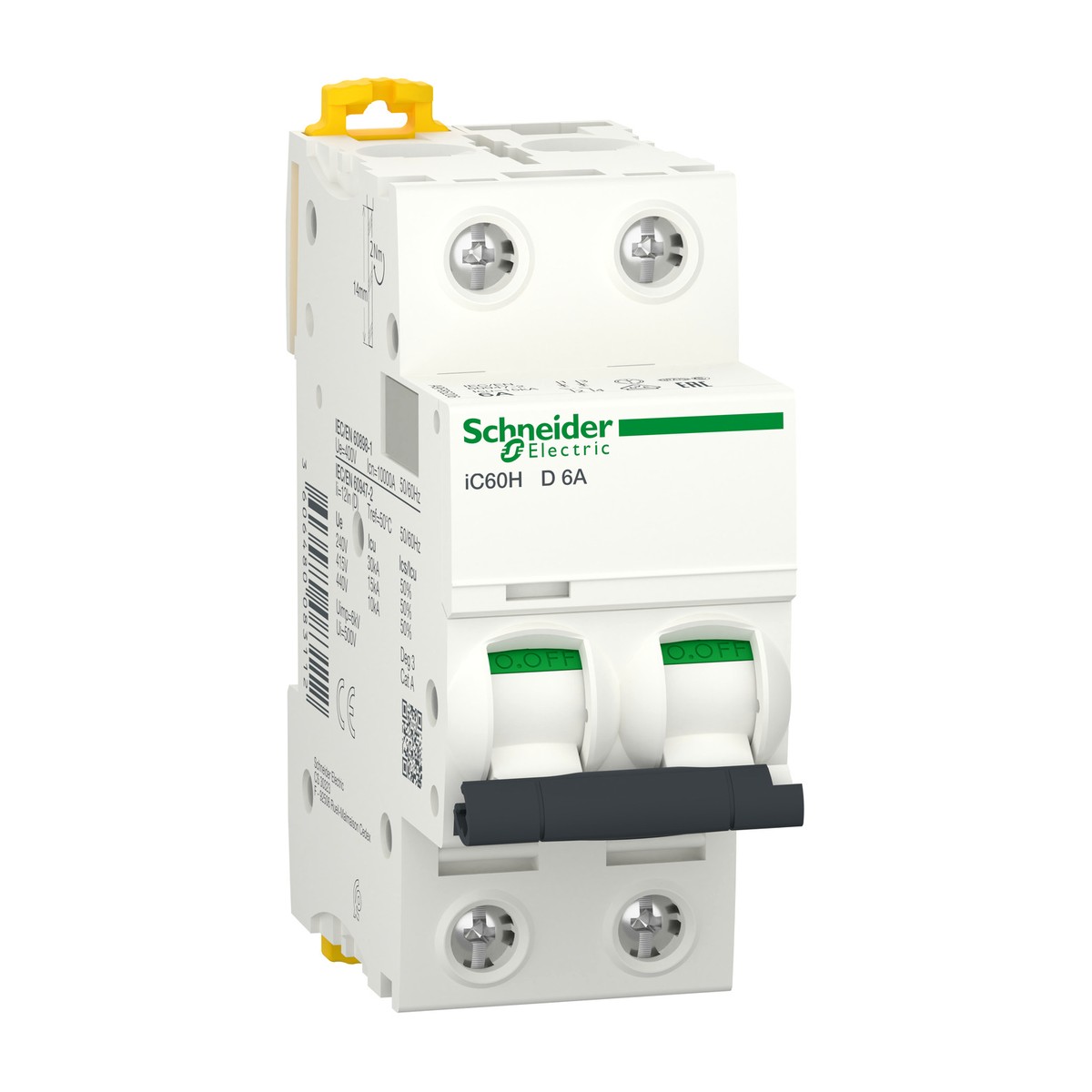

Schneider Electric A9F85206 Miniature Circuit Breaker iC60H 2P 6A D Curve. The Schneider Electric A9F85206 is a robust miniature circuit breaker (MCB) from the Acti9 iC60 series, engineered for reliable protection in final distribution circuits. This 2-pole, 6A D-curve thermal-magnetic MCB offers exceptional performance, featuring a breaking capacity of 10000A (IEC/EN 60898-1 at 400V AC) and 15kA (IEC/EN 60947-2 at 380-415V AC and <=125V DC). Designed to operate across a wide range of AC (12V to 440V) and DC (up to 125V) networks at 50/60 Hz, it ensures versatility for various electrical systems. The iC60H includes suitability for isolation and provides IP20 protection, making it ideal for installation on a 35mm DIN rail. With high mechanical and electrical durability, the Schneider Electric A9F85206 is a preferred choice for critical applications in Egypt and the Gulf, including industrial facilities like cement plants, oil and gas installations, water treatment plants, food and beverage processing, textiles, and commercial building services.
Details
- Brand: Schneider Electric
- Part number: A9F85206
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85210 — Miniature Circuit Breaker (MCB), 2P, 10A, D Curve
- Schneider Electric A9F85216 — Acti9 iC60H Miniature Circuit Breaker 2P 16A D-Curve
- Schneider Electric A9F85220 — Miniature Circuit Breaker iC60H 2P 20A D-Curve
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
Specifications
- Depth
- 78.5 mm
- Width
- 36 mm
- Height
- 85 mm
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper; 1…16 mm², flexible, copper; 1…16 mm², flexible with ferrule, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85206
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz, 15 KA Icu at <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
