A9F85210

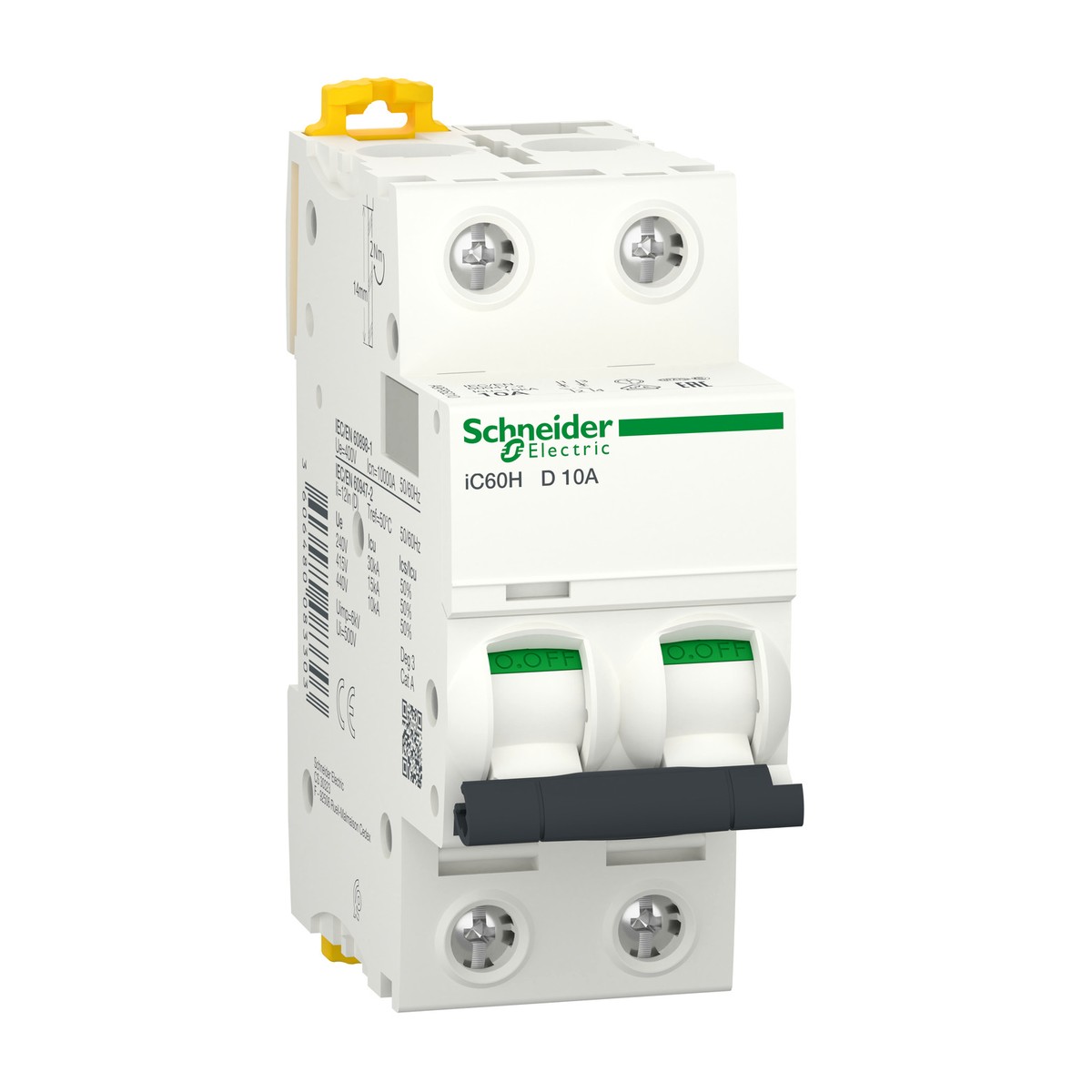

Schneider Electric A9F85210 Miniature Circuit Breaker (MCB), 2P, 10A, D Curve. The Schneider Electric A9F85210 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) engineered for reliable protection in final distribution circuits. This 2-pole, 10A, D-curve thermal-magnetic MCB ensures robust protection against overcurrents and short circuits for both AC and DC networks. It features a breaking capacity of 10000 A Icn at 400 V AC 50/60 Hz (EN/IEC 60898-1) and 15 kA Icu at 380-415 V AC 50/60 Hz (EN/IEC 60947-2) or <= 125 V DC. Suitable for isolation, the Schneider Electric A9F85210 offers broad operational voltage compatibility from 12 V AC up to 440 V AC and up to 125 V DC, making it highly versatile. Its DIN-rail mounting, IP20 degree of protection, and wide operating temperature range (-35…70 °C) ensure dependable operation in demanding environments. This robust MCB is ideal for applications in critical infrastructure across Egypt and the Gulf, including industrial distribution in cement plants, oil and gas facilities, water treatment plants, food and beverage processing, textiles, and commercial building services.
Details
- Brand: Schneider Electric
- Part number: A9F85210
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85216 — Acti9 iC60H Miniature Circuit Breaker 2P 16A D-Curve
- Schneider Electric A9F85220 — Miniature Circuit Breaker iC60H 2P 20A D-Curve
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
- Schneider Electric A9F85350 — Miniature Circuit Breaker Acti9 iC60H 3P 50A D Curve
- Schneider Electric A9F85406 — Miniature Circuit Breaker Acti9 iC60H 4P 6A D-Curve
- Schneider Electric A9F85410 — Miniature circuit breaker, 4P, 10A, D curve
- Schneider Electric A9F85416 — Acti9 iC60H Miniature Circuit Breaker 4P 16A D-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 10 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F85210
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
