A9F85202

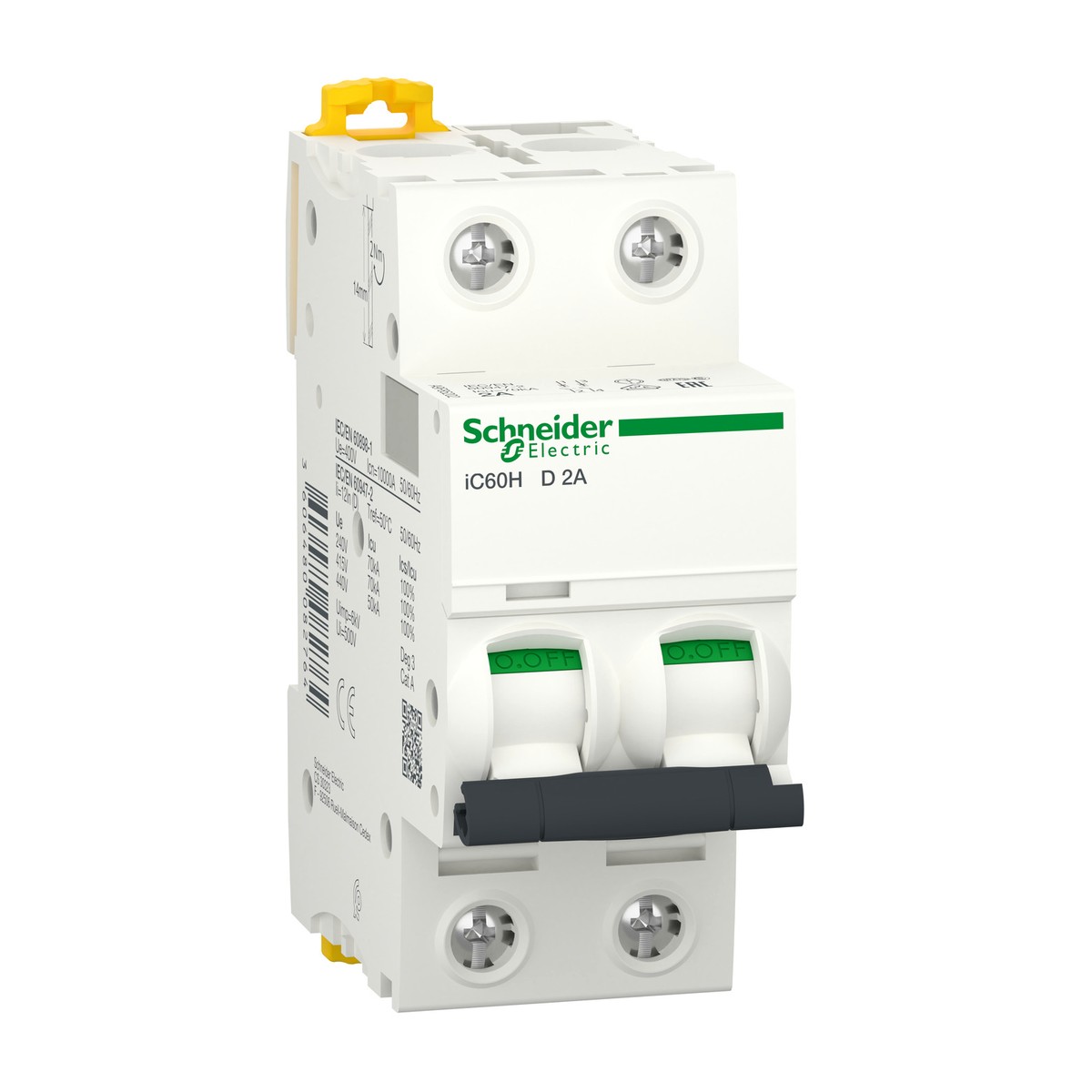

Schneider Electric A9F85202 Miniature Circuit Breaker, iC60H, 2P, 2A, D curve. The Schneider Electric A9F85202 Acti9 iC60H Miniature Circuit Breaker is a robust solution designed for the protection of final distribution circuits. This 2-pole (2P) MCB, with a 2A rated current and D-curve tripping characteristic, provides reliable thermal-magnetic protection against overcurrents and short circuits. Highly versatile, it is compatible with both AC (12-440V) and DC (up to 125V) networks, operating efficiently across 50/60 Hz frequencies, making it ideal for diverse power requirements in Egypt and the Gulf region. Featuring a high breaking capacity of 10kA (IEC/EN 60898-1 at 400V AC) and an impressive 70kA (IEC/EN 60947-2 at 220-415V AC), the A9F85202 delivers superior fault protection. Its DIN-rail mountable design, IP20 protection, and suitability for isolation make it a preferred choice for applications in critical sectors such as cement, oil and gas, water treatment, food and beverage, textiles, and general building services. For comprehensive circuit protection solutions, request a quote for the Schneider Electric A9F85202 today.
Details
- Brand: Schneider Electric
- Part number: A9F85202
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85203 — Miniature Circuit Breaker (MCB) iC60H 2P 3A D-Curve
- Schneider Electric A9F85204 — Miniature Circuit Breaker Acti9 iC60H 2P 4A D-Curve
- Schneider Electric A9F85206 — Miniature Circuit Breaker iC60H 2P 6A D Curve
- Schneider Electric A9F85210 — Miniature Circuit Breaker (MCB), 2P, 10A, D Curve
- Schneider Electric A9F85216 — Acti9 iC60H Miniature Circuit Breaker 2P 16A D-Curve
- Schneider Electric A9F85220 — Miniature Circuit Breaker iC60H 2P 20A D-Curve
- Schneider Electric A9F85232 — Miniature Circuit Breaker Acti9 iC60H 2P 32A D-curve
- Schneider Electric A9F85302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A D-curve
- Schneider Electric A9F85304 — Miniature Circuit Breaker (MCB) iC60H 3P 4A D-Curve
- Schneider Electric A9F85316 — Miniature Circuit Breaker Acti9 iC60H 3P 16A D-Curve
- Schneider Electric A9F85320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F85332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A D-Curve
Specifications
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Dimensions (H x W x D)
- 85 Mm x 36 Mm x 78.5 Mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F85202
- Suitability for isolation
- Yes
- Connections - terminals (rigid)
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- [Ue] rated operational voltage AC
- 12...133 V, 220...240 V, 380...415 V, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2) AC
- 70 KA Icu at 12...415 V AC 50/60 Hz, 50 KA Icu at 440 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2) DC
- 15 KA Icu at <= 125 V DC
