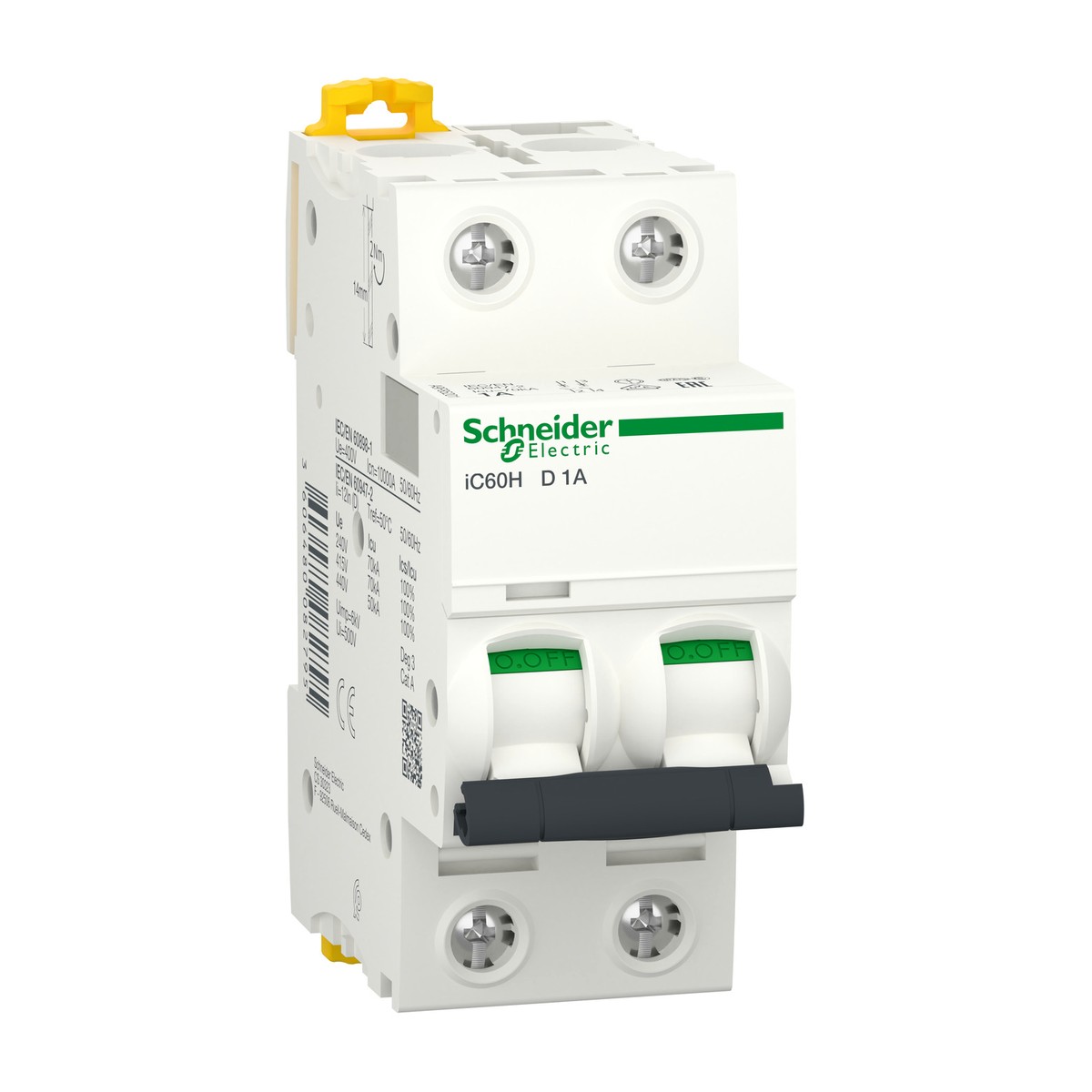

Schneider Electric A9F85201 iC60H Miniature Circuit Breaker, 2P, 1A, D curve. The Schneider Electric A9F85201 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) engineered for robust protection in final distribution circuits. This 2-pole (2P) MCB offers a precise 1A rated current with a D tripping curve, making it ideal for safeguarding circuits prone to high inrush currents. Compatible with both AC and DC networks, it delivers exceptional breaking capacity, including 70 kA Icu at 380-415 V AC 50/60 Hz (conforming to EN/IEC 60947-2) and 15 kA Icu at <=125 V DC, alongside 10000 A Icn at 400 V AC (conforming to EN/IEC 60898-1). Featuring reliable thermal-magnetic trip unit technology and suitability for isolation, the A9F85201 ensures comprehensive safety. It is designed for easy installation on a 35 mm DIN rail and operates effectively in ambient temperatures from -35 to 70 °C, boasting an IP20 degree of protection. This Schneider Electric MCB is a dependable choice for diverse applications in Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment plants, cement production, food and beverage processing, textiles, and general building services.
Details
- Brand: Schneider Electric
- Part number: A9F85201
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
