29450

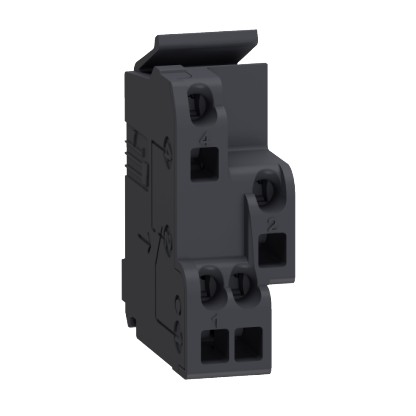

Schneider Electric 29450 Auxiliary Contact OF/SD/SDE/SDV, 1 C/O, Spring Terminals. It is a single standard auxiliary contact that provides all the different indications remotely for ComPact NSX, ComPact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for ComPact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14. Screwless connections with spring terminals provide a fast and reliable connection. The section of connected cables is between 0.5 mm² (AWG20) and 1.5 mm² (AWG16).
Details
- Brand: Schneider Electric
- Part number: 29450
- Series: Multi9 C60H
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- Schneider Electric LADN22 — TeSys Deca Auxiliary Contact Block 2NO + 2NC
- Schneider Electric LADN02 — TeSys D auxiliary contact block 2 NC screw-clamps
- Schneider Electric LADN04 — Auxiliary contact block, TeSys Deca, 4NC, front mounting, screw clamp
- Schneider Electric LADN11 — TeSys Deca Auxiliary Contact Block, 1NO + 1NC, Front Mounting, Screw Clamp Terminals
- Schneider Electric LADN20 — TeSys Deca Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals
- Schneider Electric LADN31 — Auxiliary contact block, 3NO + 1NC, front mounting, screw clamp terminals
- Schneider Electric LADN40 — TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals
- Schneider Electric LADN13 — Auxiliary Contact Block, TeSys Deca, 1NO + 3NC, Front Mount, Screw Clamp Terminals
- Schneider Electric ATV320D15N4C — Altivar Machine ATV320 Variable Speed Drive 15kW
- Schneider Electric ATV320U07N4C — variable speed drive ATV320 - 0.75kW - 380...500V - 3 phase - compact
- Schneider Electric ATV320U22N4B — variable speed drive, ATV320, 2.2 kW, 380… 500 V, 3 phases, book
- Schneider Electric ATV320U55N4B — Variable speed drive, Altivar Machine ATV320, 5.5 kW, 380-500 V, 3 phases
Specifications
- Minimum Load
- 100 mA at 24 V DC
- Terminal Type
- Screwless spring
- Contact Configuration
- 1 NO/NC
- Manufacturer part number
- 29450
- Conventional Free Air Thermal Current
- 5 A
