LADN22

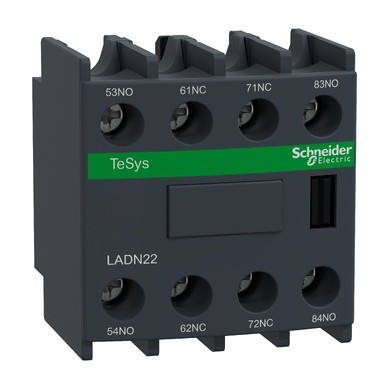

Schneider Electric LADN22 TeSys Deca Auxiliary Contact Block 2NO + 2NC. The current-product evidence is existing exact Schneider lifecycle certification.
Details
- Brand: Schneider Electric
- Part number: LADN22
- Series: TeSys Deca
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- TeSys Deca Contactor LC1D40M7
- Schneider Electric LC1D32M7 — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil
- TeSys Deca LC1D09B7 contactor 9 A AC-3 3P with 24 V AC 50/60 Hz coil
- TeSys Deca LC1D09BD contactor 9 A AC-3 3P with 24 V DC coil
- Schneider Electric TeSys Deca LC1D09BL contactor 9 A AC-3/3e 3P with 24 V DC low consumption coil
- TeSys Deca LC1D09E7 Contactor, 9A AC-3, 3P, 48V AC 50/60Hz Coil
- TeSys Deca LC1D09ED contactor 9A AC-3 3P with 48V DC coil
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
Specifications
- Depth
- 42 mm
- Width
- 44 mm
- Height
- 48 mm
- Mounting
- Front
- IP Rating
- IP20
- Terminals
- Screw clamp terminals
- Net weight
- 0.05 kg
- Rated current
- 6 A
- Tightening torque
- 1.7 N.m
- Operating altitude
- 3000 m
- Storage Temperature
- -60 to 80 °C
- Contact Configuration
- 2 NO + 2 NC
- Mechanical Durability
- 30 Mcycles
- Operating Temperature
- -5 to 60 °C
- Manufacturer part number
- LADN22
- Rated insulation voltage
- 690 V
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Rated operational voltage
- 690 V AC
- Conventional thermal current
- 10 A
