LADN02

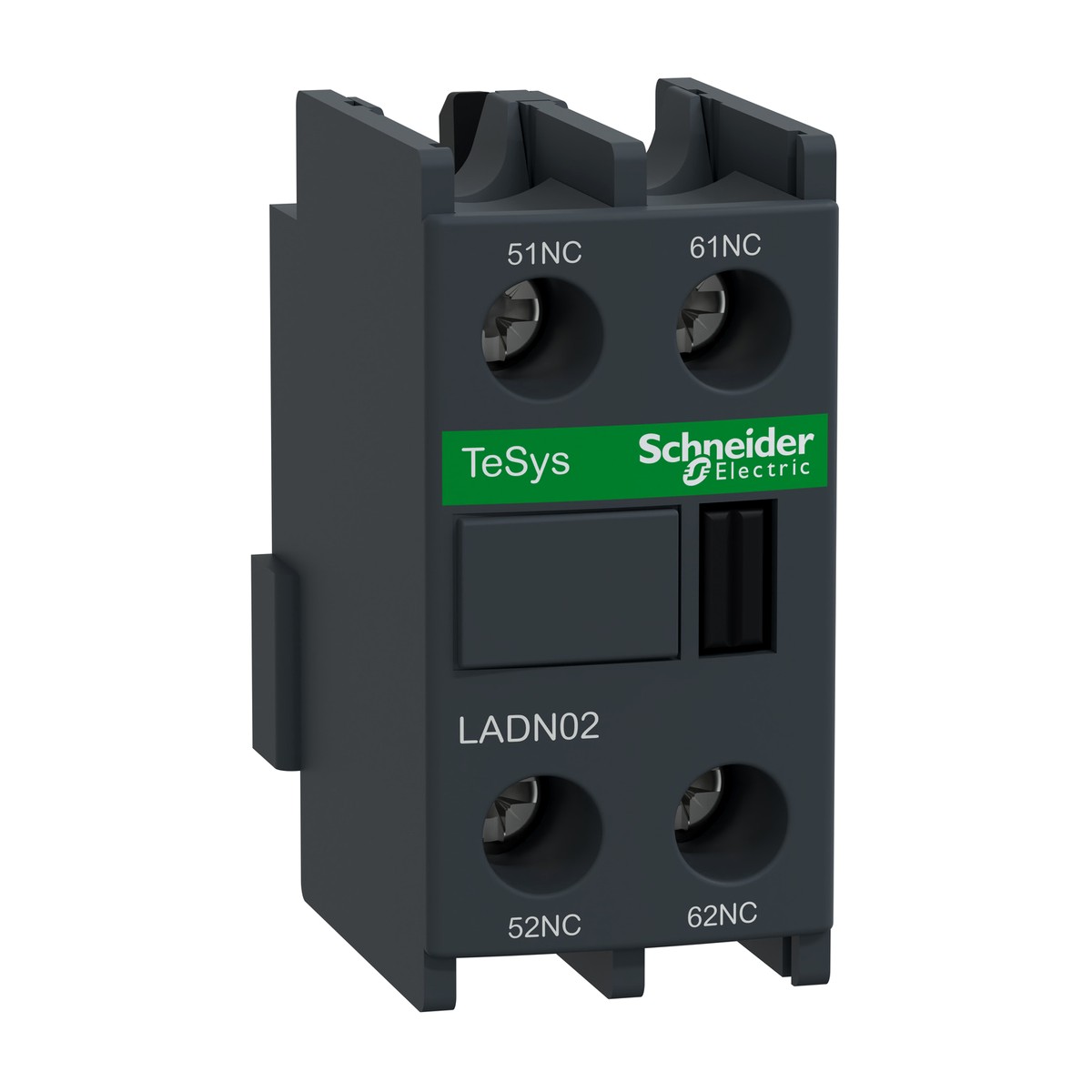

Schneider Electric LADN02 TeSys D auxiliary contact block 2 NC screw-clamps. The Schneider Electric LADN02 is an essential auxiliary contact block designed to enhance the functionality of your TeSys D contactors. This reliable component features a 2 NC (Normally Closed) pole contact composition, providing instantaneous operation for critical control applications. Engineered for front mounting, the LADN02 ensures straightforward installation via screw-clamp terminals, accommodating cable sizes from 1 to 2.5 mm² for both solid and flexible conductors. With a robust [Ue] rated operational voltage of 690 V AC (25...400 Hz) and a [Ith] conventional free air thermal current of 10 A at <= 60 °C, this block is built for demanding industrial environments. It boasts an IP2x degree of protection and impressive mechanical durability of 30 Mcycles, ensuring long-term performance and safety. The Schneider Electric LADN02 is a vital spare part for maintaining system integrity in various sectors across Egypt and the Gulf, including cement production, oil and gas, water treatment, food and beverage processing, textiles, and building services. Upgrade or repair your TeSys D contactor systems with this high-quality, compliant auxiliary contact block.
Details
- Brand: Schneider Electric
- Part number: LADN02
- Series: TeSys
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- TeSys K LC1K0601P7 Contactor 6A AC-3 3P 230V AC Coil
- TeSys K LC1K0601U7 contactor 3P AC-3/AC-3e 6A with 1NC aux. and 230-240V AC coil
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
- Schneider Electric LRD3355 — TeSys Deca thermal overload relay 30-40A Class 10A
- TeSys K LC1K0601B7 contactor, 6A AC-3, 3P, 24V AC coil, 1NC aux
- Schneider Electric TeSys K LC1K0601E7 contactor 6A AC-3/AC-3e 3P with 48V AC coil
- TeSys K LC1K0601F7 Contactor, 3P, 6A AC-3, 110V AC Coil, 1NC Aux.
- Schneider Electric LC1K0601M7 — TeSys K Contactor 3P 6A AC-3/AC-3e with 1NC 220-230V AC 50/60Hz coil
- TeSys K LC1K0601Q7 contactor 6 A AC-3 3P with 380-400 V AC coil 1NC
- TeSys K LC1K0610B7 Contactor, 3P, 6A (AC-3/AC-3e), 24V AC coil, 1NO Aux.
- TeSys K LC1K0610E7 contactor 3P 6A AC-3/AC-3e with 48V AC coil
- TeSys K LC1K0610F7 contactor 3P 6A AC-3/AC-3e with 110V AC coil
Specifications
- Standards
- IEC 60947-5-1
- Non-overlap time
- 1.5 ms on energisation (no overlap between NC and NO contact)
- Mounting location
- Front
- Operating altitude
- 3000 m without derating in temperature
- Mechanical durability
- 30 Mcycles
- Product compatibility
- CR1F
- Associated fuse rating
- 10 A gG IEC 60947-5-1
- Connections - terminals
- Screw clamp terminals 1...2.5 mm²
- IP degree of protection
- IP2x conforming to VDE 0106
- Manufacturer part number
- LADN02
- Pole contact composition
- 2 NC
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Product or component type
- Auxiliary contact block
- Irms rated making capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1
- Auxiliary contacts operation
- Instantaneous
- [Ui] rated insulation voltage
- 690 V - conforming to IEC 60947-5-1
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5...60 °C
- [Ith] conventional free air thermal current
- 10 A at <= 60 °C
