ATV320U22N4B

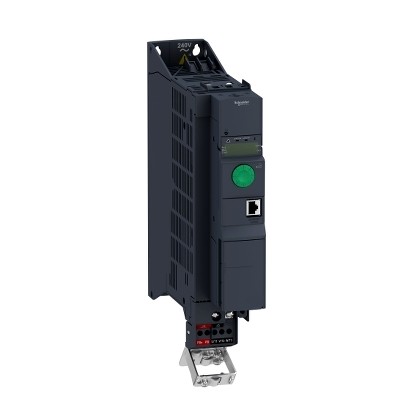

Schneider Electric ATV320U22N4B variable speed drive, ATV320, 2.2 kW, 380… 500 V, 3 phases, book. This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV320U22N4B
- Series: Altivar Machine ATV320
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV320U55N4B — Variable speed drive, Altivar Machine ATV320, 5.5 kW, 380-500 V, 3 phases
- Altivar Machine ATV320U40N4C variable speed drive 4 kW 380-500 V 3-phase compact
- Altivar Machine ATV320U75N4C variable speed drive 7.5 kW 380-500 V 3-phase compact
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D11N4B — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase
- Schneider Electric ATV320D11N4C — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Altivar Machine ATV320D15N4B Variable Speed Drive, 15kW, 380-500V, 3-phase
- Schneider Electric ATV320D22N4C — Altivar Machine ATV320 variable speed drive 22kW 400V 3 phases compact
- Schneider Electric ATV320U02M2B — Altivar Machine ATV320 Variable Speed Drive 0.18kW 1-Phase Book Format
- Schneider Electric ATV320U02M2C — ATV320 Compact Variable Speed Drive 0.18 kW 1-Phase 200-240V
- Schneider Electric ATV320U02M3C — Altivar Machine ATV320 Variable Speed Drive 0.18 kW 200-240 V 3-Phase Compact
Request a quote for ATV320U22N4B
Specifications
- Width
- 60 mm
- Height
- 325.0 mm
- EMC filter
- Class C2
- Motor power
- 2.2 kW
- IP protection
- IP20
- Rated supply voltage
- 380...500 V
- Nominal output current
- 5.5 A
- Manufacturer part number
- ATV320U22N4B
- Maximum output frequency
- 0.599 kHz
- Nominal switching frequency
- 4 kHz
