ATV320U75N4C

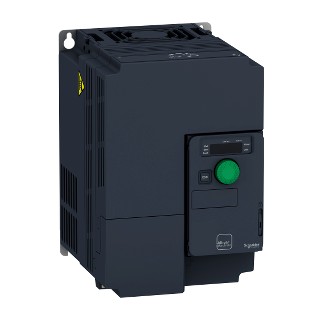

Schneider Electric ATV320U75N4C Altivar Machine variable speed drive 7.5 kW 380-500 V 3-phase compact. The Schneider Electric ATV320U75N4C is a compact variable speed drive in the Altivar Machine ATV320 range, rated 7.5 kW for heavy duty (10.0 hp) with a stated power range of 7.5...11 kW on a 380...500 V, 3-phase, 50...60 Hz supply. In heavy duty the ATV320U75N4C draws 25.5 A line current at 380 V and delivers 17.0 A continuous output current at 4 kHz, with 0.1...599 Hz output frequency and a switching frequency adjustable between 2 and 16 kHz. Control laws include sensorless flux vector control, 2-point and 5-point V/f, quadratic U/f energy saving and vector control without sensor for synchronous motors. It carries an integrated Class C2 EMC filter, IP20 protection to IEC 61800-5-1, UL type 1 with conformity kit, and integrated STO SIL 3 safety. Typical duties are conveyors and crushers in cement plants, process pumps in water and wastewater stations, textile lines, and large air-handling fans in HVAC systems.
Details
- Brand: Schneider Electric
- Part number: ATV320U75N4C
- Series: Altivar Machine ATV320
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D11N4B — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase
- Schneider Electric ATV320D11N4C — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Altivar Machine ATV320D15N4B Variable Speed Drive, 15kW, 380-500V, 3-phase
- Schneider Electric ATV320D22N4C — Altivar Machine ATV320 variable speed drive 22kW 400V 3 phases compact
- Schneider Electric ATV320U02M2B — Altivar Machine ATV320 Variable Speed Drive 0.18kW 1-Phase Book Format
- Schneider Electric ATV320U02M2C — ATV320 Compact Variable Speed Drive 0.18 kW 1-Phase 200-240V
- Schneider Electric ATV320U02M3C — Altivar Machine ATV320 Variable Speed Drive 0.18 kW 200-240 V 3-Phase Compact
- Schneider Electric ATV320U04M2B — Altivar Machine ATV320 Variable Speed Drive 0.37kW 200-240V 1-phase Book Format
- Schneider Electric ATV320U04M2C — Variable Speed Drive, 0.37 kW, 200-240V, 1 Phase, Compact
- Schneider Electric ATV320U04M3C — Variable Speed Drive, 0.37kW, 200-240V, 3-Phase, Compact
Request a quote for ATV320U75N4C
Specifications
- EMC filter
- Class C2 EMC filter integrated
- Net weight
- 3.6 kg
- Power range
- 7.5...11 kW at 380…500 V, 3 phases (based on load duty)
- Line current
- 25.5 A at 380 V (heavy duty) / 19.6 A at 500 V (heavy duty)
- Apparent power
- 17.0 kVA at 500 V (heavy duty)
- Motor power hp
- 10.0 hp for heavy duty
- Motor power kW
- 7.5 kW for heavy duty
- Safety function
- STO (safe torque off) SIL 3, SS1, SLS, SMS, GDL
- Range of product
- Altivar Machine ATV320
- Supply frequency
- 50...60 Hz - 5...5 %
- Switching frequency
- 2...16 kHz adjustable
- Degree of protection
- UL type 1 (with conformity kit)
- Dimensions (W x H x D)
- 150.0 mm x 232.0 mm x 178.0 mm
- IP degree of protection
- IP20 conforming to IEC 61800-5-1; IP20 conforming to IEC 60529
- Manufacturer part number
- ATV320U75N4C
- Network number of phases
- 3 phases
- Continuous output current
- 17.0 A at 4 kHz for heavy duty
- Maximum transient current
- 25.5 A during 60 s (heavy duty)
- Product or component type
- Variable speed drive
- [Us] rated supply voltage
- 380...500 V - 15...10 %
- Communication port protocol
- Modbus serial, CANopen
- Format of the control block
- Compact
- Speed drive output frequency
- 0.1…599 Hz
- Ambient air temperature for operation
- -10…50 °C without derating
