LADN13

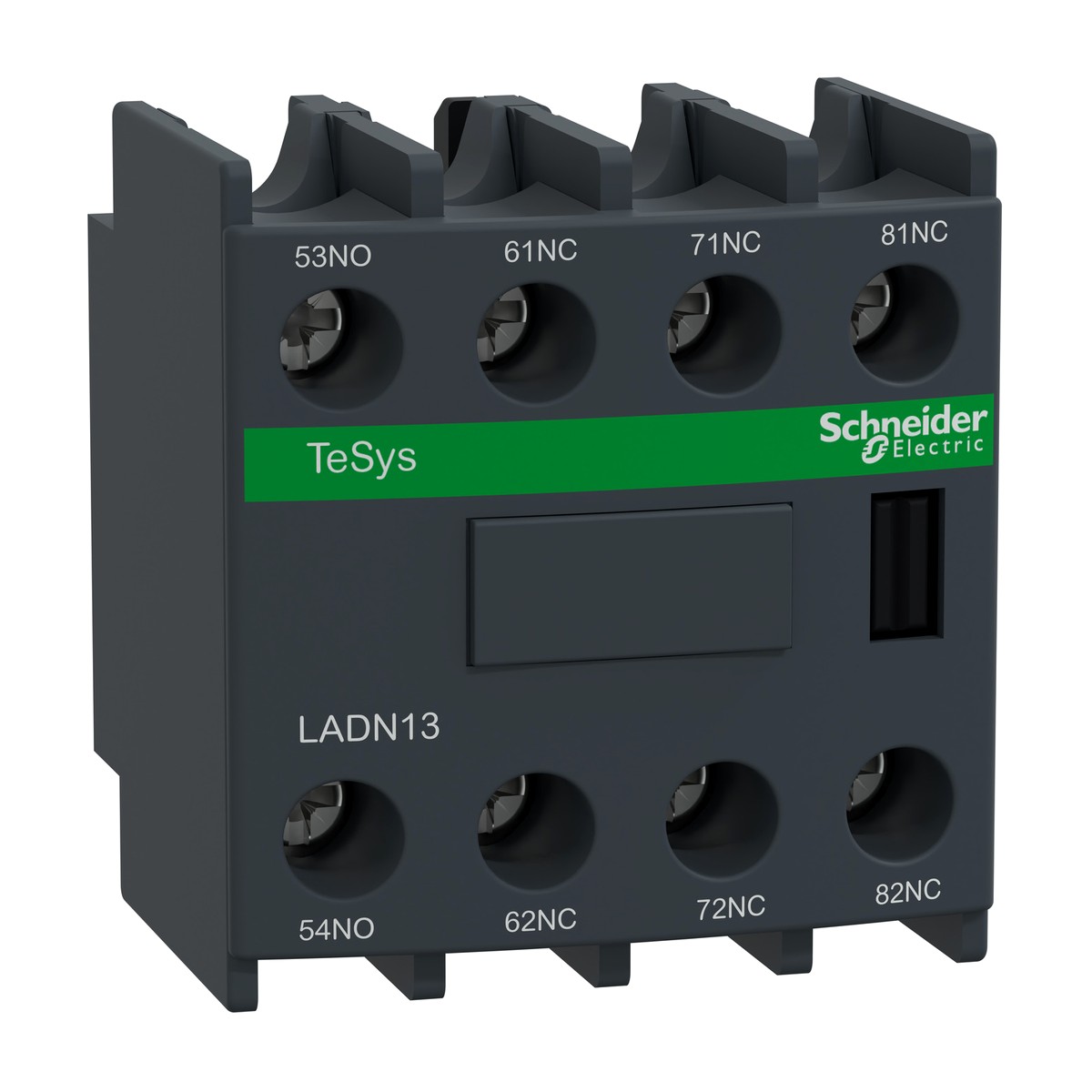

Schneider Electric LADN13 Auxiliary Contact Block, TeSys Deca, 1NO + 3NC, Front Mount, Screw Clamp Terminals. The Schneider Electric LADN13 is a crucial auxiliary contact block designed for reliable performance in industrial control systems. As part of the TeSys Deca range, this front-mounting unit easily integrates with popular TeSys D CAD, TeSys D LC1D, TeSys F LC1F, and TeSys F CR1F contactors. It features a versatile 1 NO + 3 NC pole contact composition with instantaneous operation, providing essential signaling and interlocking capabilities. Equipped with secure screw clamp terminals, the LADN13 offers operational current ratings up to 6 A at 120 V AC-15 and 0.1 A at 600 V DC-13, with a rated insulation voltage of 690 V. Its robust design is reflected in an IP20 protection rating and a wide operating temperature range of -5 to 60 °C, ensuring dependable performance in demanding environments. This Schneider Electric LADN13 is ideal for enhancing control circuits in various Egyptian and Gulf industrial sectors, including water treatment, oil and gas, cement production, and food and beverage, providing critical status indication and control for motors and machinery.
Details
- Brand: Schneider Electric
- Part number: LADN13
- Series: TeSys Deca
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- Schneider Electric GV2L04 — TeSys GV2L Motor Circuit Breaker 3P 0.63A Magnetic Rotary Handle Screw Clamp Terminals
- Schneider Electric GV2L05 — TeSys Deca GV2L motor circuit breaker 3P 1A magnetic rotary handle screw clamp
- Schneider Electric GV2L06 — Motor circuit breaker 3P 1.6A magnetic rotary handle screw clamp terminals
- Schneider Electric GV2L07 — TeSys GV2L Motor Circuit Breaker 3P 2.5A Magnetic Rotary Handle
- Schneider Electric GV2L08 — TeSys Deca GV2L motor circuit breaker 3P 4A magnetic rotary handle screw clamp
- Schneider Electric GV2L10 — TeSys Deca Motor Circuit Breaker, 3P, 6.3A, Magnetic, Rotary Handle, Screw Clamp Terminals
- Schneider Electric GV2L14 — TeSys GV2L Motor Circuit Breaker 3P 10A Magnetic Rotary Handle
- TeSys GV2L16 motor circuit breaker 14A 3P magnetic rotary handle
- Schneider Electric GV2L20 — TeSys Deca GV2L motor circuit breaker 3P 18A magnetic rotary handle
- Schneider Electric GV2L22 — TeSys GV2L Motor Circuit Breaker 3P 25A Magnetic Rotary Handle Screw Clamp
- Schneider Electric GV2L32 — TeSys GV2L Motor Circuit Breaker, 3P 32A Magnetic, Rotary Handle, Screw Clamp
- TeSys Deca GV3 motor circuit breaker GV3P13 13 A
Specifications
- Depth
- 42 Mm
- Width
- 44 Mm
- Height
- 48 Mm
- Standards
- EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1
- Net weight
- 0.05 Kg
- Protection type
- GG fuse 10 A
- Mounting location
- Front
- Mechanical durability
- 30 Mcycles
- Product certifications
- CB Scheme; UL; CSA; CCC; EAC; UKCA
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LADN13
- Pole contact composition
- 1 NO + 3 NC
- Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- Auxiliary contacts operation
- Instantaneous
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- [Ie] rated operational current
- 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5…60 °C
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
