GV3P13

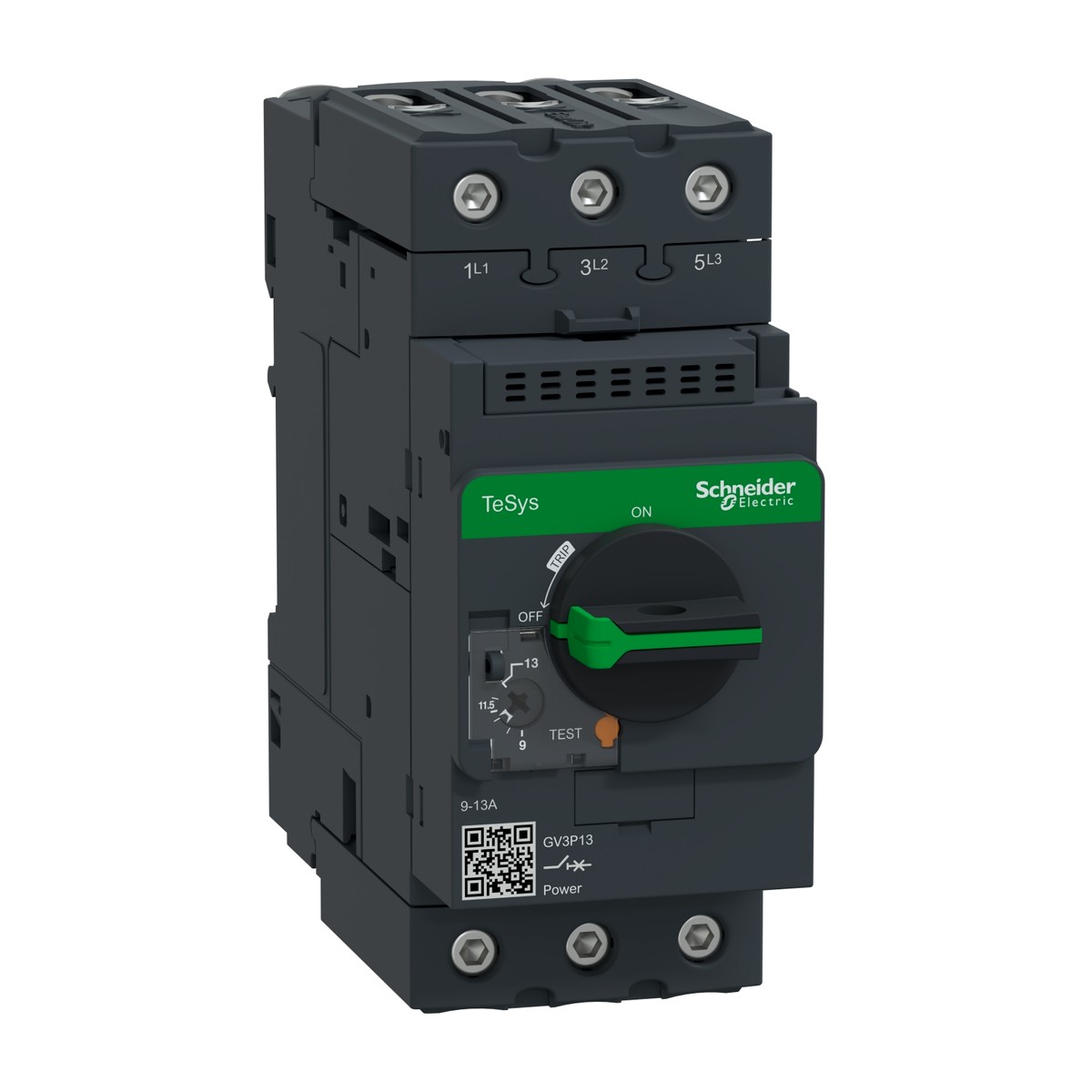

Schneider Electric GV3P13 TeSys Deca GV3 motor circuit breaker 13 A. The Schneider Electric GV3P13 is a robust 3-pole thermal-magnetic motor circuit breaker from the TeSys Deca range, engineered for reliable motor protection in demanding industrial environments. Designed for AC networks operating at 50/60 Hz, this GV3P13 unit provides a rated current of 13 A with a thermal protection adjustment range of 9 to 13 A. Its high breaking capacity, notably 100 kA Icu at 400/415 V AC, ensures superior fault protection, while it supports motor power up to 5.5 kW at 400/415 V. Featuring a user-friendly rotary handle and EverLink terminals for secure wiring, this device also offers phase failure sensitivity and suitability for isolation. It is an excellent choice for critical applications in Egypt and the Gulf, including motor control in cement plants, oil and gas facilities, water treatment, food and beverage production, textile manufacturing, and building services.
Details
- Brand: Schneider Electric
- Part number: GV3P13
- Series: TeSys Deca
- Category: Motor circuit breaker
Related Schneider Electric parts
- TeSys Deca GV3P18 motor circuit breaker 18 A 3P
- Schneider Electric GV3P25 — TeSys GV3P Motor Circuit Breaker, 3P, 17-25A Thermal-Magnetic, EverLink Terminals
- TeSys GV3 Motor Circuit Breaker GV3P32
- Schneider Electric GV3P50 — TeSys GV3 Motor Circuit Breaker 3P 37-50A Thermal Magnetic
- Schneider Electric GV3P65 — TeSys Deca GV3 Motor Circuit Breaker 65 A
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
Specifications
- Depth
- 136 mm
- Width
- 55 mm
- Height
- 132 mm
- Control type
- Rotary handle
- Network type
- AC
- Product weight
- 0.96 kg
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 5 N.m - on screw clamp terminal
- [In] rated current
- 13 A
- IP degree of protection
- IP20
- Manufacturer part number
- GV3P13
- Magnetic tripping current
- 182 A
- Phase failure sensitivity
- Yes conforming to IEC 60947-4-1
- Suitability for isolation
- Yes conforming to IEC 60947-1
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Thermal protection adjustment range
- 9…13 A
- Ambient air temperature for operation
- -20…60 °C
- Motor power kW (at 400/415 V AC 50/60 Hz)
- 5.5 kW
- Breaking capacity (at 400/415 V AC 50/60 Hz)
- 100 kA Icu
