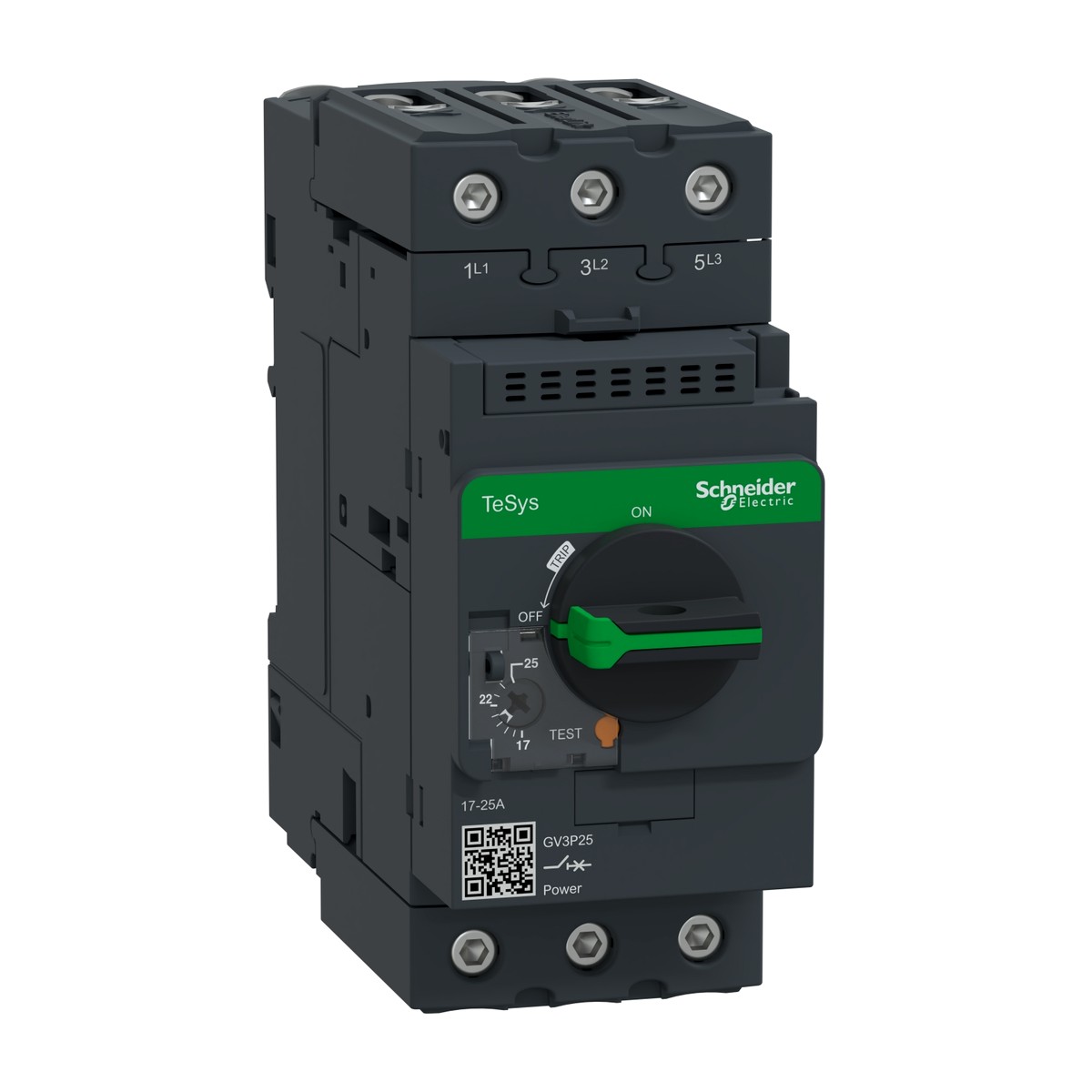

GV3P25
Schneider Electric GV3P25 TeSys GV3P Motor Circuit Breaker, 3P, 17-25A Thermal-Magnetic, EverLink Terminals. The Schneider Electric GV3P25 is a robust 3-pole motor circuit breaker from the TeSys Deca range, engineered for superior motor protection in medium and large applications. This thermal-magnetic breaker offers an adjustable thermal protection range of 17-25 A, with a rated current of 25 A and a magnetic tripping current of 350 A, ensuring reliable overload and short-circuit protection. Designed for 50/60 Hz AC networks, it’s perfectly suited for typical Egyptian and Gulf electrical systems, supporting 11 kW motors at 400/415 V AC. Its impressive 100 KA Icu breaking capacity at 400/415 V AC provides critical safety for industrial operations. Featuring EverLink terminals for secure connections and a rotary handle for intuitive control, the GV3P25 is a dependable choice. This unit is ideal for diverse sectors in the region, including oil and gas, cement, water treatment, food and beverage, textiles, and building services. With IP20 protection and operational stability in temperatures from -20 to 60 °C, the Schneider Electric GV3P25 offers durability and peace of mind.
Details
- Brand: Schneider Electric
- Part number: GV3P25
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- TeSys GV3 Motor Circuit Breaker GV3P32
- Schneider Electric GV3P50 — TeSys GV3 Motor Circuit Breaker 3P 37-50A Thermal Magnetic
- Schneider Electric GV3P65 — TeSys Deca GV3 Motor Circuit Breaker 65 A
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
- Schneider Electric LC1D093BL — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals
Specifications
- Depth
- 136 Mm
- Width
- 55 Mm
- Height
- 132 Mm
- Terminals
- EverLink
- Net weight
- 0.96 Kg
- Control type
- Rotary handle
- Mounting mode
- DIN rail / Panel
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Rated current [In]
- 25 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- GV3P25
- Magnetic tripping current
- 350 A
- Rated operational voltage [Ue]
- 690 V AC 50/60 Hz
- Motor power kW (at 400/415 V AC)
- 11 KW
- Thermal protection adjustment range
- 17…25 A
- Ambient air temperature for operation
- -20…60 °C
- Breaking capacity [Icu] (at 400/415 V AC)
- 100 KA
