GV3P50

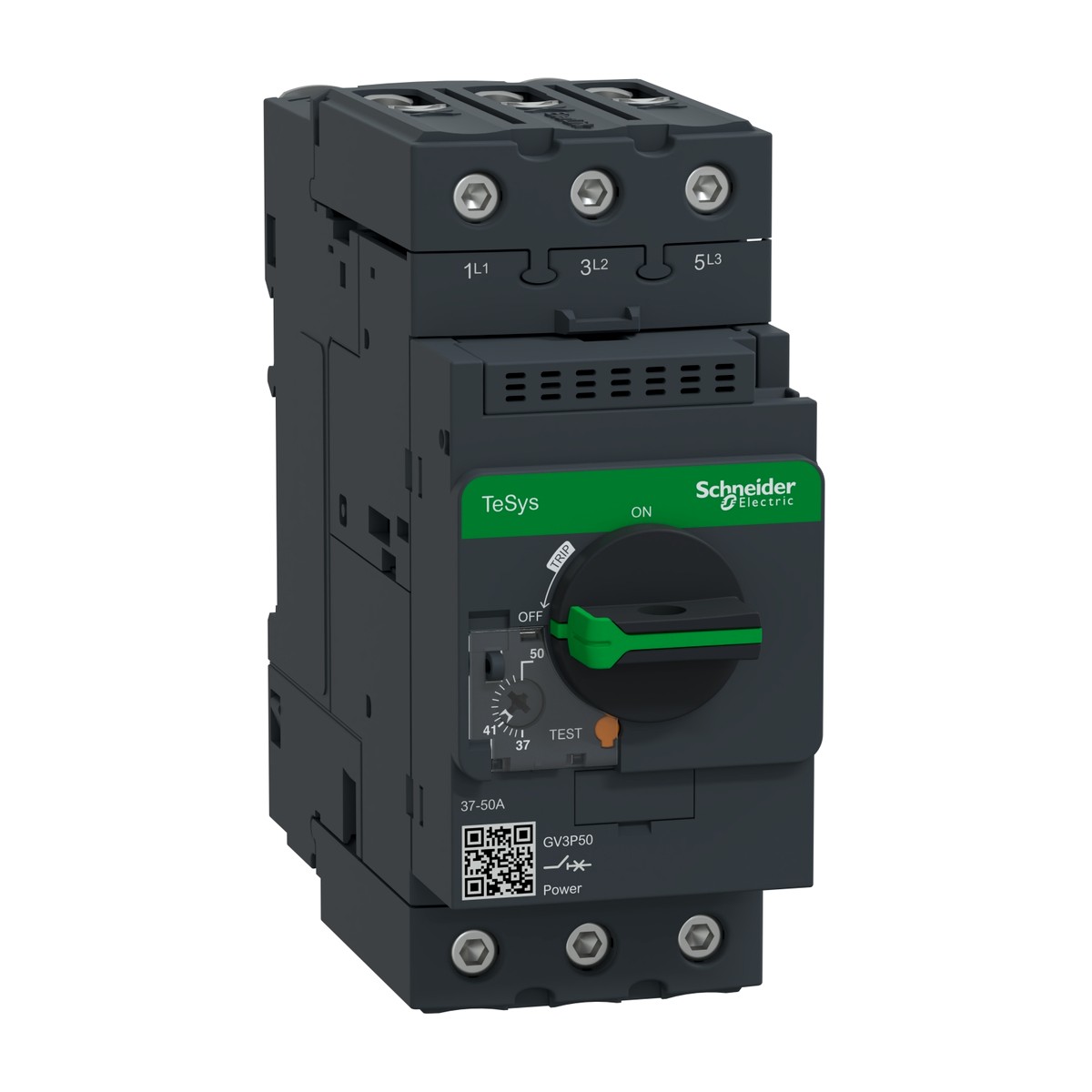

Schneider Electric GV3P50 TeSys GV3 Motor Circuit Breaker 3P 37-50A Thermal Magnetic. The Schneider Electric GV3P50 motor circuit breaker, part of the robust TeSys Deca range, offers essential thermal-magnetic protection for medium to large AC motors. Designed as a 3-pole device, it features an adjustable thermal protection range of 37 to 50 A, with a rated current of 50 A and a magnetic tripping current of 700 A. This GV3P50 is engineered for reliable operation on 50/60 Hz networks, accommodating operational voltages up to 690 V AC. It efficiently protects 22 kW motors at 400/415 V AC, boasting a breaking capacity of 50 KA Icu at 400/415 V AC, making it suitable for demanding industrial environments. Control is managed via a convenient rotary handle, and installation is flexible, allowing for either 35 mm symmetrical DIN rail clipping or panel mounting with screws. With an IP20 protection rating and EverLink terminals, the GV3P50 ensures secure and durable connections. This product is ideal for critical applications across Egypt and the Gulf region, including motor protection in oil and gas, water treatment, cement production, food and beverage processing, and various building services, where uninterrupted motor operation and safety are paramount.
Details
- Brand: Schneider Electric
- Part number: GV3P50
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV3P65 — TeSys Deca GV3 Motor Circuit Breaker 65 A
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
- Schneider Electric LC1D093BL — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals
- Schneider Electric LC1D093E7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093ED — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V DC coil, spring terminals
Specifications
- Depth
- 136 Mm
- Width
- 55 Mm
- Height
- 132 Mm
- Net weight
- 0.96 Kg
- Fixing mode
- 35 mm symmetrical DIN rail: clipped; Panel: screwed (with 3 x M4 screws)
- Control type
- Rotary handle
- Network type
- AC
- Network frequency
- 50/60 Hz conforming to IEC 60947-2
- Poles description
- 3P
- [In] rated current
- 50 A
- Product certifications
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register)
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV3P50
- Magnetic tripping current
- 700 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Motor power kW (at 400/415V AC)
- 22 KW at 400/415 V AC 50/60 Hz
- Breaking capacity (at 400/415V AC)
- 50 KA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
- Thermal protection adjustment range
- 37…50 A conforming to IEC 60947-2
- Ambient air temperature for operation
- -20…60 °C
