GV3P80

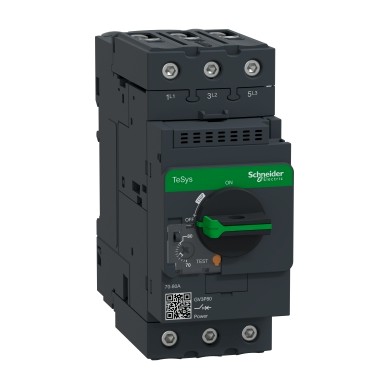

Schneider Electric GV3P80 TeSys Motor Circuit Breaker 80 A 3P Thermal-Magnetic. The Schneider Electric GV3P80 is a robust 3-pole TeSys GV3 motor circuit breaker designed for comprehensive motor protection in medium and large motor applications. With a rated current of 80 A and a thermal protection adjustment range of 70…80 A, it effectively safeguards motors up to 45 kW at 400/415 V AC. This device features thermal-magnetic trip unit technology, ensuring high breaking capacity, with a notable 50 kA Icu at 400/415 V AC. Its rotary handle provides intuitive control, while EverLink terminals offer secure and reliable connections. Suitable for various industrial environments, the GV3P80 boasts an IP20 and IK09 degree of protection. It is an ideal solution for critical operations in diverse sectors across Egypt and the Gulf, including cement production, oil and gas, water treatment facilities, food and beverage processing, textiles, and building services. Its proven reliability and adherence to EN/IEC 60947 standards make it a dependable choice. Please request a quote for the Schneider Electric GV3P80 to secure this essential motor protection component.
Details
- Brand: Schneider Electric
- Part number: GV3P80
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
- Schneider Electric LC1D093BL — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals
- Schneider Electric LC1D093E7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093ED — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V DC coil, spring terminals
- Schneider Electric LC1D093F7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 110V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093FD — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 110V DC coil, spring terminals
- Schneider Electric LC1D093FE7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 115V AC 50/60Hz coil, spring terminals
Specifications
- Depth
- 136 mm
- Width
- 55 mm
- Height
- 132 mm
- Standards
- EN/IEC 606947-2, EN/IEC 60947-4-1
- Control type
- Rotary handle
- Network type
- AC
- Product type
- Motor circuit breaker
- Motor power kW
- 45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A
- Product weight
- 0.96 kg
- Breaking capacity
- 50 kA Icu at 400/415 V AC 50/60 Hz
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 80 A
- Electrical durability
- 20000 cycles for AC-3 at 415 V In
- Mechanical durability
- 50000 cycles
- IK degree of protection
- IK09 enclosure
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV3P80
- Magnetic tripping current
- 1120 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Thermal protection adjustment range
- 70…80 A conforming to IEC 60947-2
- Ambient air temperature for operation
- -20…60 °C
