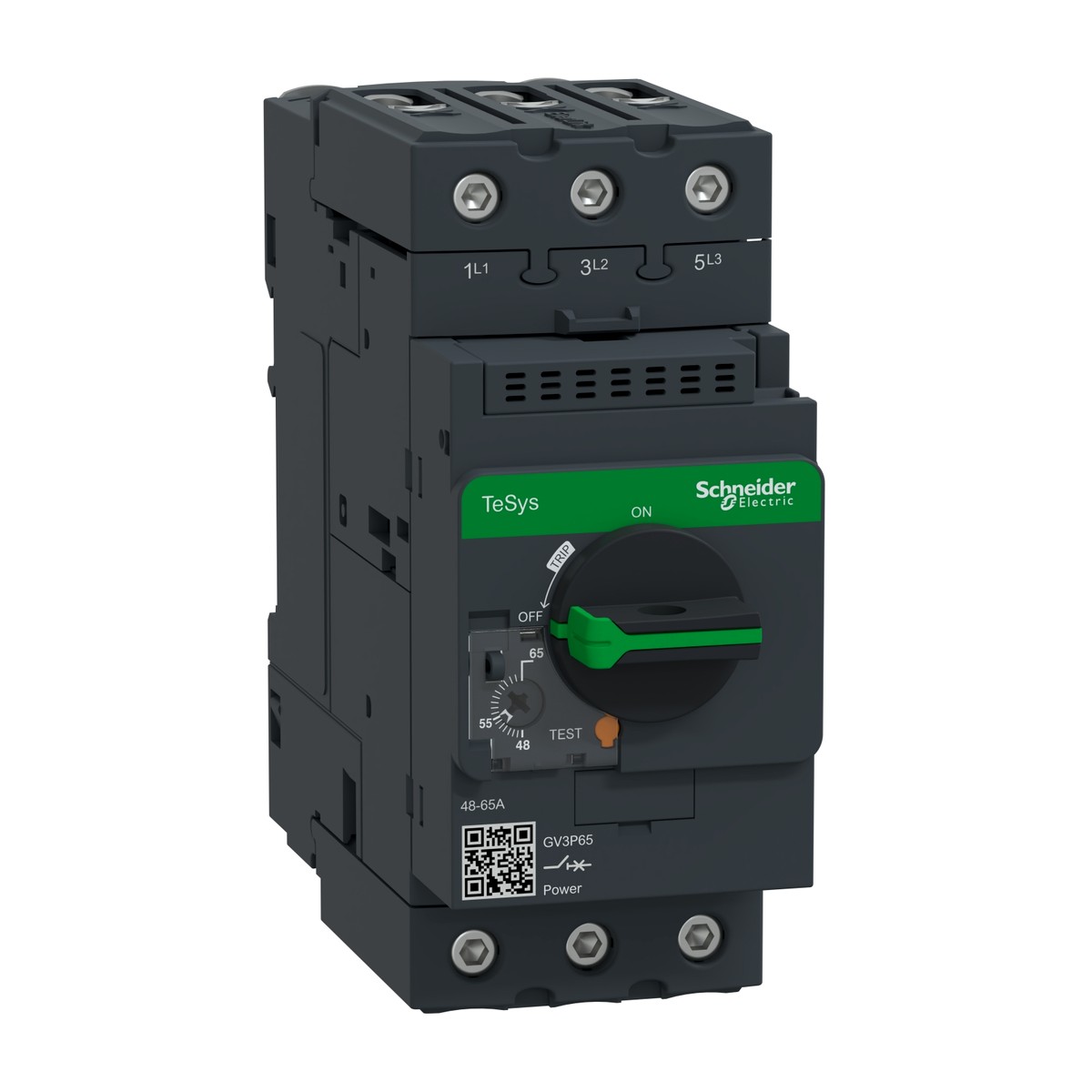

GV3P65
Schneider Electric GV3P65 TeSys Deca GV3 Motor Circuit Breaker 65 A. The Schneider Electric GV3P65 is a robust 3-pole TeSys GV3 motor circuit breaker from the TeSys Deca range, engineered for reliable motor protection in industrial environments. This thermal-magnetic protection device is designed to safeguard medium and large AC motors up to 65 A, featuring a high breaking capacity of 50 kA at 400/415 V AC 50/60 Hz. With a thermal protection adjustment range of 48 to 65 A and a rated operational voltage up to 690 V, it provides comprehensive overload and short-circuit protection, including phase failure sensitivity. Equipped with a user-friendly rotary handle and secure EverLink terminals, the GV3P65 ensures safe and efficient operation. Its compact design (55 mm width) allows for versatile mounting on both DIN rail and panels. This breaker is ideal for demanding applications across the Middle East and Gulf regions, commonly found in critical sectors such as oil and gas, water treatment, cement manufacturing, food and beverage processing, textiles, and building services. For comprehensive motor control and protection solutions, request a quote for the Schneider Electric GV3P65 today.
Details
- Brand: Schneider Electric
- Part number: GV3P65
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
- Schneider Electric LC1D093BL — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals
- Schneider Electric LC1D093E7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093ED — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V DC coil, spring terminals
- Schneider Electric LC1D093F7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 110V AC 50/60Hz coil, spring terminals
Specifications
- Depth
- 136 mm
- Width
- 55 mm
- Height
- 132 mm
- Control type
- Rotary handle
- Network type
- AC
- Mounting mode
- DIN rail / Panel mounted
- Motor power kW
- 30 kW at 400/415 V AC 50/60 Hz
- Product weight
- 0.96 kg
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Rated current (In)
- 65 A
- Breaking capacity (Icu)
- 50 kA at 400/415 V AC 50/60 Hz
- IK degree of protection
- IK09 enclosure
- IP degree of protection
- IP20
- Manufacturer part number
- GV3P65
- Phase failure sensitivity
- Yes
- Suitability for isolation
- Yes
- Rated operational voltage (Ue)
- 690 V AC 50/60 Hz
- Thermal protection adjustment range
- 48…65 A
